Timing Belt: Components

WARNING: This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

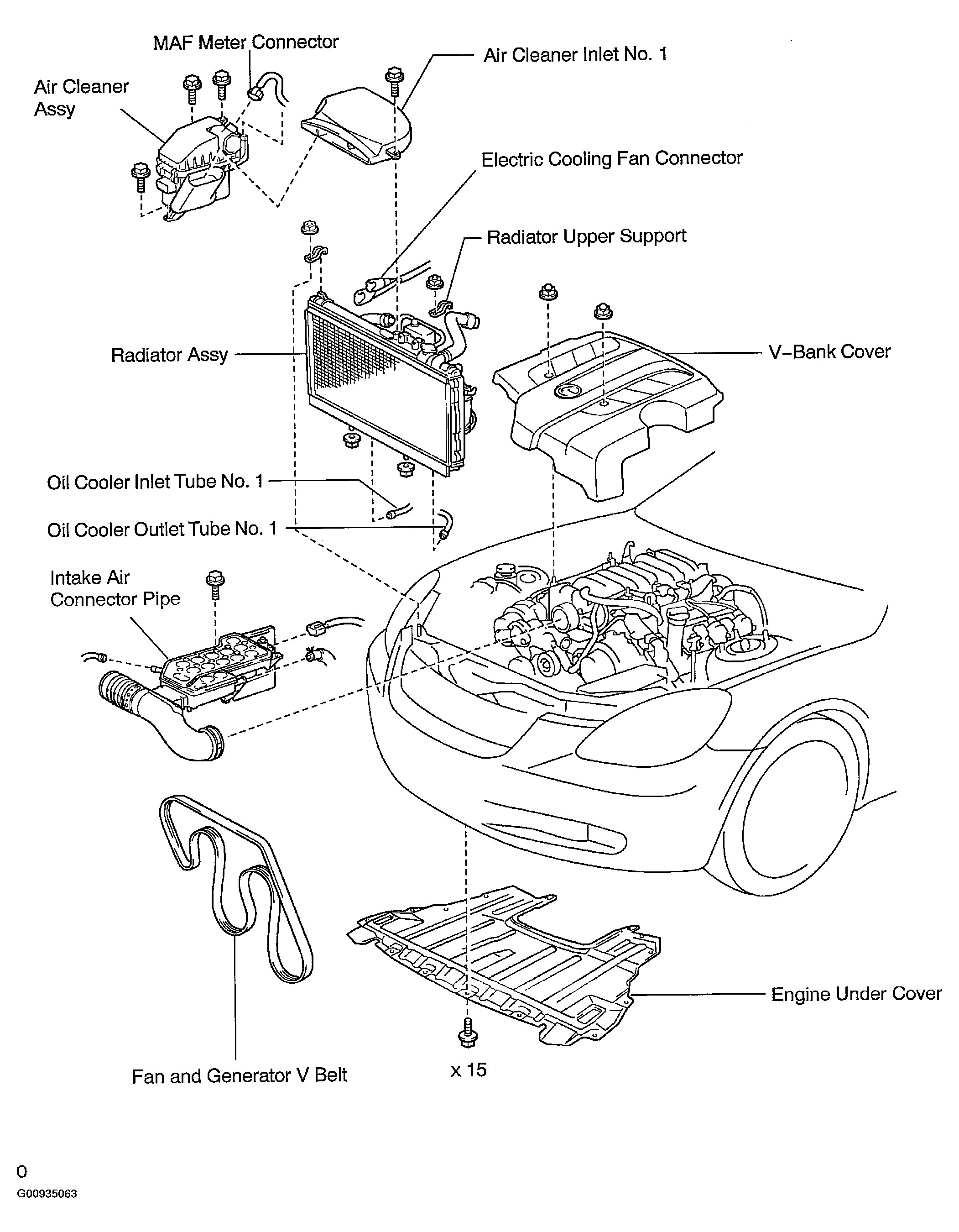

Fig 1: Identifying Radiator & Generator Fan Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

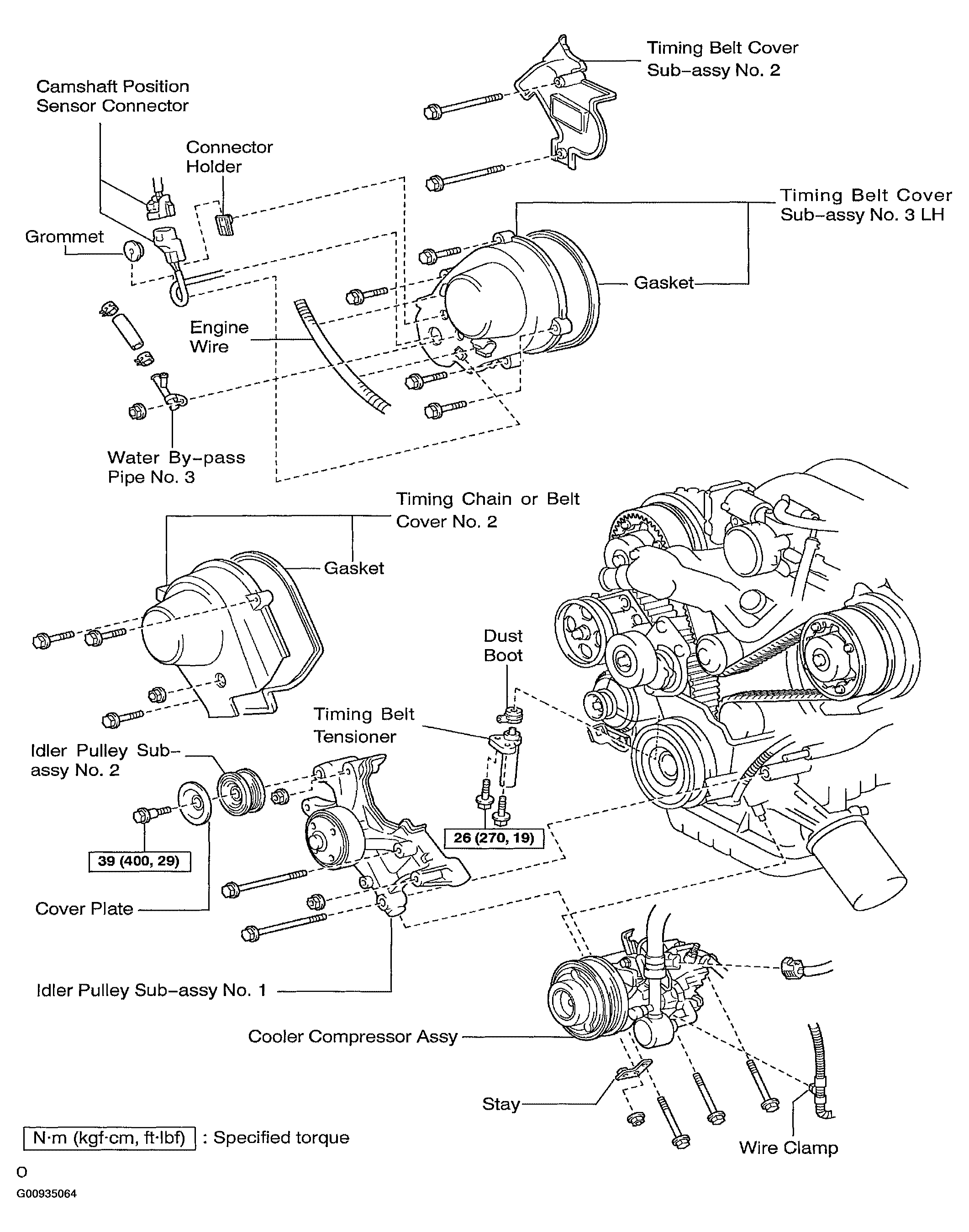

Fig 2: Exploded View Timing Belt Covers And Idler Pulley Sub-Assembly Components

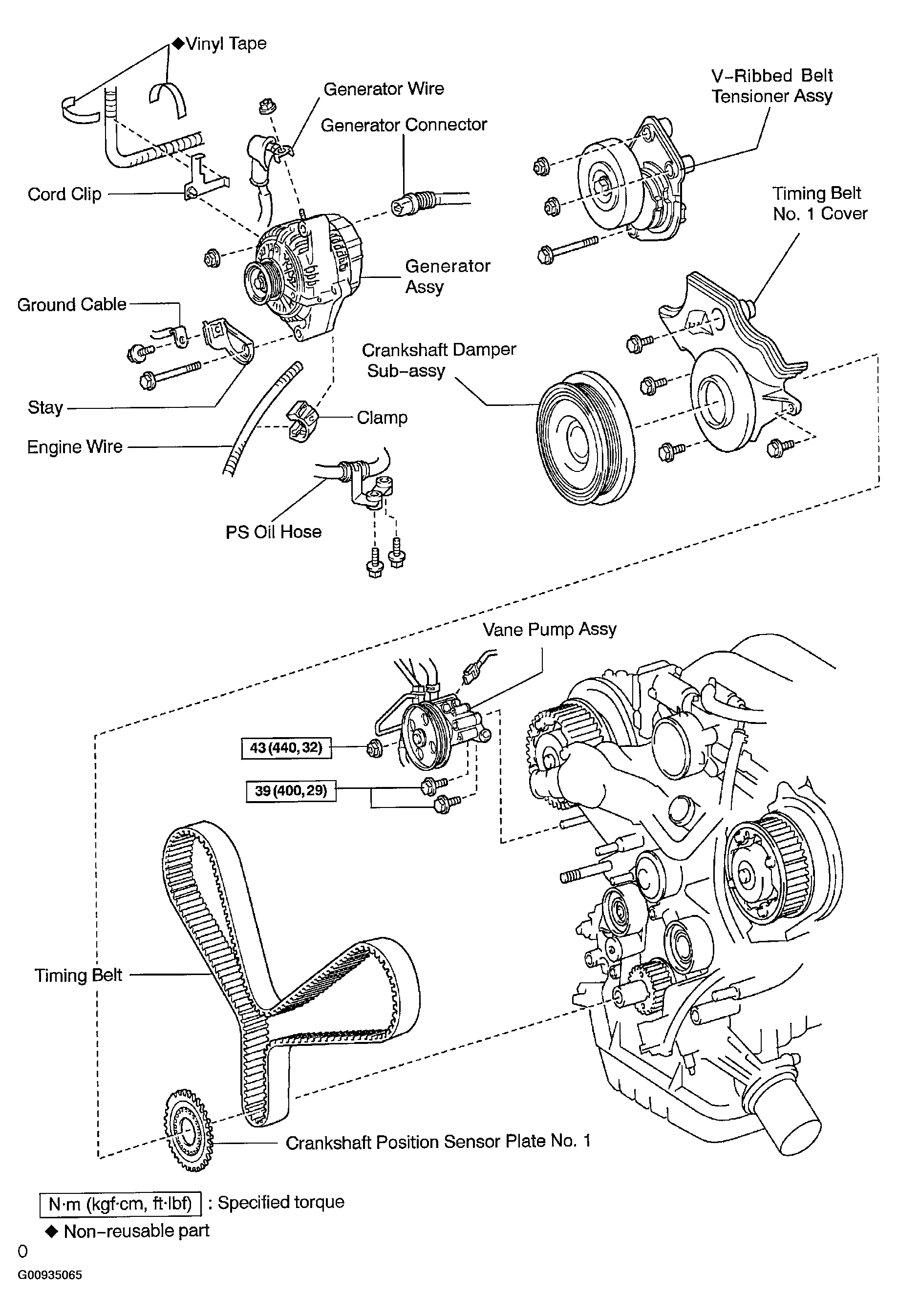

Fig 3: Exploded View Of Timing Belt Components
