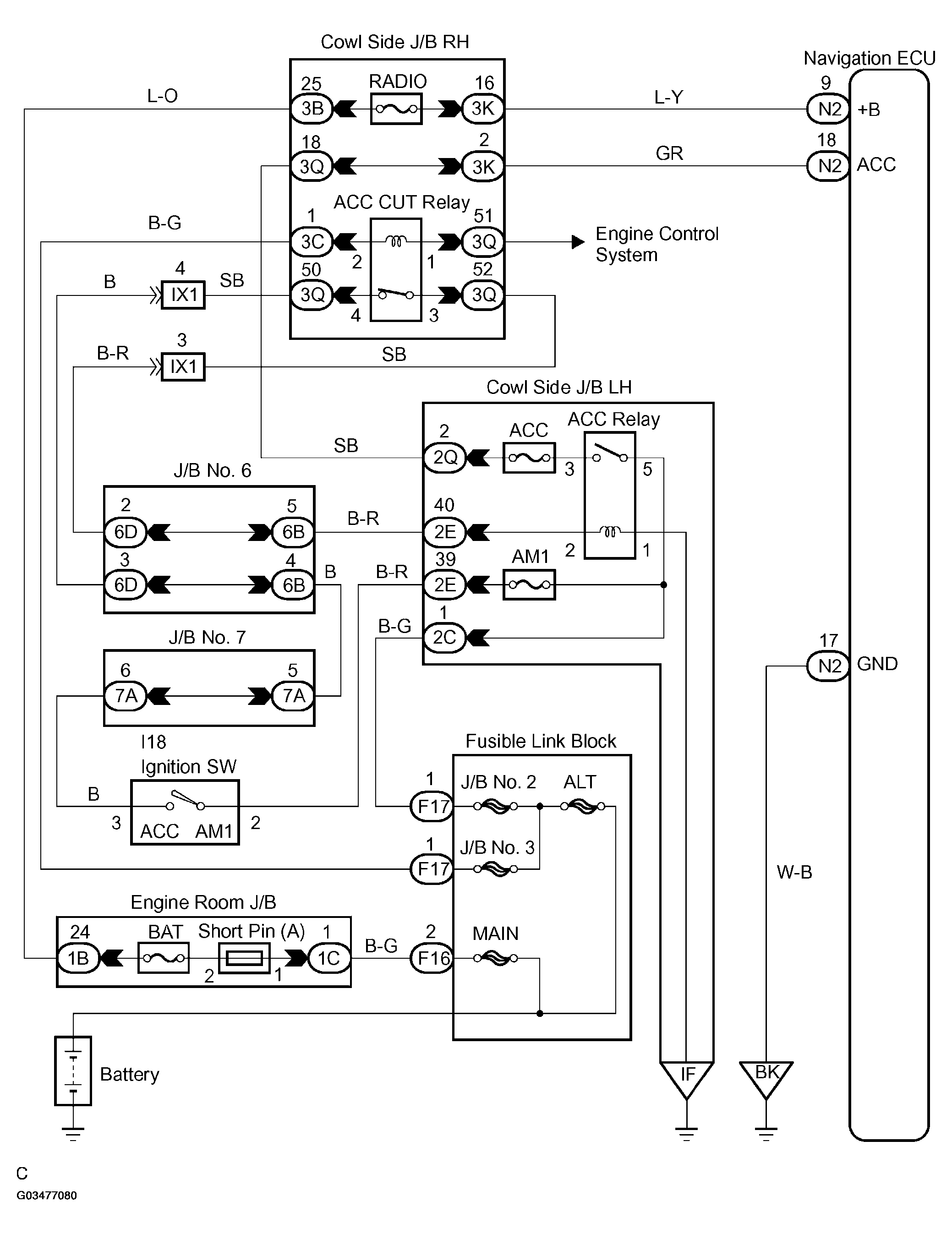

Power Source Circuit (Navigation ECU): Wiring Diagram

WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
