Air Conditioning Control Assembly: Components

WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

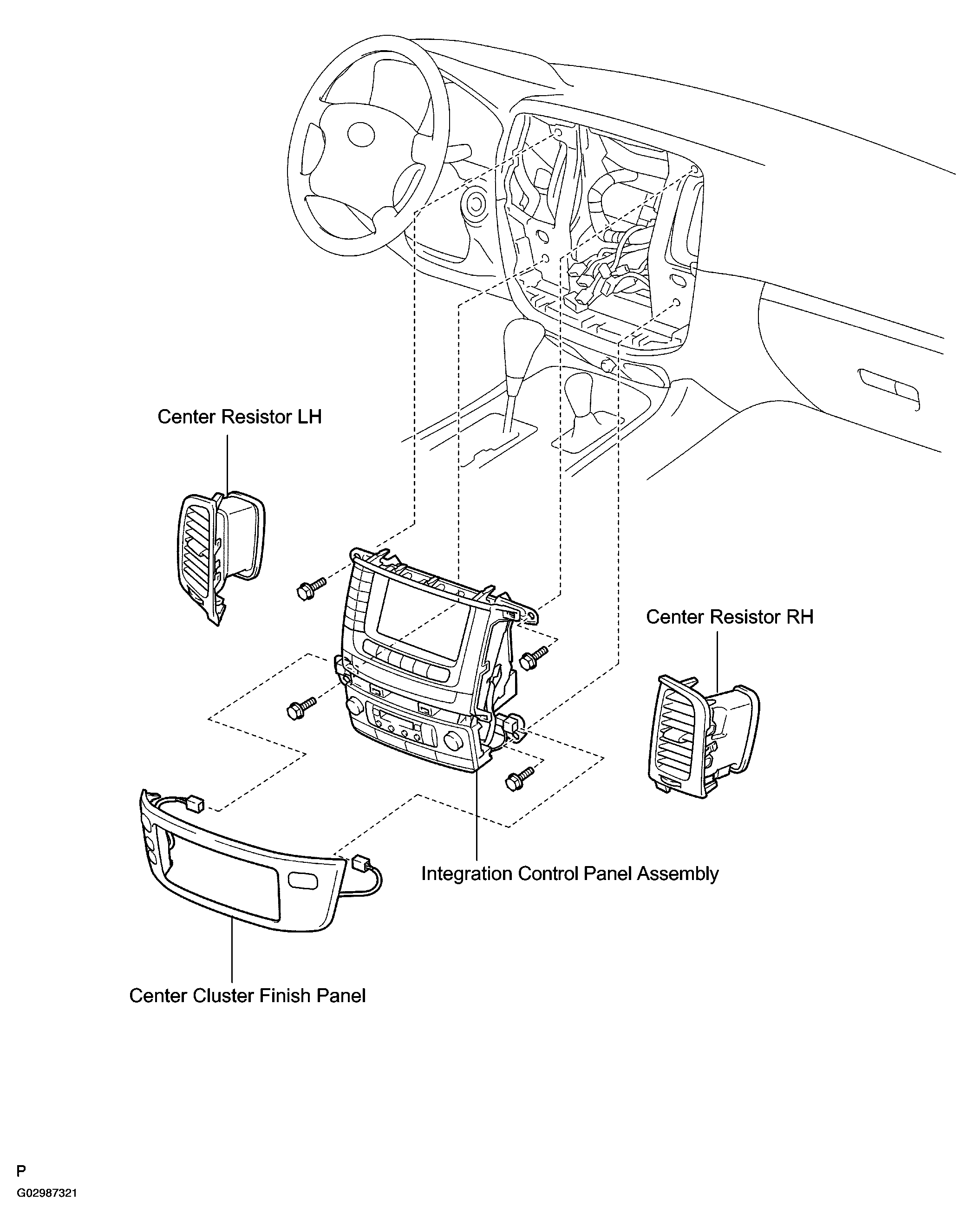

Fig 1: Identifying Air Conditioning Control Assembly Components
G02987321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

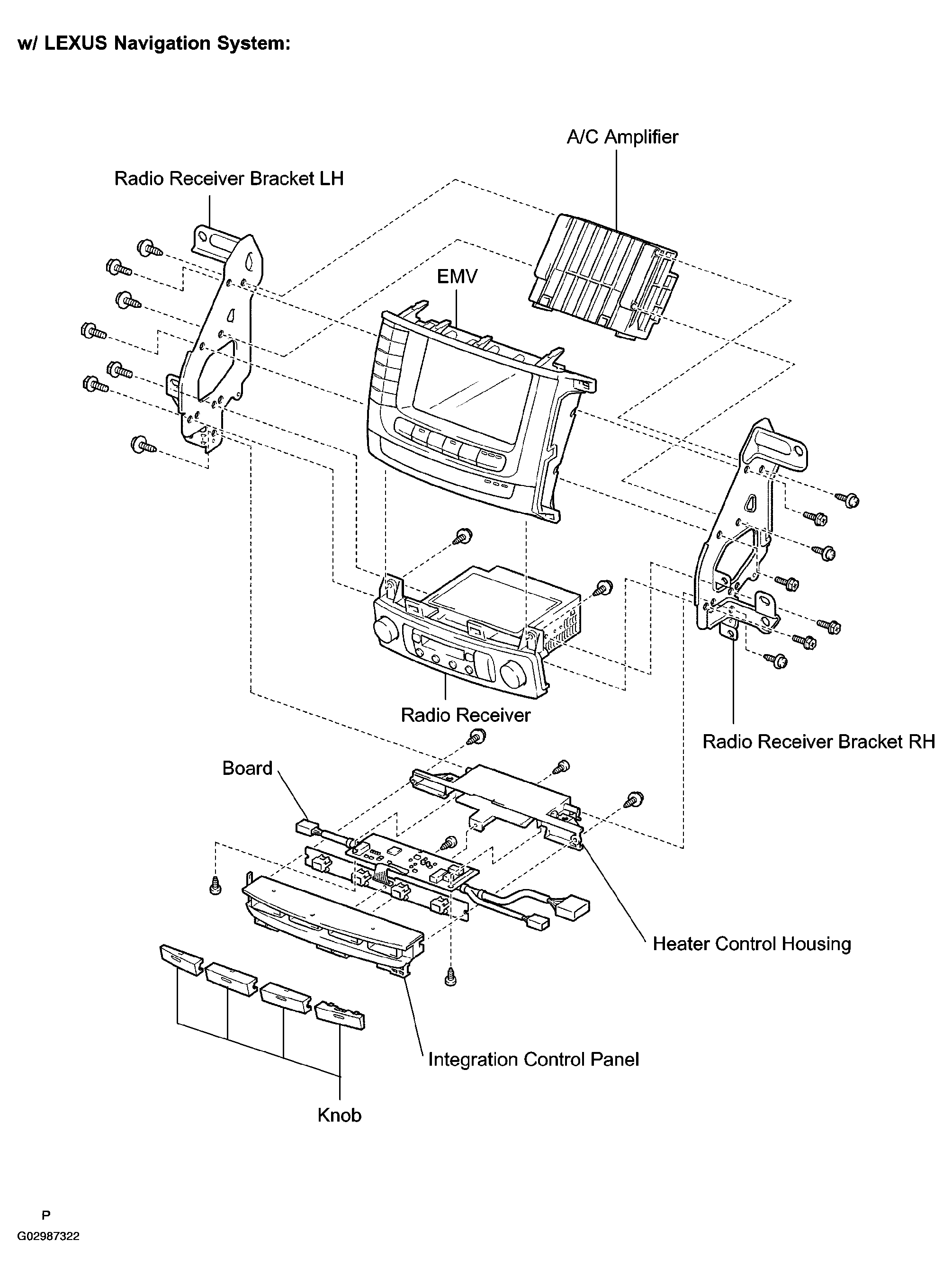

Fig 2: Identifying Air Conditioning Control Assembly Components (W/ Lexus Navigation System)
G02987322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

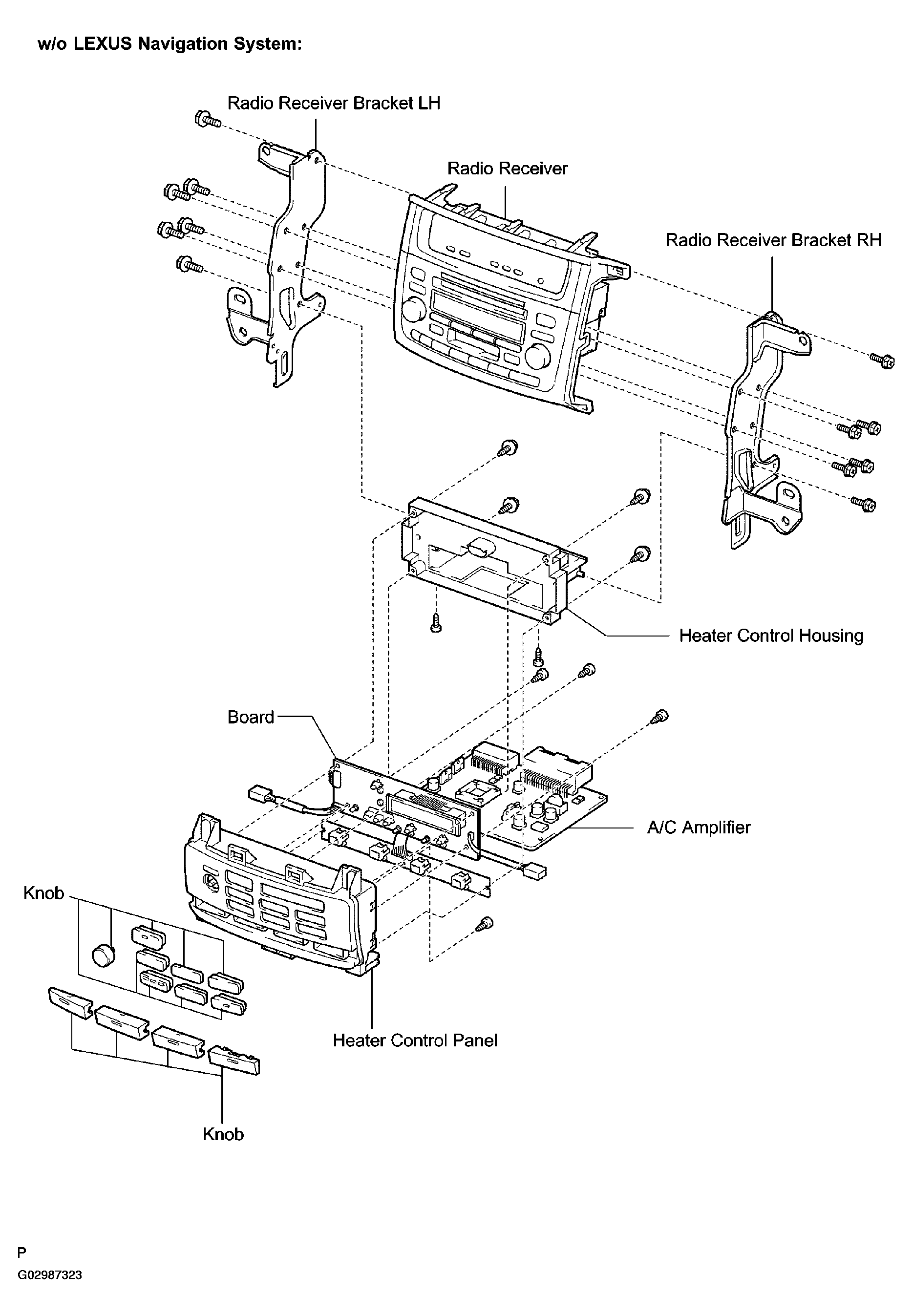

Fig 3: Identifying Air Conditioning Control Assembly Components (W/O Lexus Navigation System)
G02987323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
