Air Conditioning Control Assembly: Removal

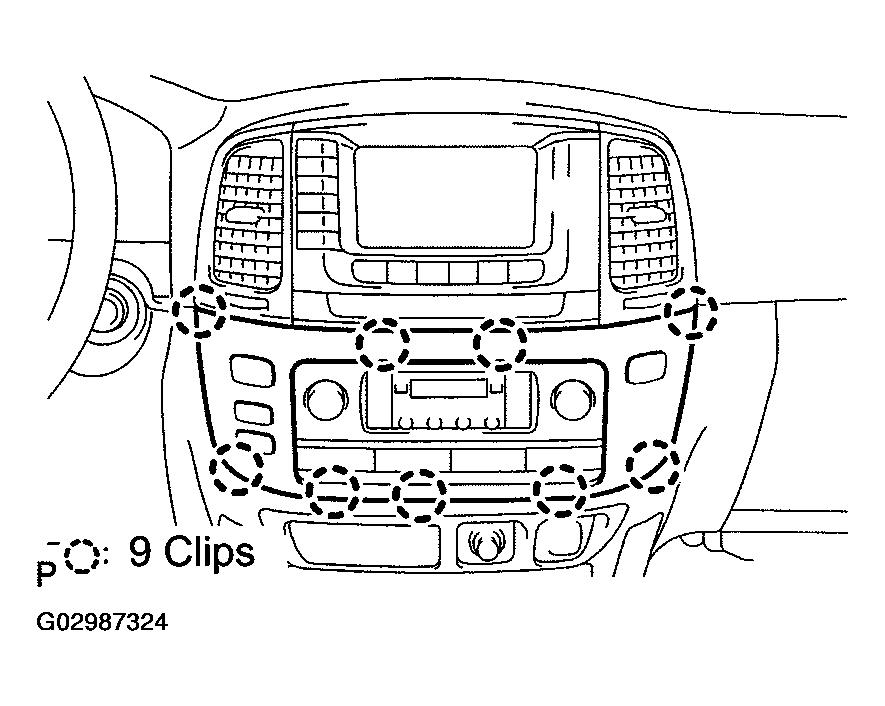

Disengage the 9 clips and remove the center cluster finish panel, then disconnect the connector.

Fig 1: Removing Center Cluster Finish Panel

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disengage the 6 clips and remove the center resistors both side.

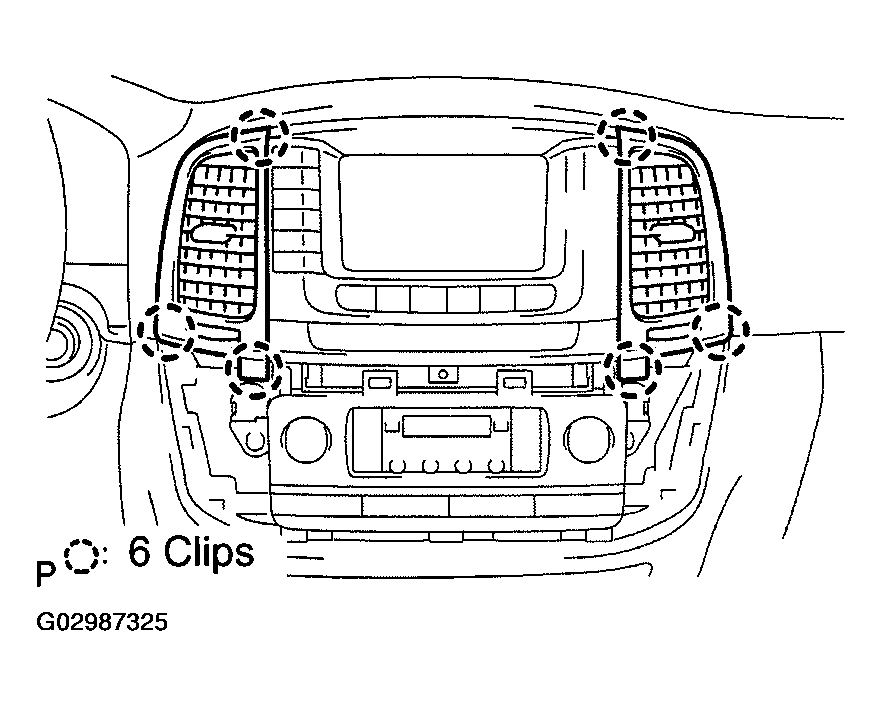

Fig 2: Removing Center Resistors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 4 bolts.
2. Disengage the 7 clips and remove the integration control panel assembly, then disconnect the connectors.

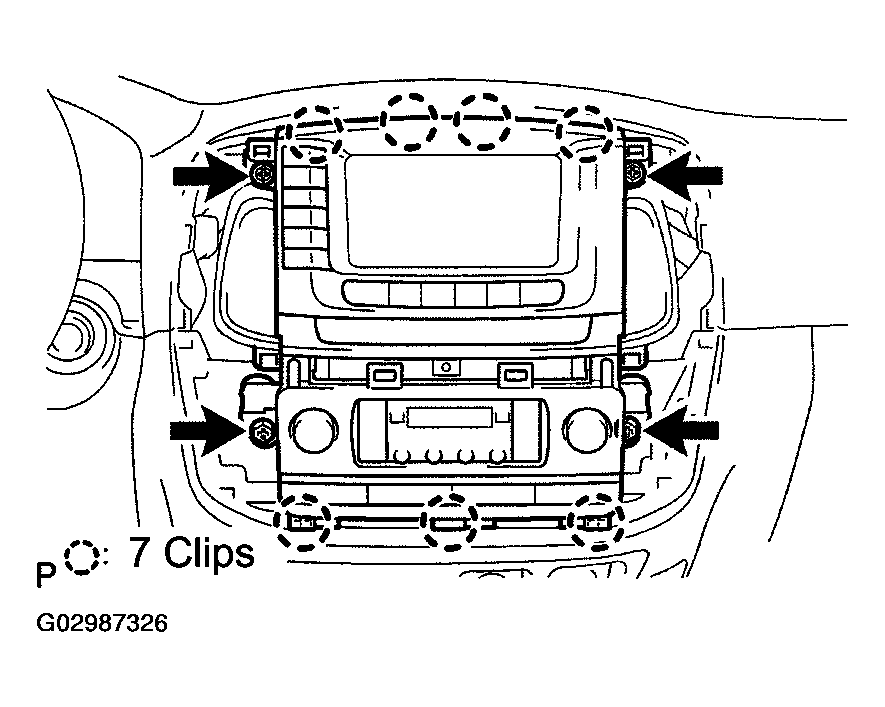

Fig 3: Removing Integration Control Panel Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE A/C AMPLIFIER

1. Disconnect the connector clamp.
2. Remove the 3 screws, the 4 bolts and the radio receiver bracket LH.

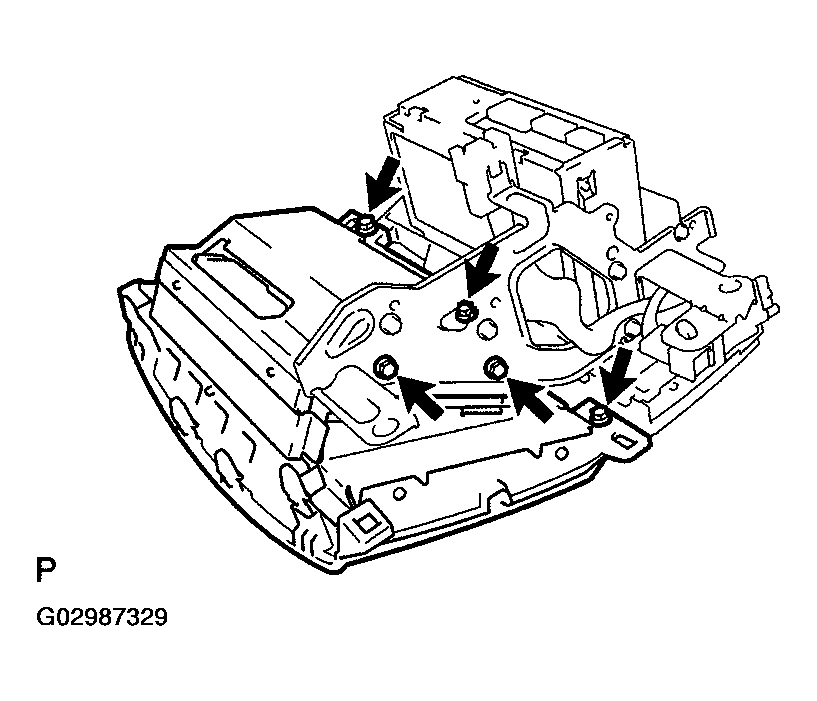

   Fig 4: Removing Radio Receiver Bracket LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 screws and the A/C amplifier.

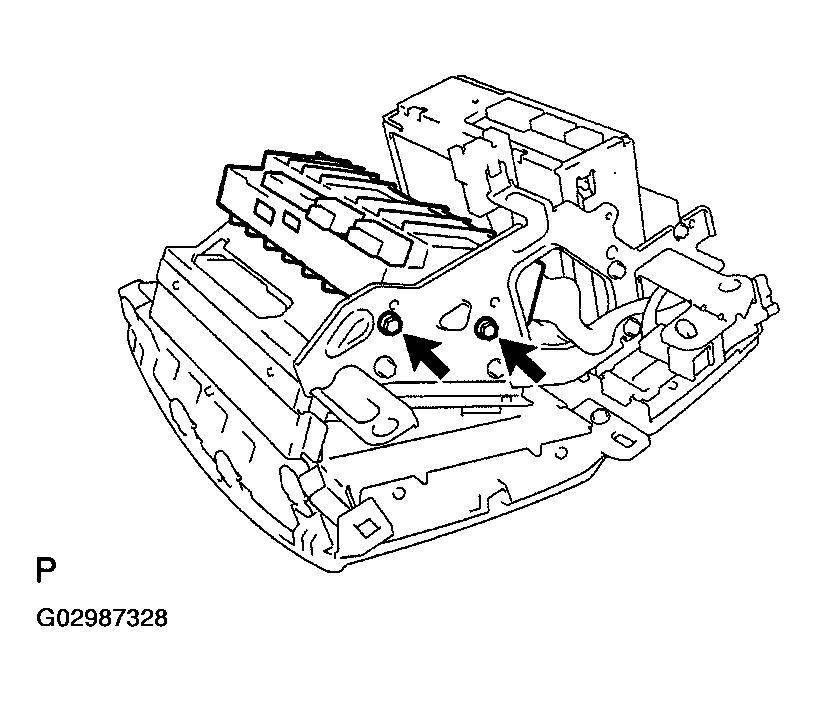

Fig 5: Removing A/C Amplifier

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE EMV

Remove the 2 screws, the 2 bolts and the EMV.

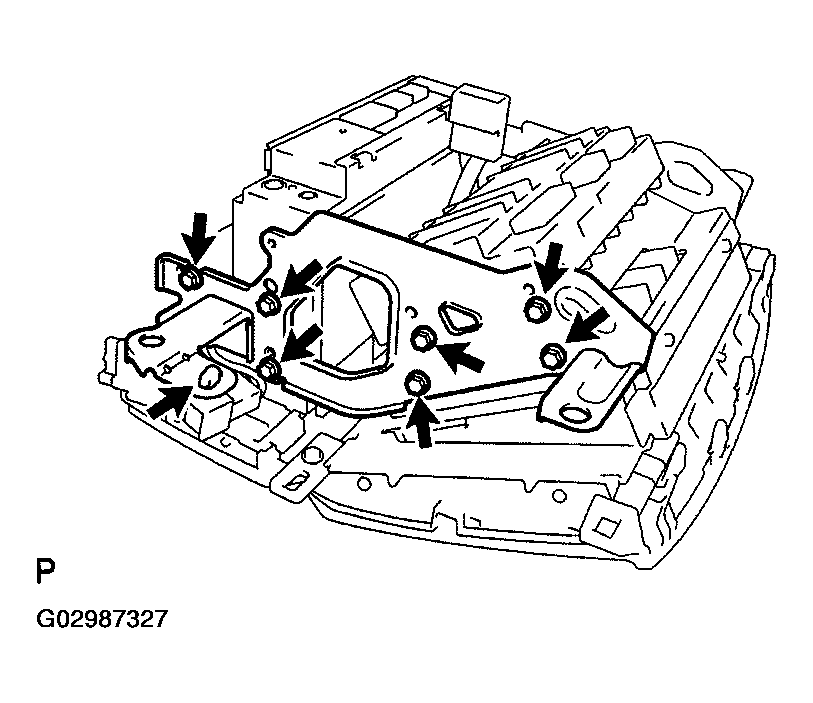

Fig 6: Removing EMV (W/ Lexus Navigation System)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE INTEGRATION CONTROL PANEL

1. Disconnect the connector clamps.
2. Remove the screw, the 2 bolts and the radio receiver bracket RH.
3. Remove the integration control panel from the radio receiver.

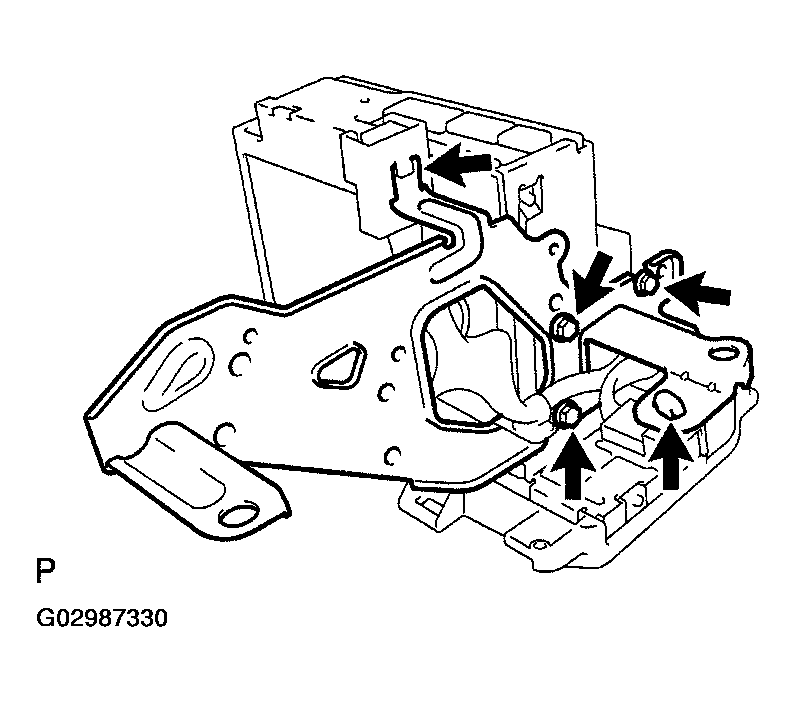

Fig 7: Removing Integration Control Panel (W/ Lexus Navigation System)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE INTEGRATION CONTROL PANEL

1. Disconnect the connector clamp.
2. Remove the 6 bolts and the radio receiver bracket LH.

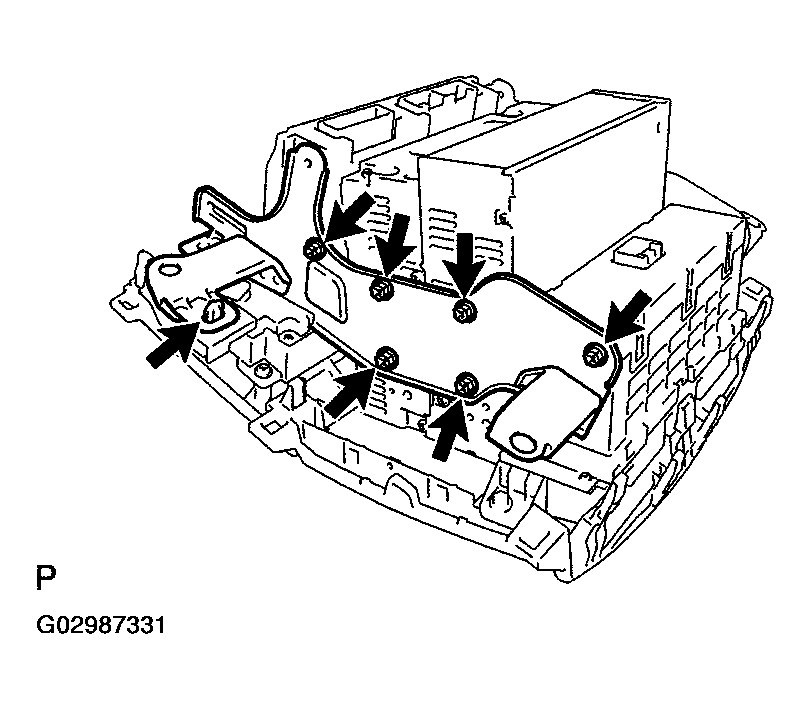

   Fig 8: Removing Radio Receiver Bracket LH (W/O Lexus Navigation System)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the connector clamp.
4. Remove the 6 bolts and the radio receiver bracket RH.
5. Remove the integration control panel.

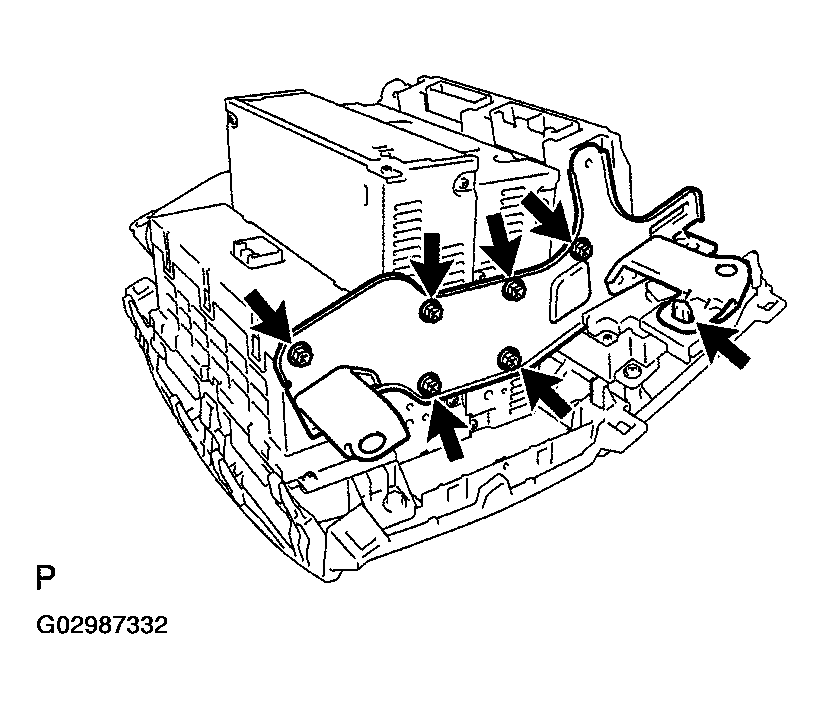

Fig 9: Removing Radio Receiver Bracket RH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
