Solar Sensor: Inspection

WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE SOLAR SENSOR
Using a screwdriver, pull out the solar sensor, then disconnect the connector.

HINT:

Tape up the screwdriver tip before use.
INSPECT SOLAR SENSOR CIRCUIT
(See DTC 21 SOLAR SENSOR CIRCUIT )
INSTALL SOLAR SENSOR
1. Connect the connector.
2. Insert the solar sensor to the instrument panel.

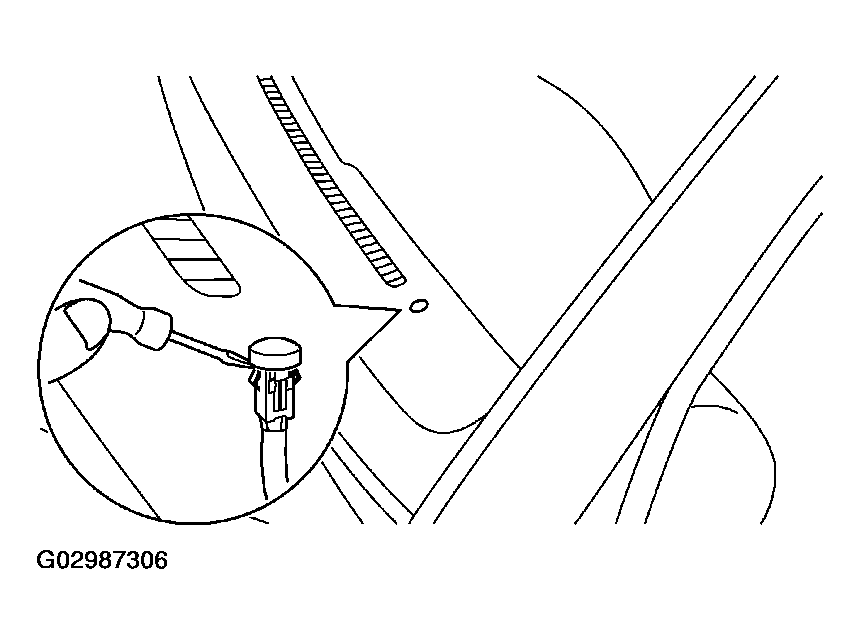

Fig 1: Removing Solar Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
