Section 557 (Tire Pressure Monitor Receiver): Replacement

WARNING: This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See COMPONENTS

SHIP MODE SETTING (See RADIO RECEIVER ASSY )
SEPARATE BATTERY NEGATIVE TERMINAL
1. Disconnect the negative terminal.
REMOVE CONSOLE UPPER PANEL GARNISH REAR (See REPLACEMENT )
REMOVE CONSOLE PANEL SUB-ASSY UPPER (See REPLACEMENT )
REMOVE AIR CONDITIONER CONTROL ASSY (See OVERHAUL )
REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY LOWER CENTER (See RADIO RECEIVER ASSY )
SHIP MODE CONFIRMATION (See RADIO RECEIVER ASSY )
REMOVE TIRE PRESSURE MONITOR RECEIVER ASSY
1. Disconnect the 2 connectors.
2. Remove the 2 bolts and receiver assy.

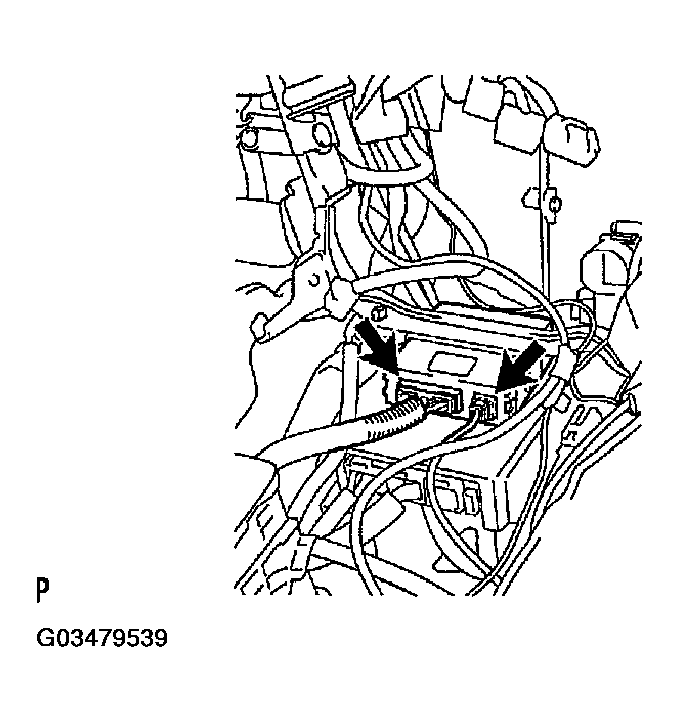

Fig 1: Removing Bolts & Receiver Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TIRE PRESSURE MONITOR RECEIVER ASSY
1. Install the receiver assy with the 2 bolts.
  Torque: 9.0 N.m (92 kgf.cm, 80 in.lbf)
2. Connect the 2 connectors.
Fig 2: Installing Receiver Assy With Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT TIRE PRESSURE WARNING SYSTEM (See PRE-CHECK )

SST 09843-18040
