Testing Procedure

WARNING: This page is about a different car, the 2002 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

For testing procedure, see Fig 1 - Fig 3 .

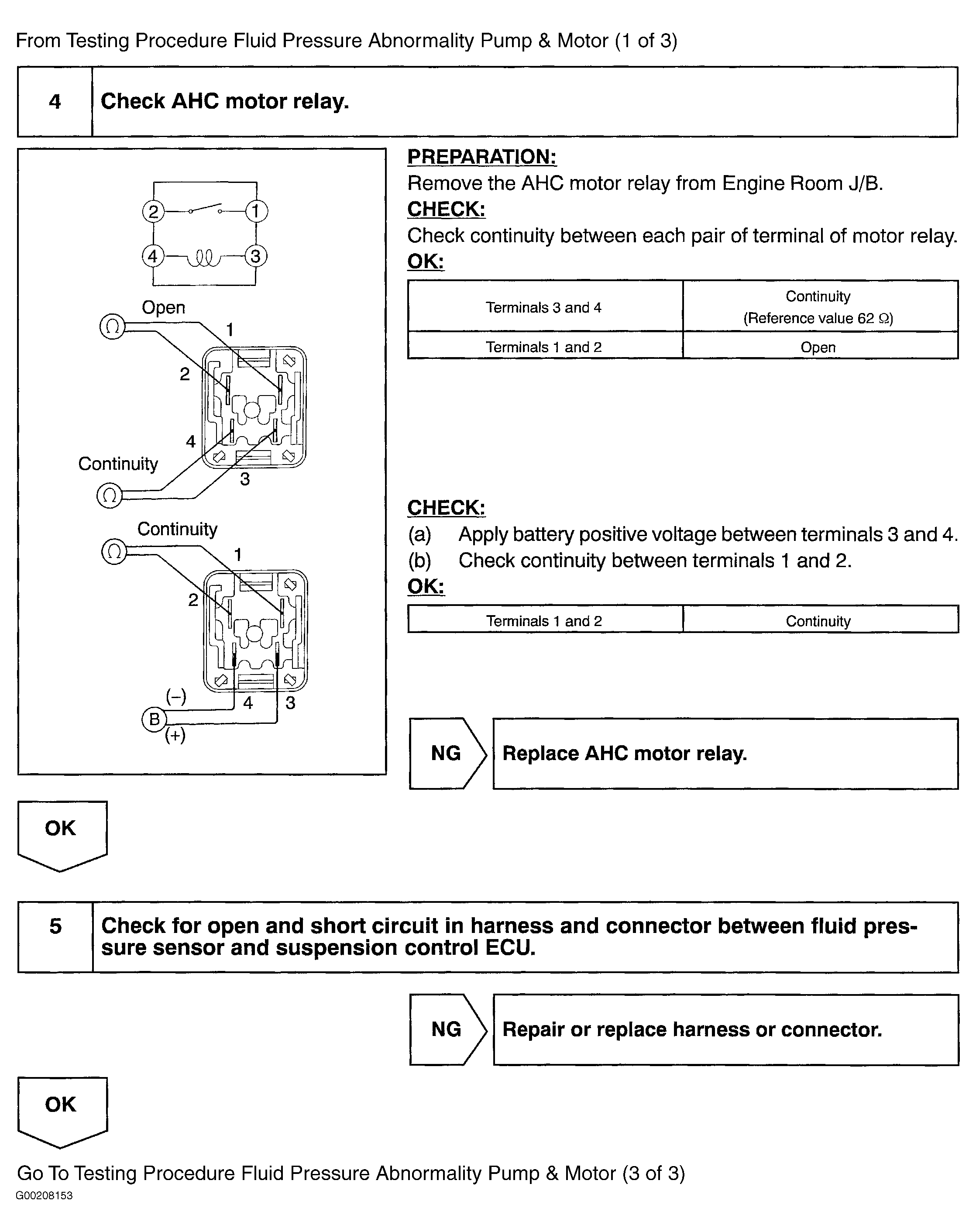

Fig 1: Testing Procedure Fluid Pressure Abnormality Pump & Motor (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

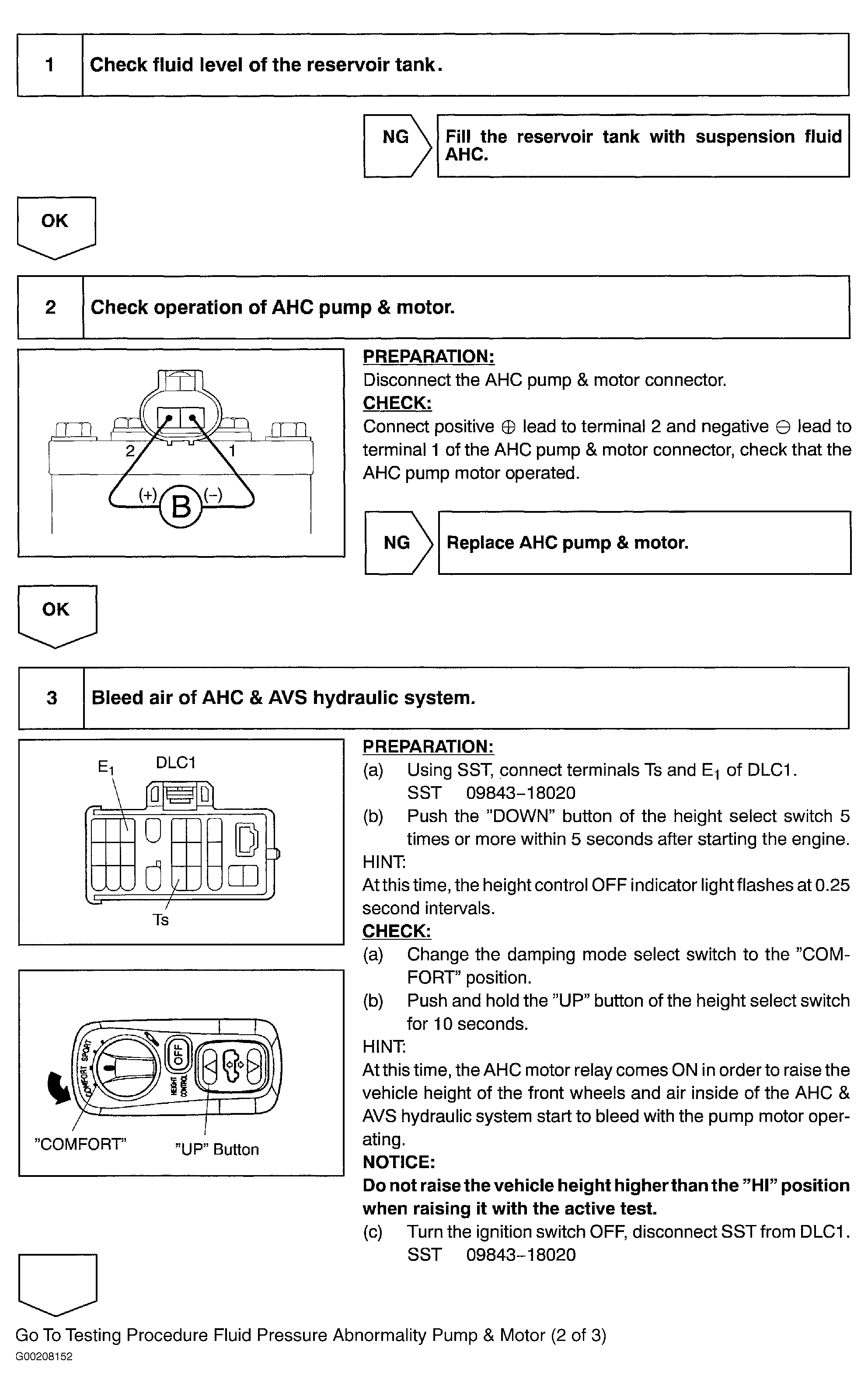

Fig 2: Testing Procedure Fluid Pressure Abnormality Pump & Motor (2 Of 3)

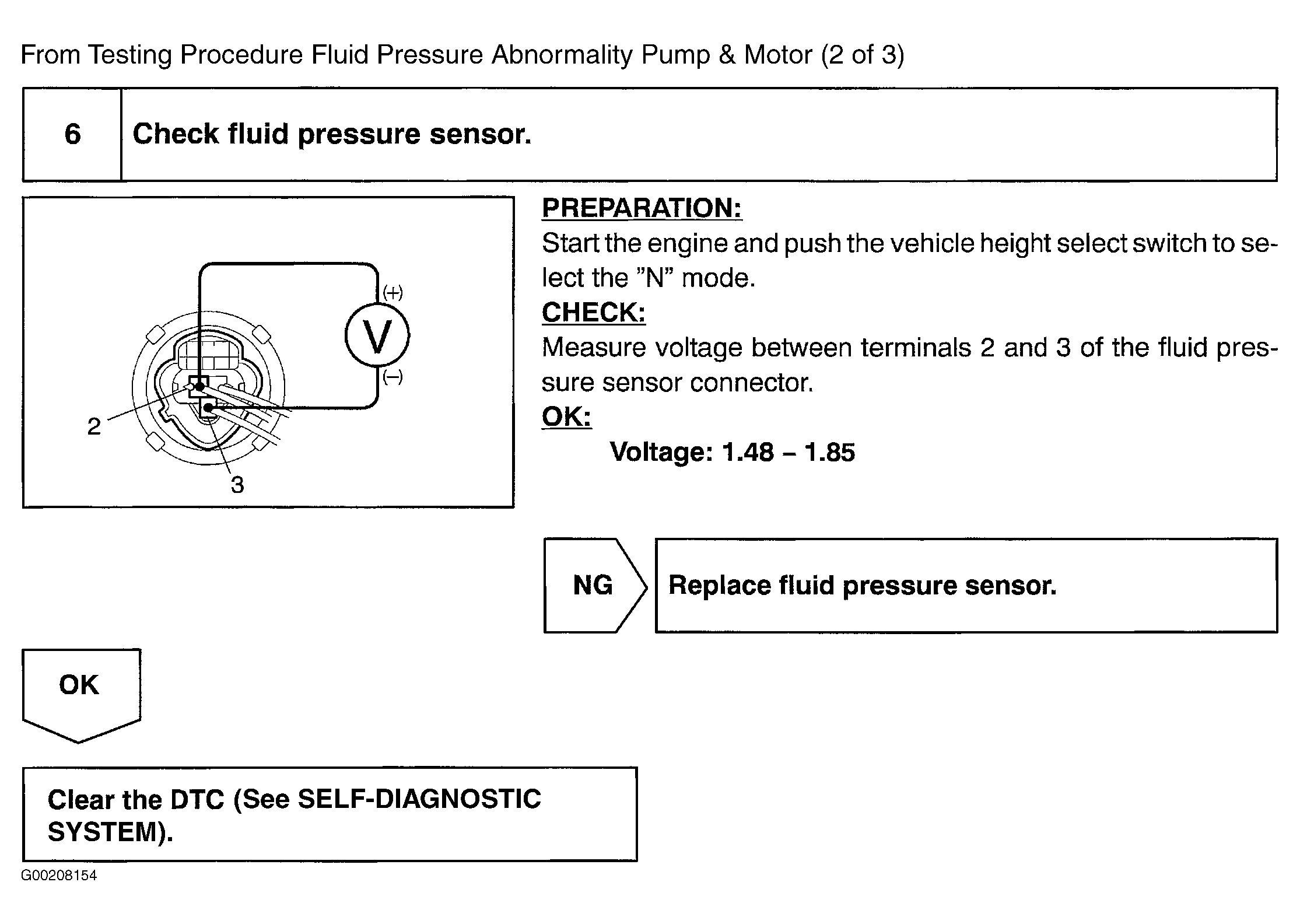

Fig 3: Testing Procedure Fluid Pressure Abnormality Pump & Motor (3 Of 3)
