Section 76 (Front Suspension System): Description
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 Toyota Land Cruiser, 2003 Lexus LX 470, 2002 Toyota Land Cruiser, 2002 Lexus LX 470, and 2001 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

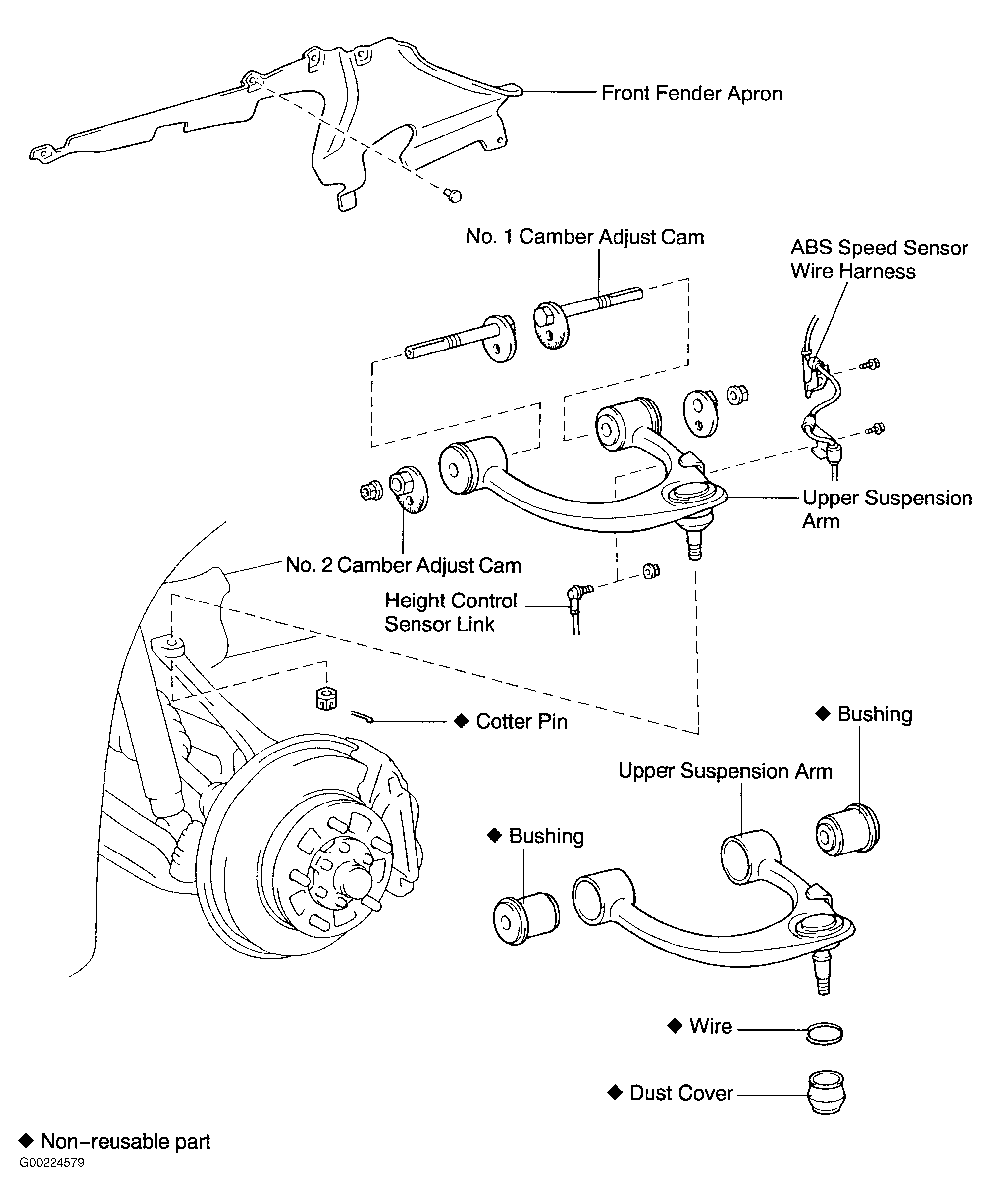

Front suspension uses torsion bars in place of coil springs. See Fig 1. Control arms use double wishbone configuration. For Land Cruiser, see Fig 2 and Fig 4 . For LX 470, see Fig 3 and Fig 4 . A stabilizer bar is connected to ends of lower control arms. See Fig 5.
LX 470 is equipped with Electronic Height Control. For further information see ACTIVE HEIGHT CONTROL & ADAPTIVE VARIABLE SUSPENSION - LX 470 article.
