Navigation Module: Testing and Inspection

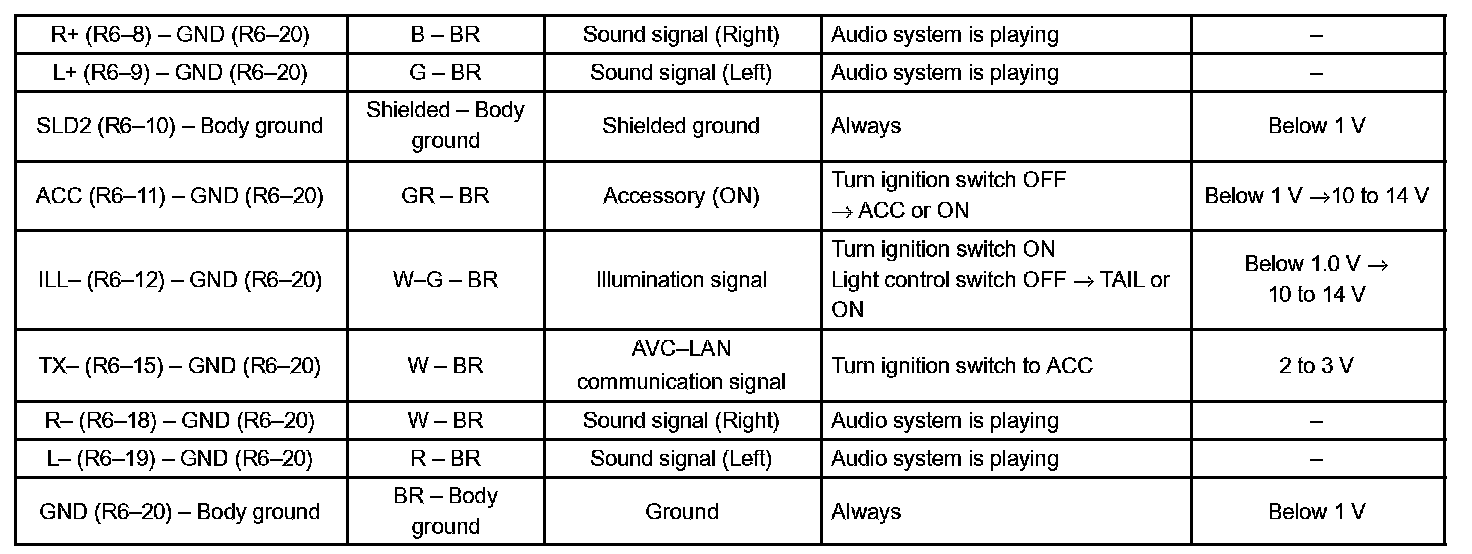

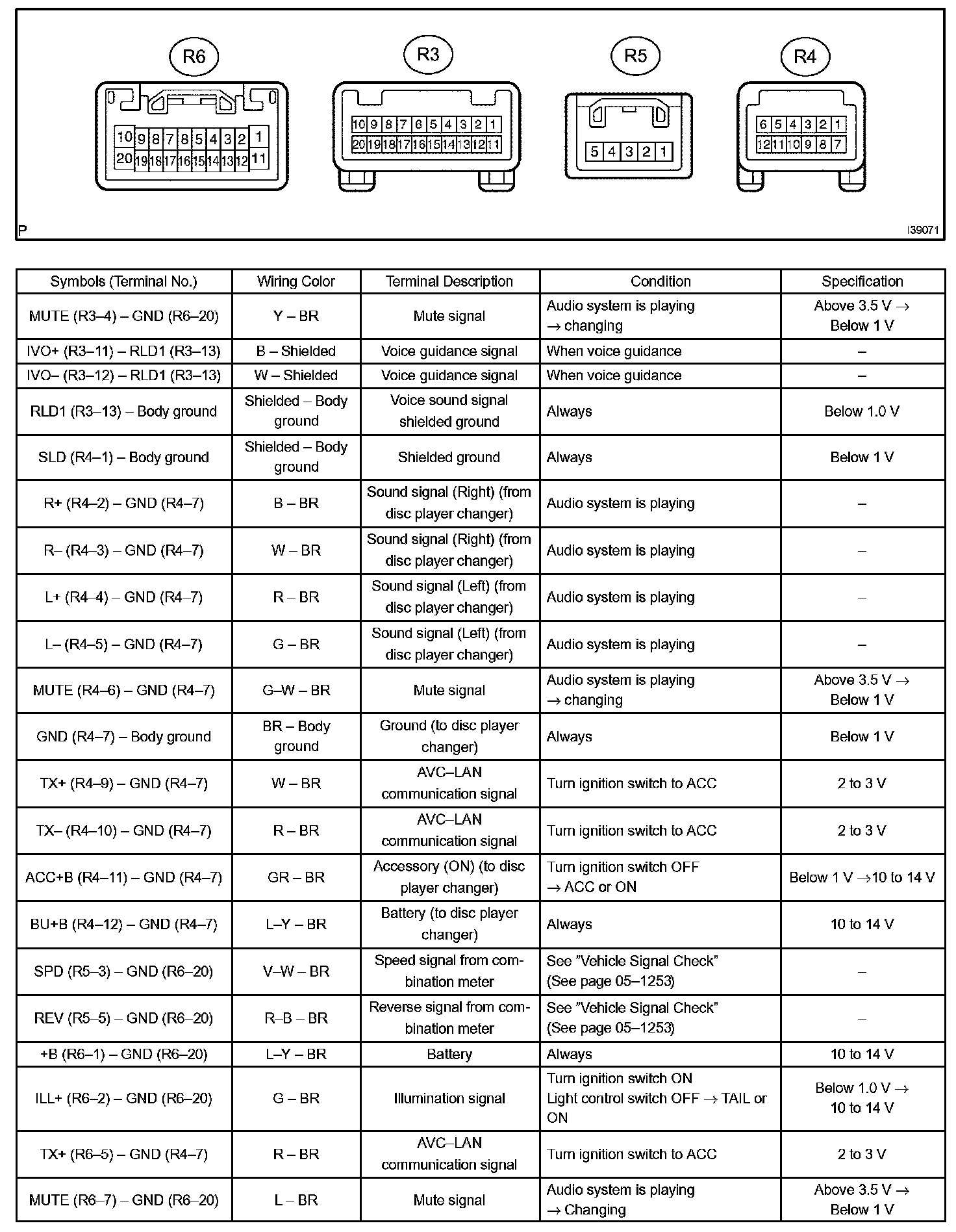

Terminals Of ECU/Pinouts - Radio And Navigation Assy Part 1:

Terminals Of ECU/Pinouts - Radio And Navigation Assy Part 2:

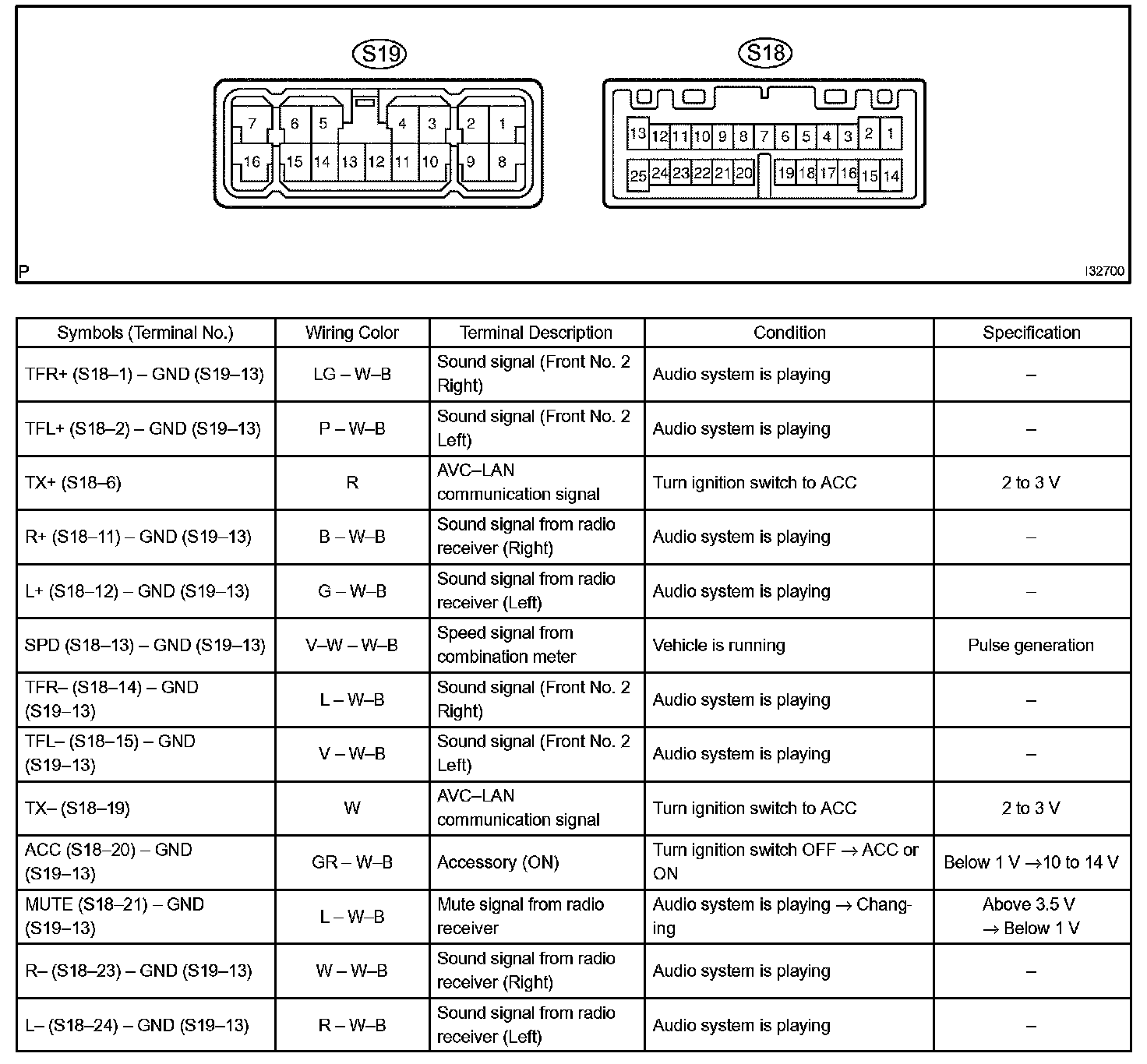

Terminals Of ECU/Pinouts - Stereo Component Amplifier Assy (Mark Levinson Models) Part 1:

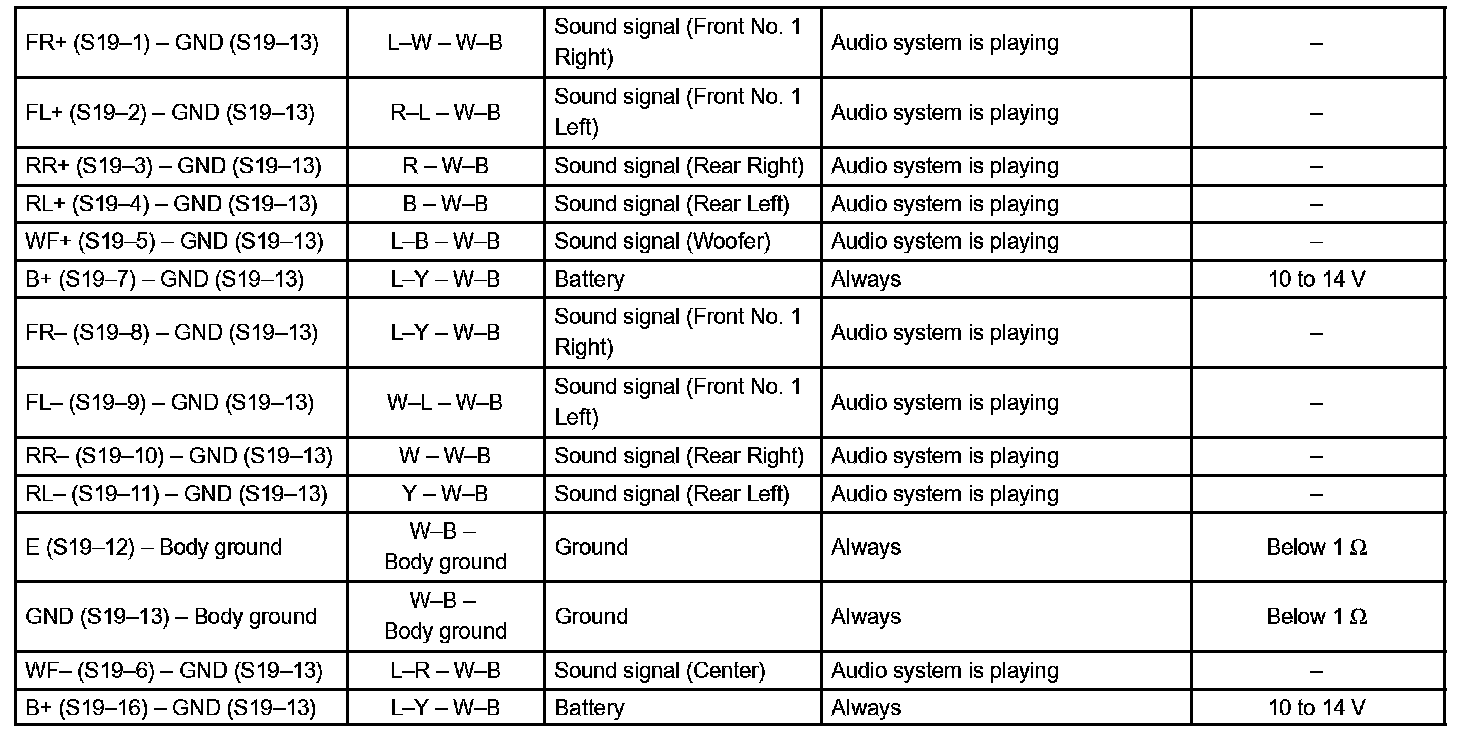

Terminals Of ECU/Pinouts - Stereo Component Amplifier Assy (Mark Levinson Models) Part 2:

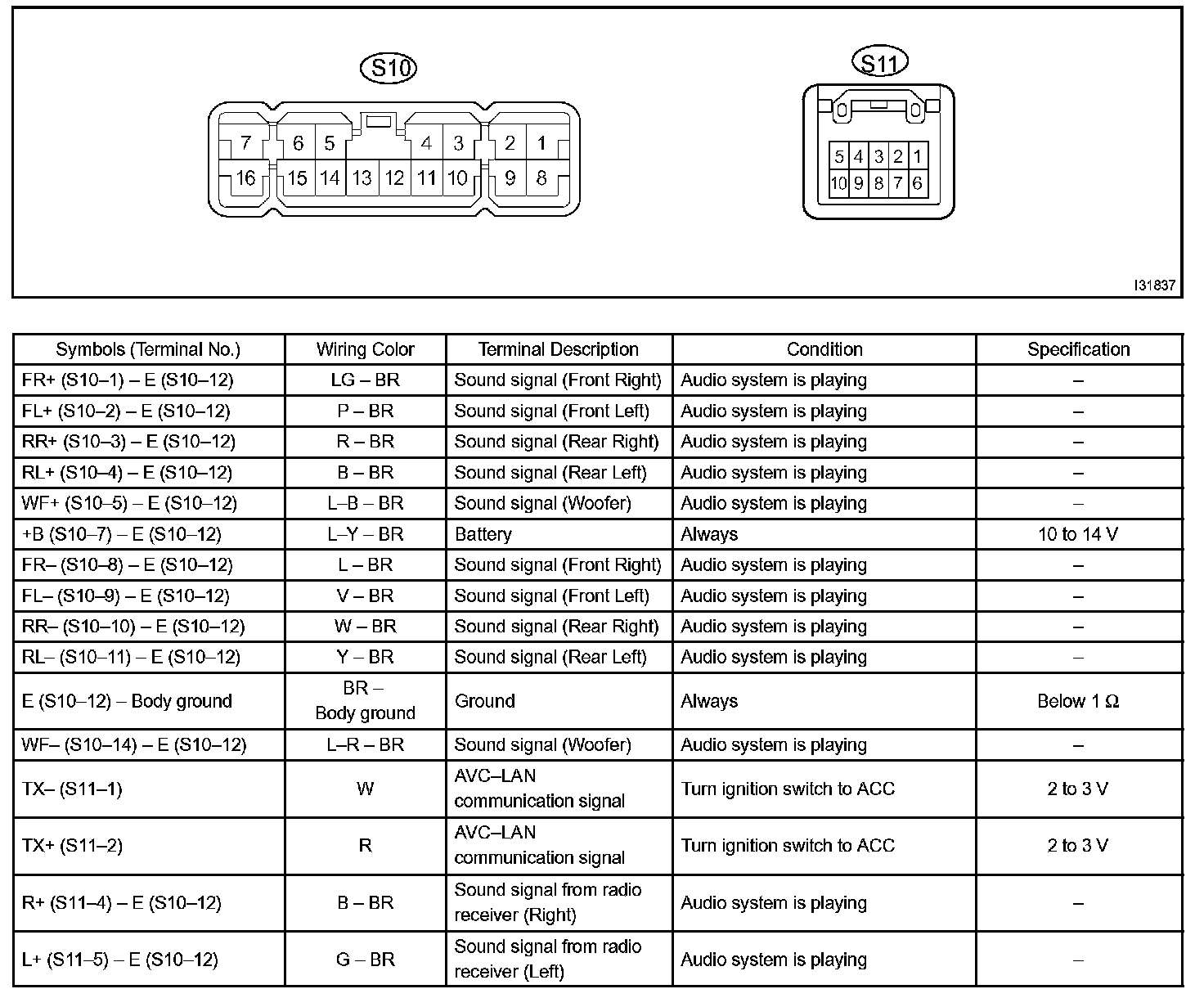

Terminals Of ECU/Pinouts - Stereo Component Amplifier Assy (Standard Models) Part 1:

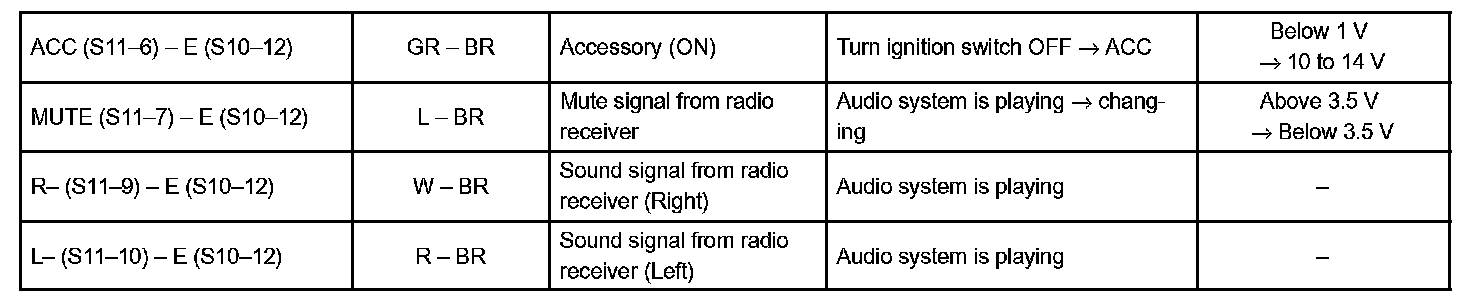

Terminals Of ECU/Pinouts - Stereo Component Amplifier Assy (Standard Models) Part 2:

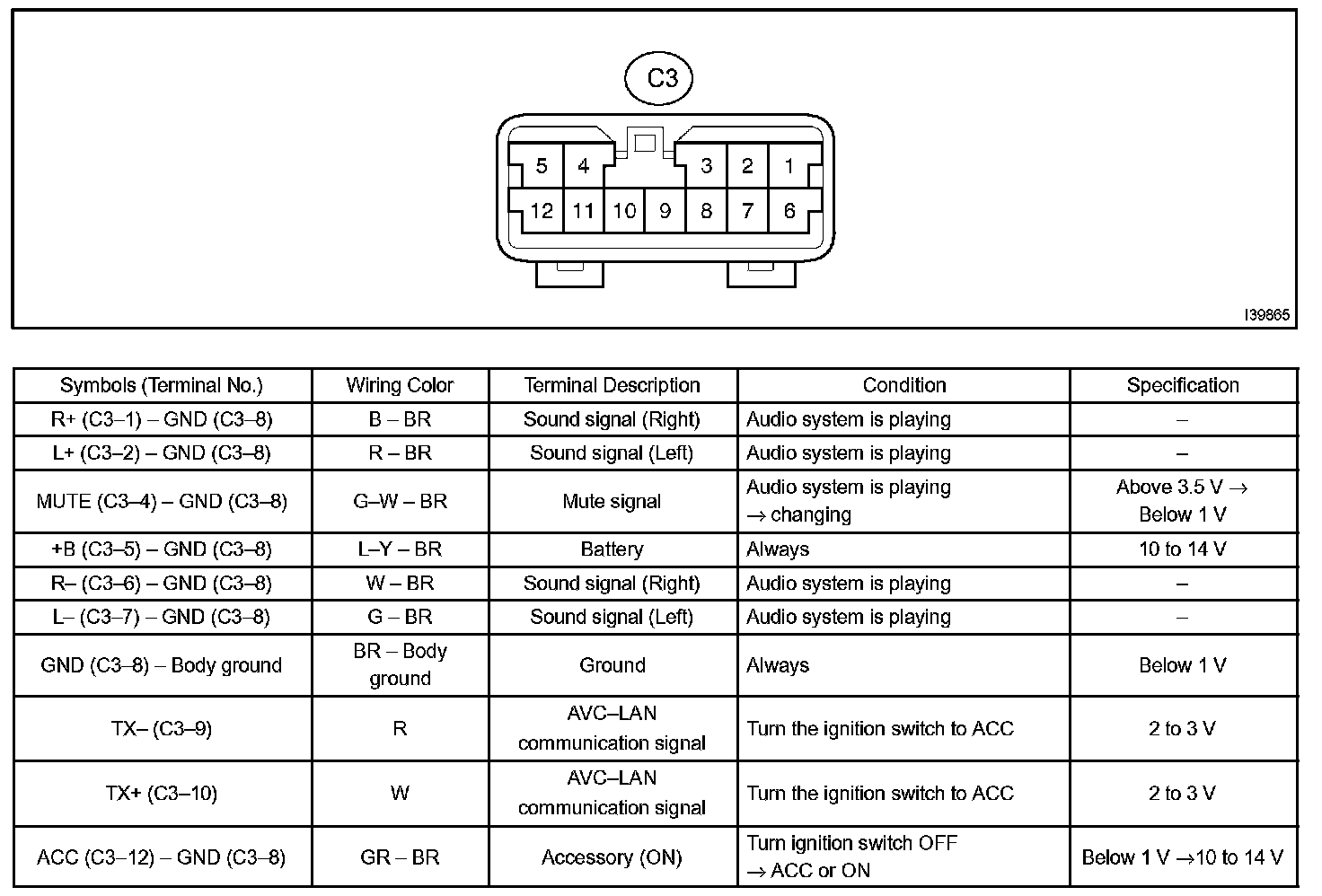

Terminals Of ECU/Pinouts - Disc Player Changer:

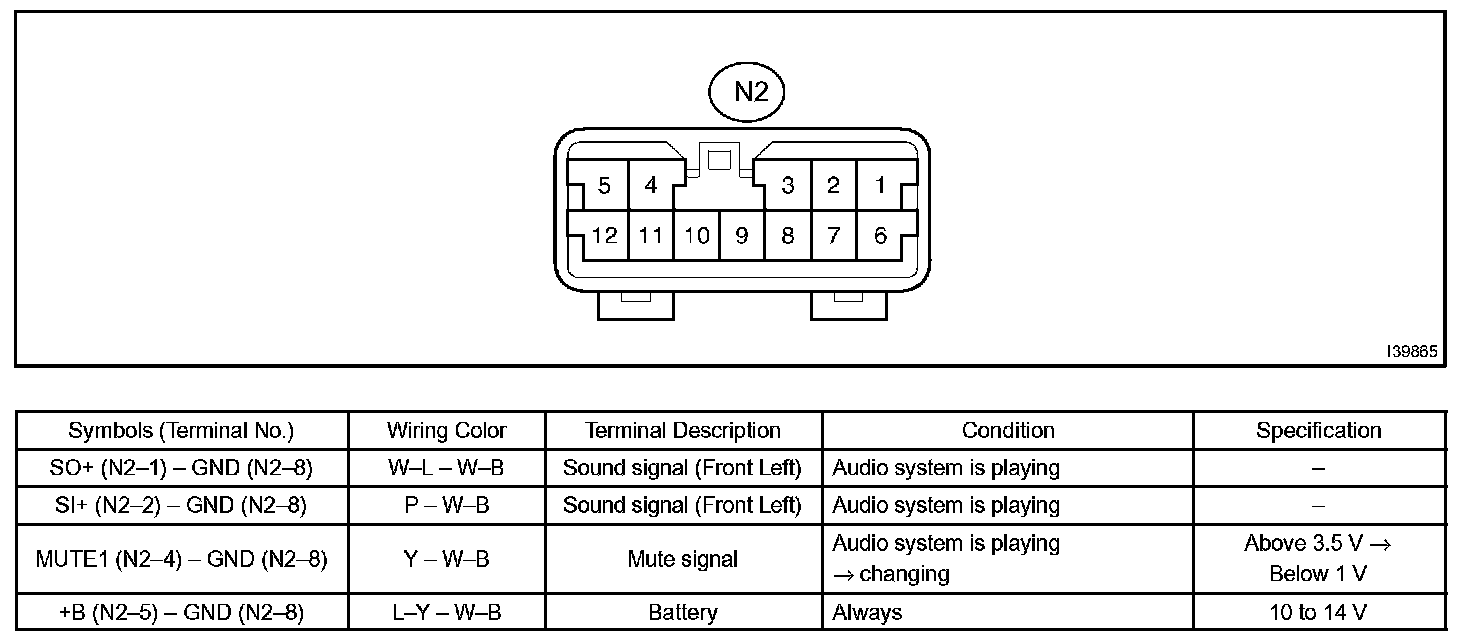

Terminals Of ECU/Pinouts - Navigation Voice Amplifier Assy Part 1:

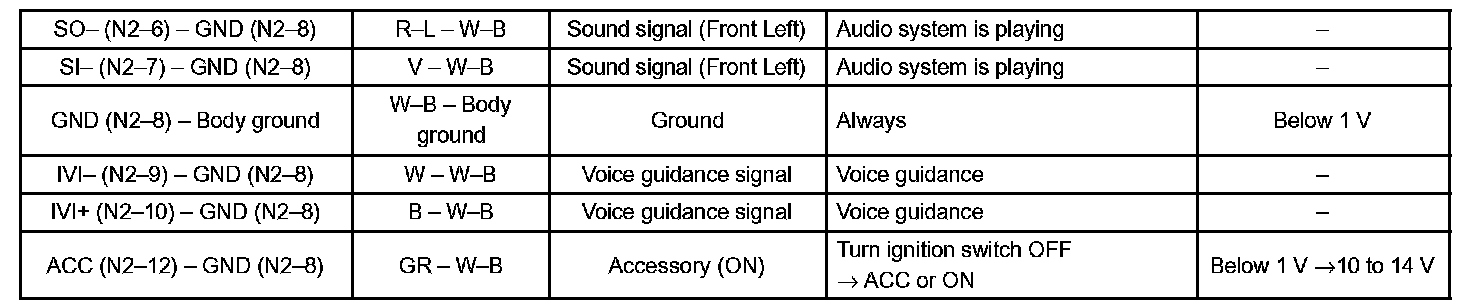

Terminals Of ECU/Pinouts - Navigation Voice Amplifier Assy Part 2:
