Keyless Entry Transmitter: Testing and Inspection

INSPECT WIRELESS DOOR LOCK BUZZER CONTROLLER
a. Operating the controller, inspect the continuity and resistance between terminals 2 and 3.

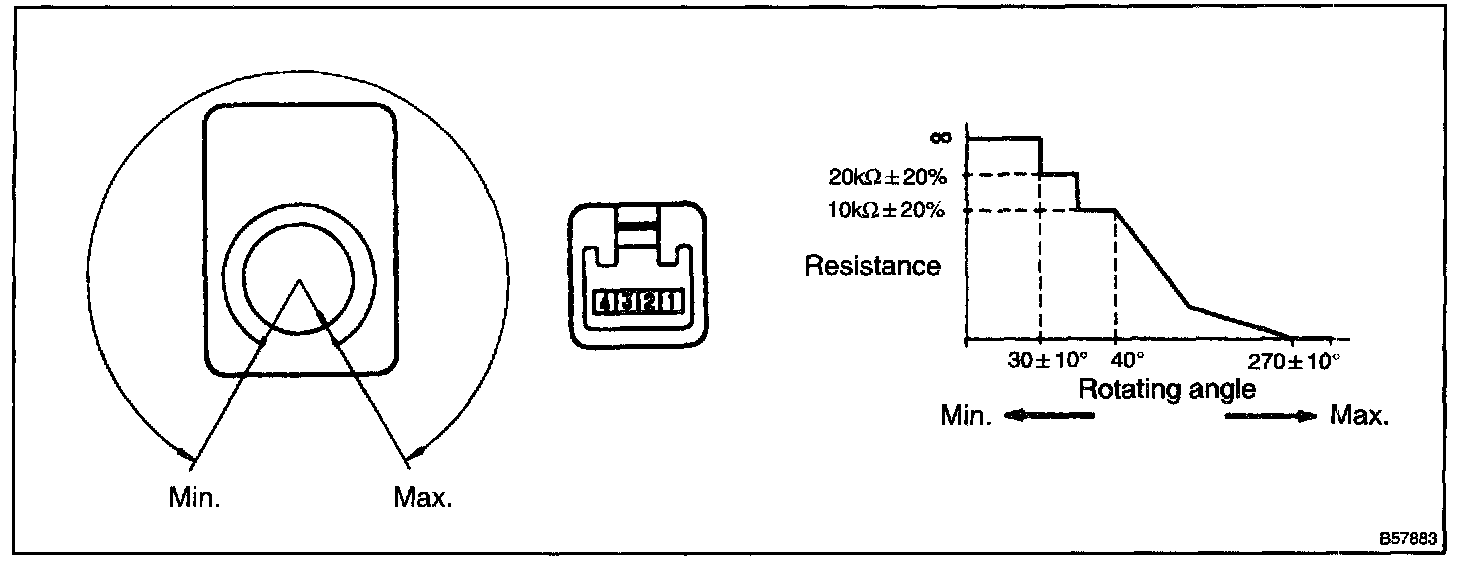

Normal condition: Continuity and resistance change, as shown in the illustration.
