Steering Pad Switch

REPLACEMENT

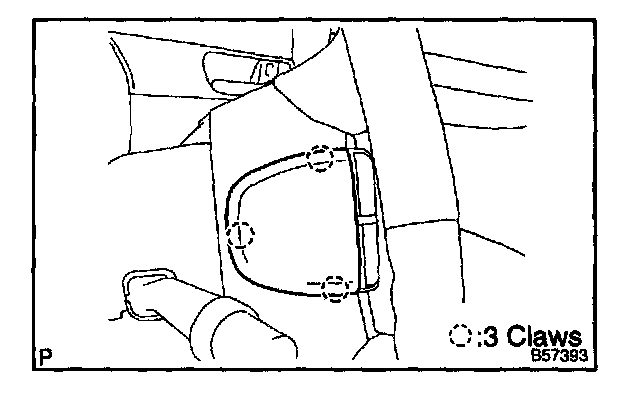

1. REMOVE CONNECTOR COVER
a. Using a screwdriver, disengage the 3 claws and remove the connector cover.

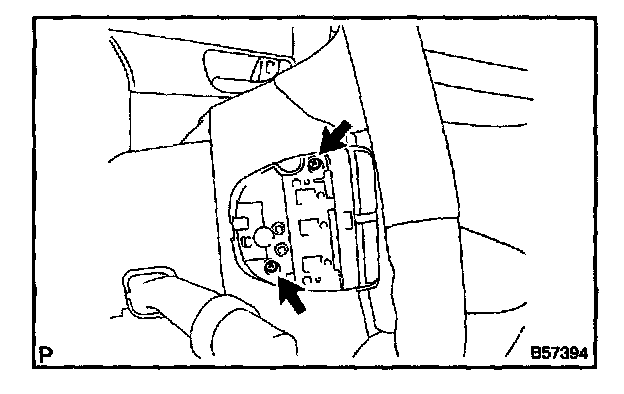

2. REMOVE STEERING PAD SWITCH
a. Remove the 2 screws and disconnect the connector.
b. Remove the steering pad switch.
