System Diagram

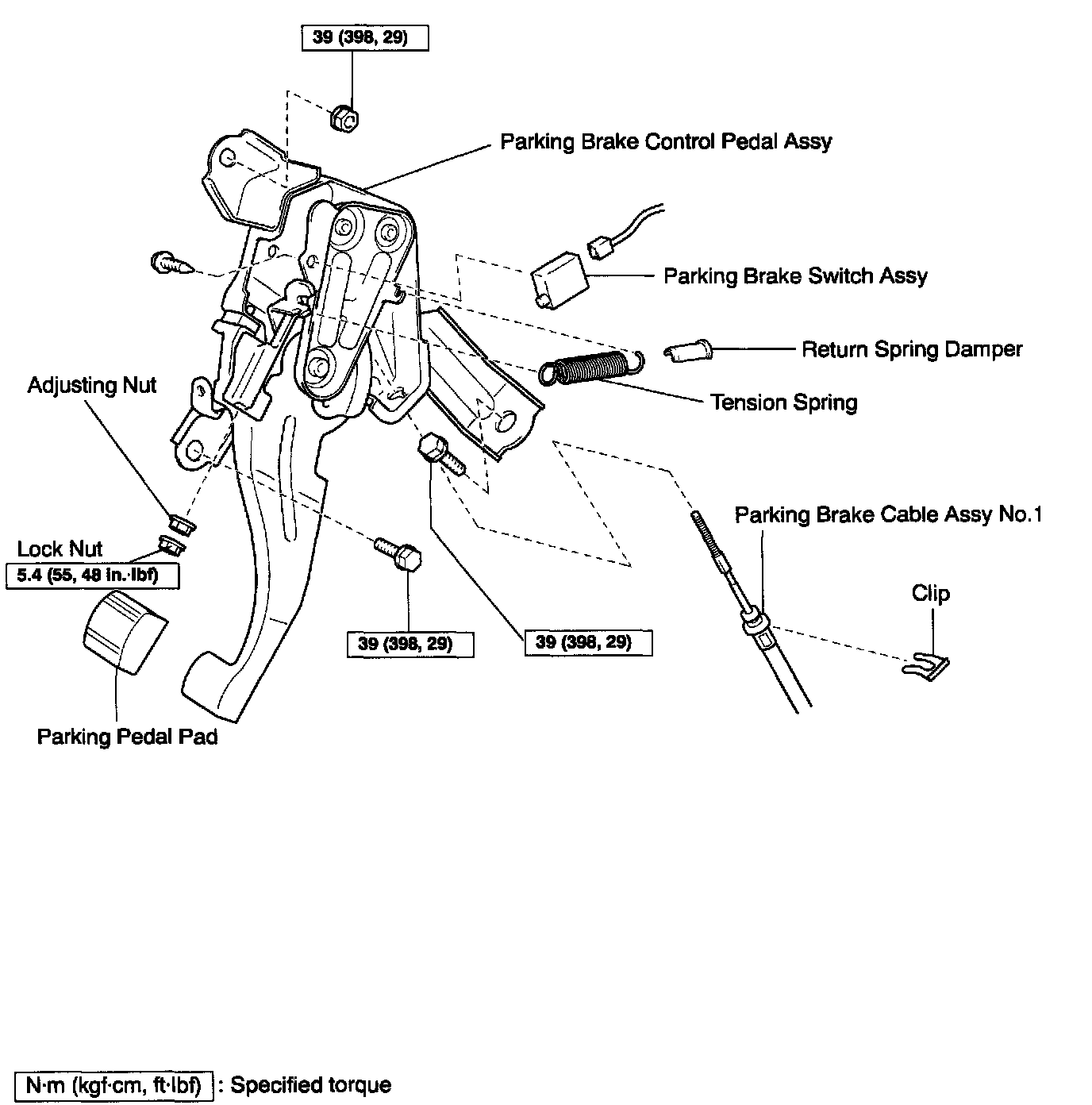

Part 1 Of 3:

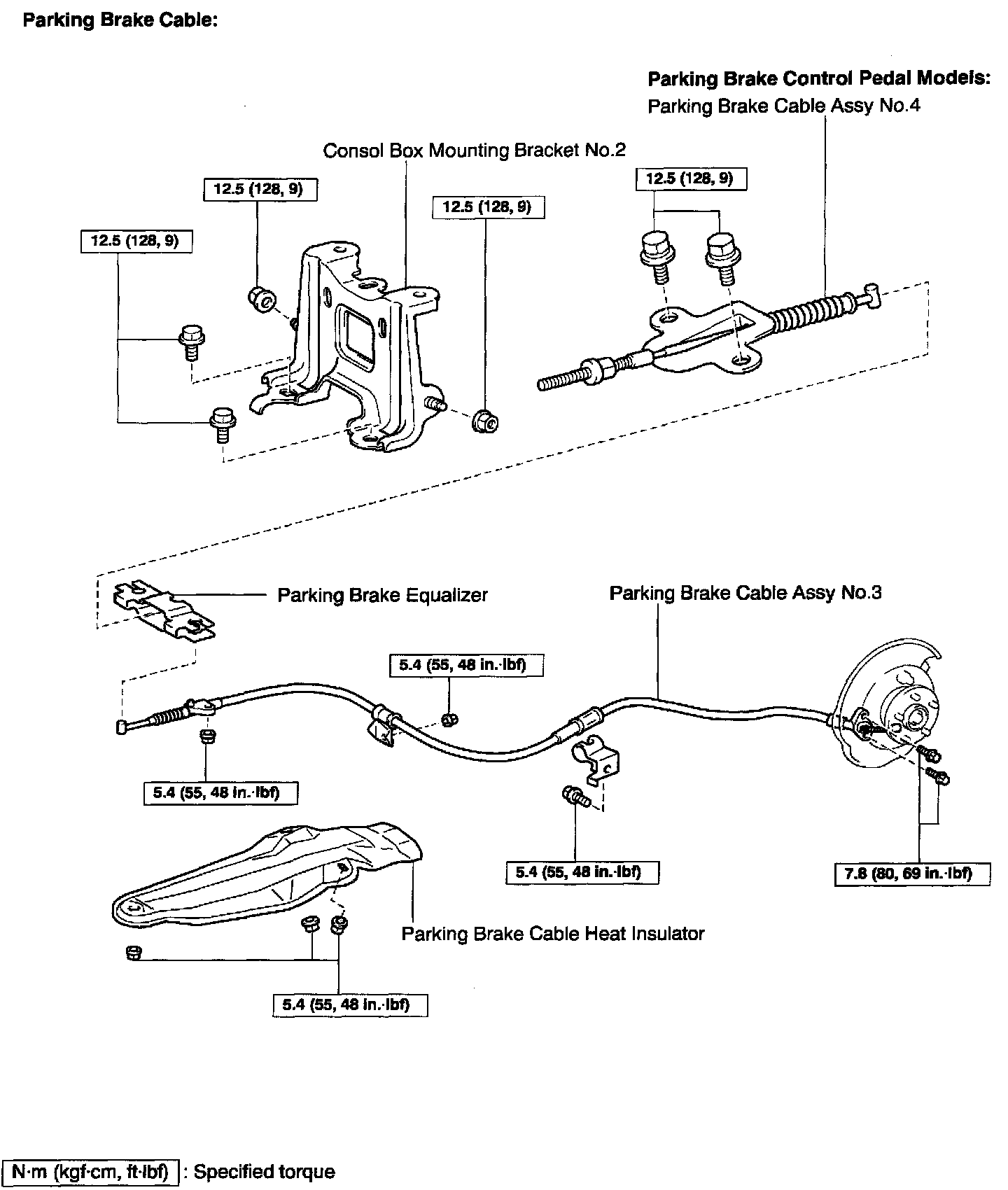

Part 2 Of 3:

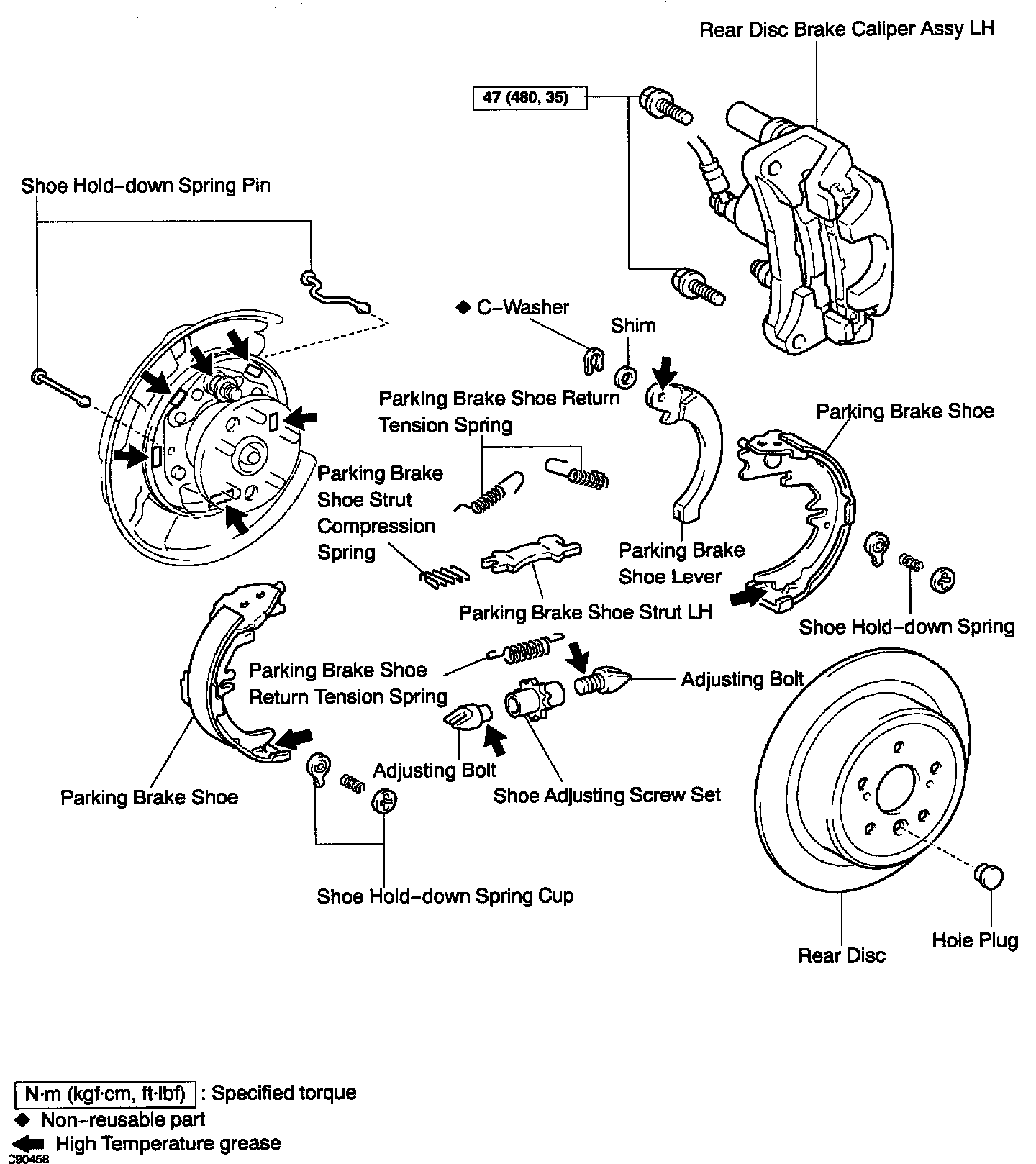

Part 3 Of 3:





PARKING BRAKE REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
