Electrical Specifications

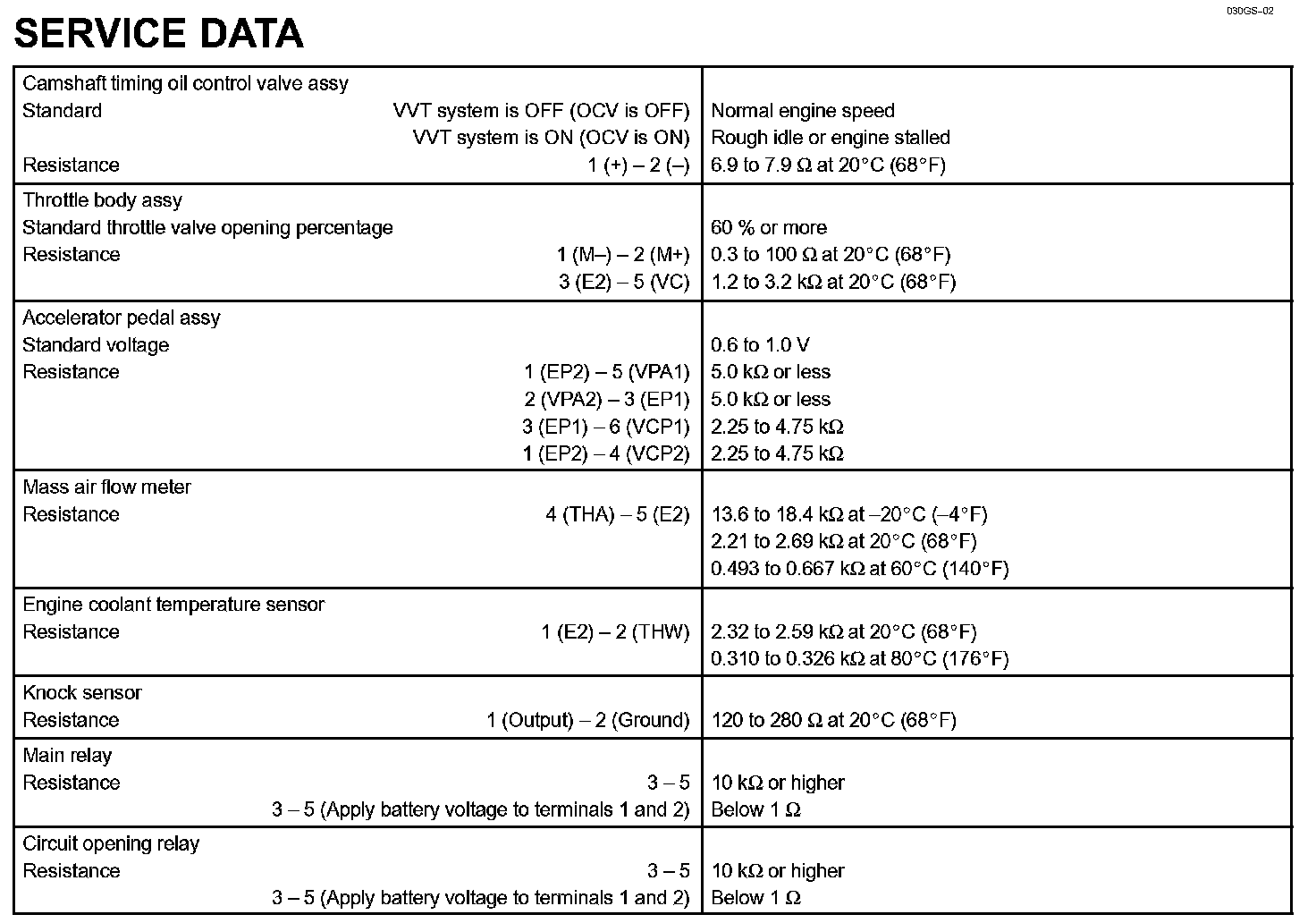

Engine Control System - Service Data:

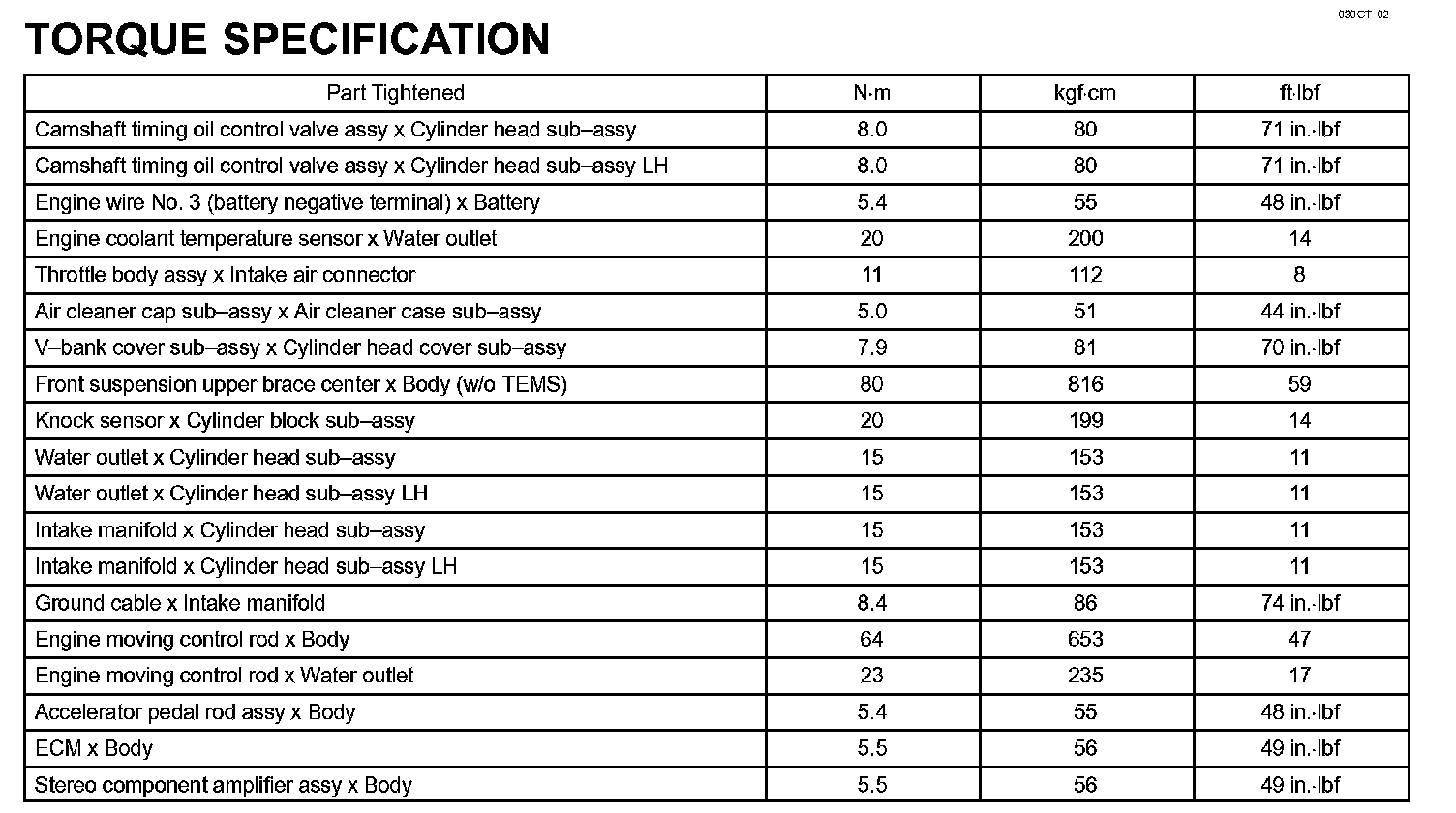

Engine Control System - Torque Specification:
