Wiper Control Module: Testing and Inspection

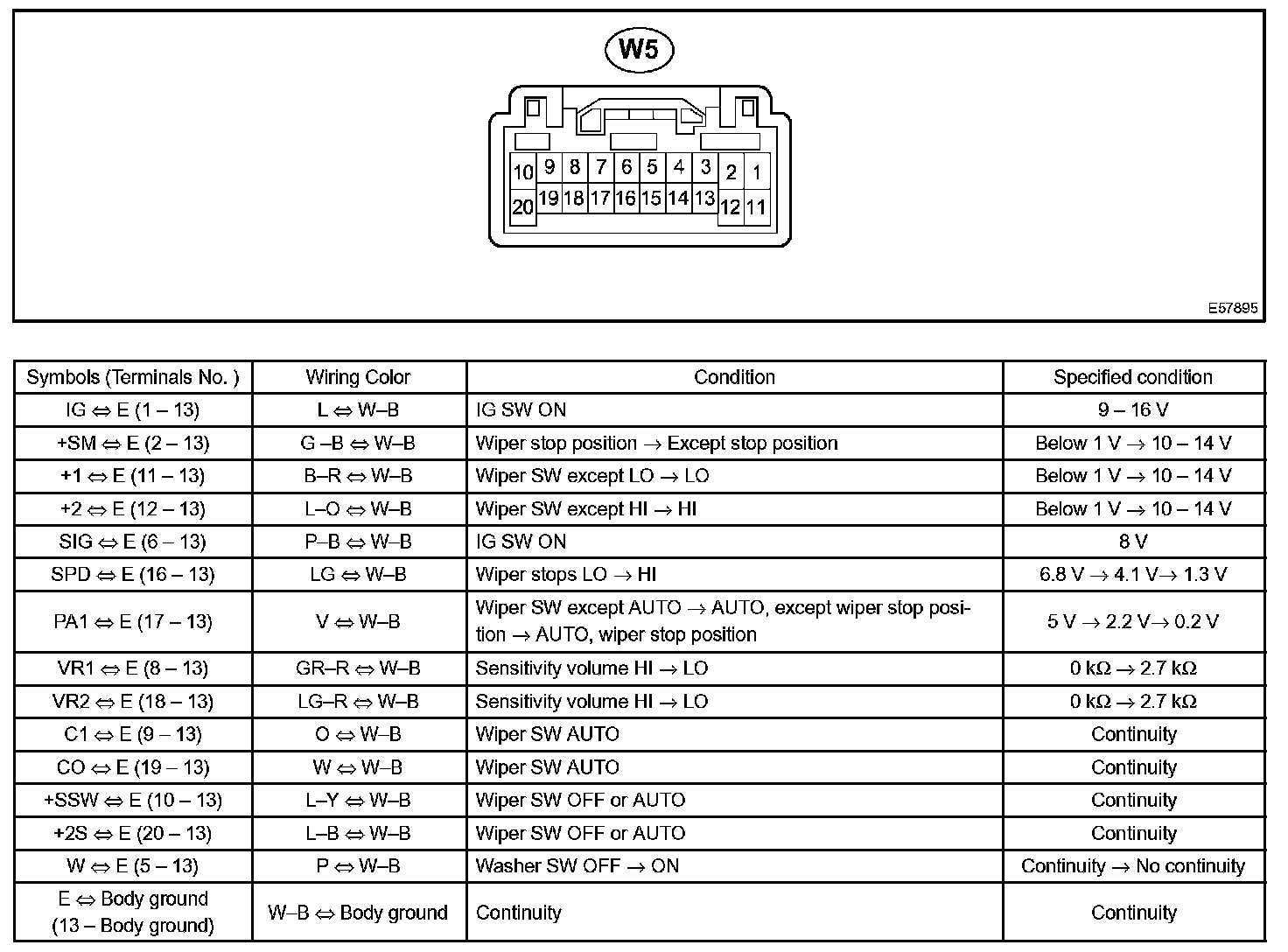

Terminals Of ECU/Pinouts - Windshield Wiper Relay Assy:

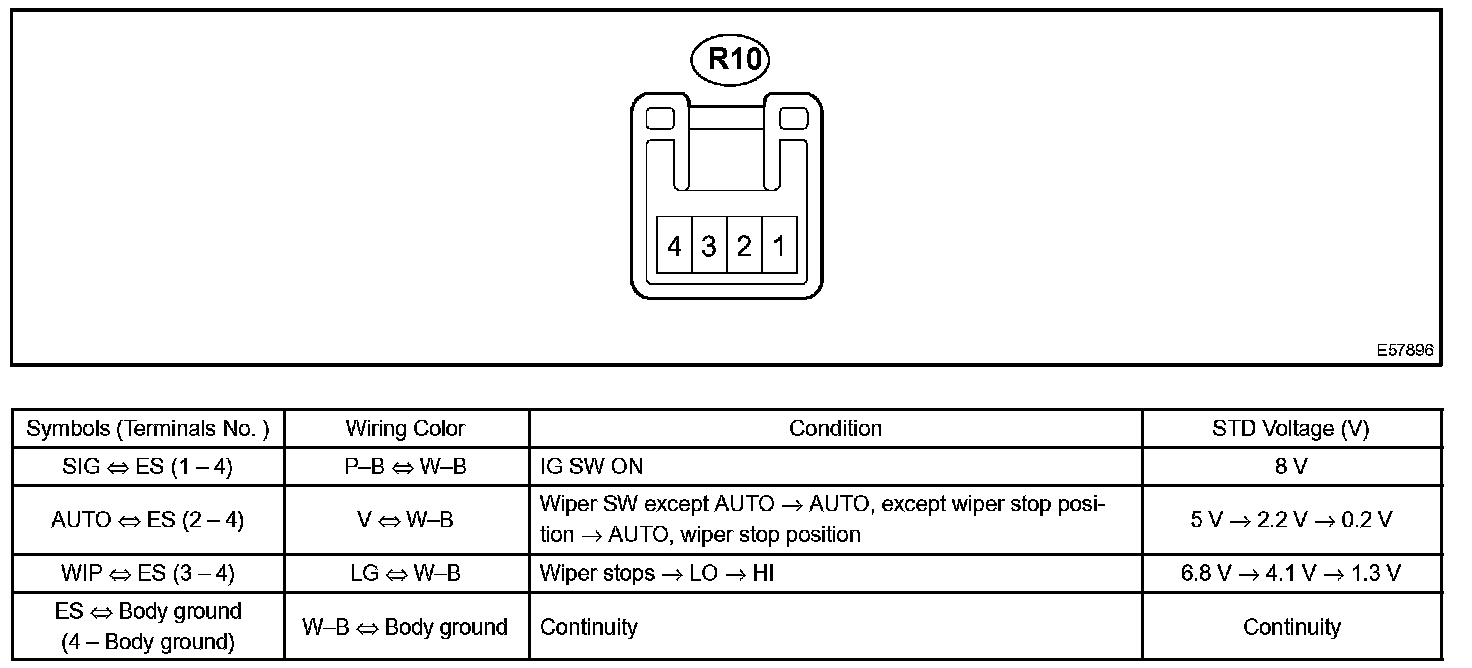

Terminals Of ECU/Pinouts - Rain Sensor:
