Front Door: Adjustment

HINT:

In the RH side, work in the same procedure as in the LH side.

HINT:

Since the centering bolt is used as a door hinge set bolt, the door can not be adjusted with it on. Substituting a bolt with washer for the centering bolt will allow for adjustment of the hood hinges and hood lock.

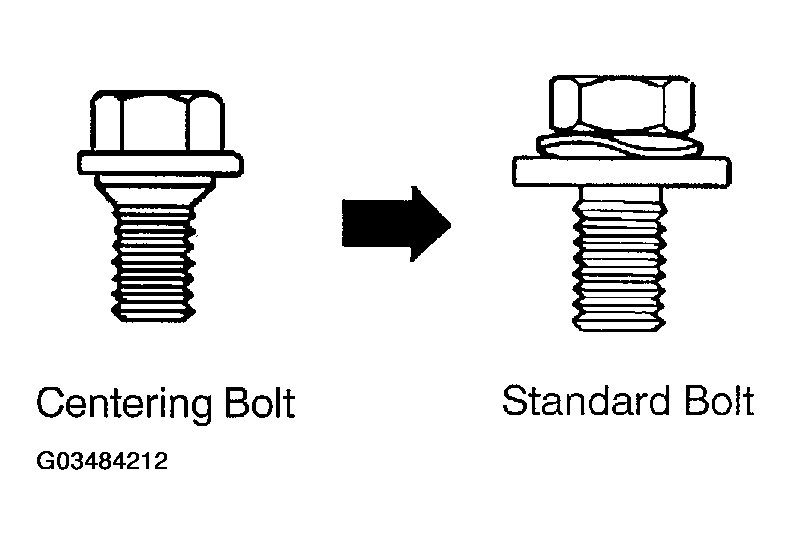

Fig 1: Identifying Centering Bolt And Standard Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT FRONT DOOR PANEL SUB-ASSY LH

Check that the clearance is within the standard value.

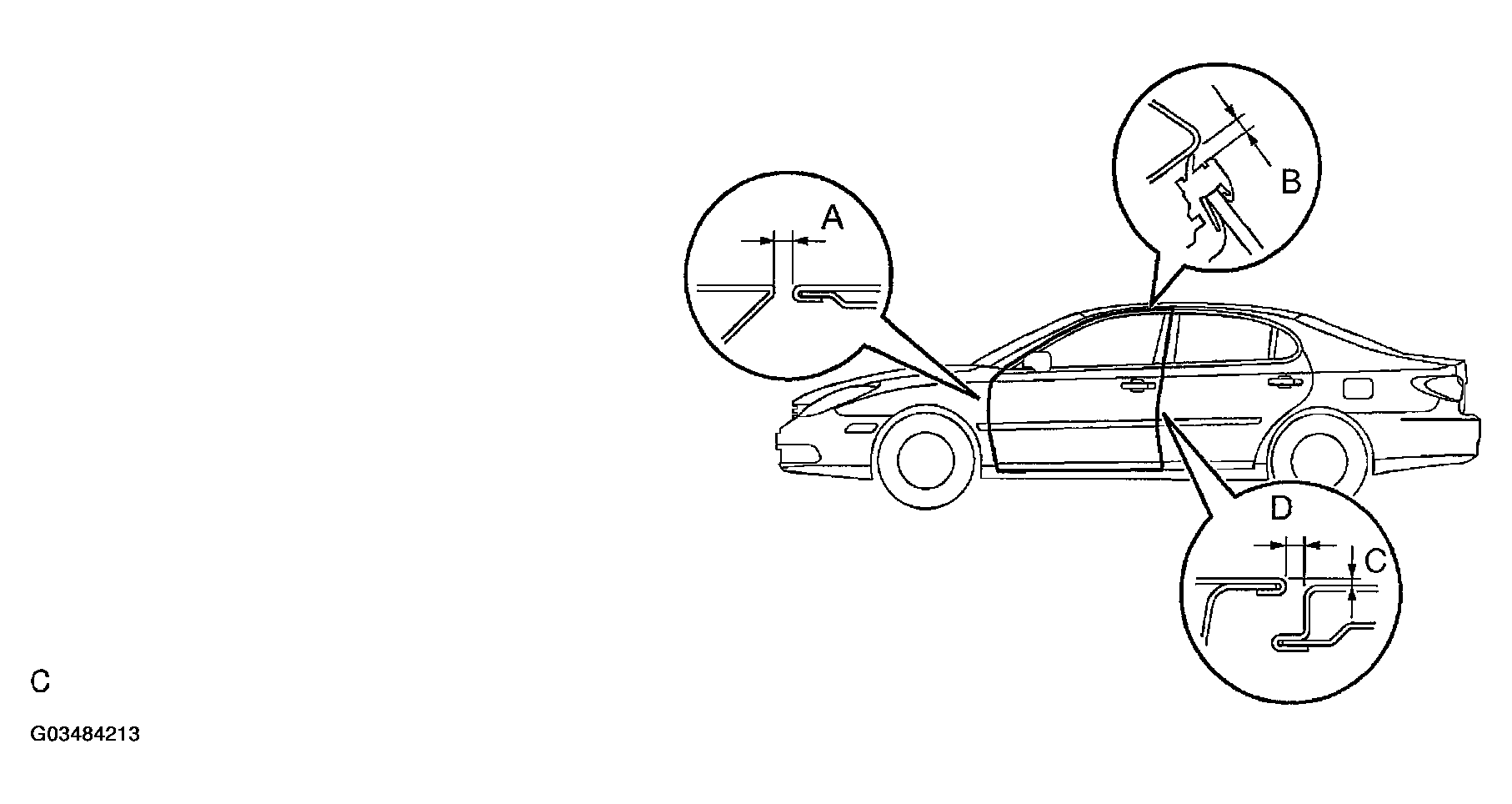

Fig 2: Inspecting Front Door Panel Sub-Assy LH

Standard:

FRONT DOOR PANEL SUB-ASSY LH MEASUREMENT AREA SPECIFICATION

Area	Measurement	Area	Measurement
A	4.2 +/- 1.2 mm (0.165 +/- 0.047 in.)	C	0.0 +/- 1.5 mm (0.000 +/- 0.059 in.)
B	5.3 +/- 1.5 mm (0.209 +/- 0.059 in.)	D	4.7 +/- 1.5 mm (0.185 +/- 0.059 in.)

ADJUST FRONT DOOR PANEL SUB-ASSY LH
1. Using SST, horizontally and vertically adjust the door by loosening the body side hinge bolts.
  SST 09812-00010, 09812-00020
2. Tighten the body side hinge bolts after adjustment.
  Torque: 26 N.m (265 kgf.cm, 19 ft.lbf)

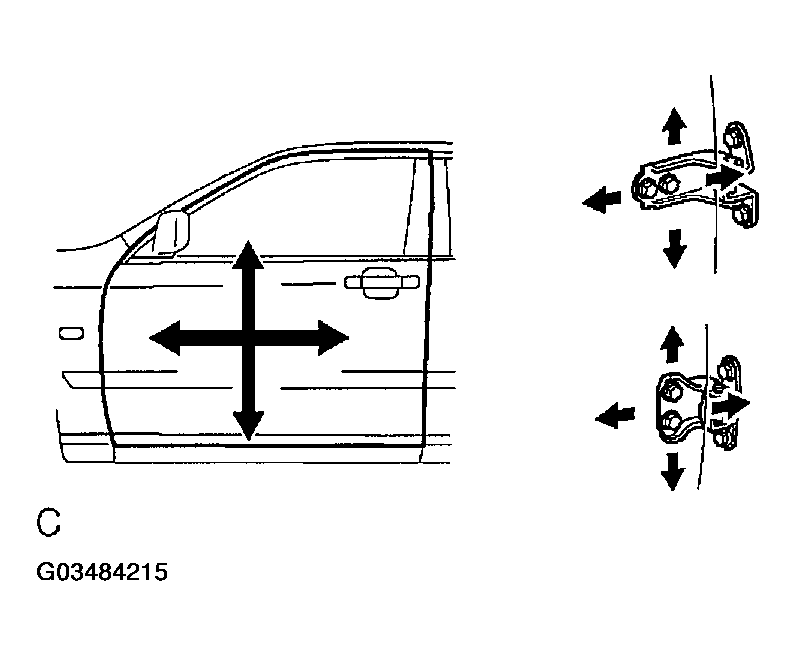

  Fig 3: Adjusting Front Door By Loosening Body Side Hinge Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Adjust the door forward/rearward and vertically by loosening the door side hinge bolts.
4. Tighten the door side hinge bolts after adjustment.
  Torque: 26 N.m (265 kgf.cm, 19 ft.lbf)

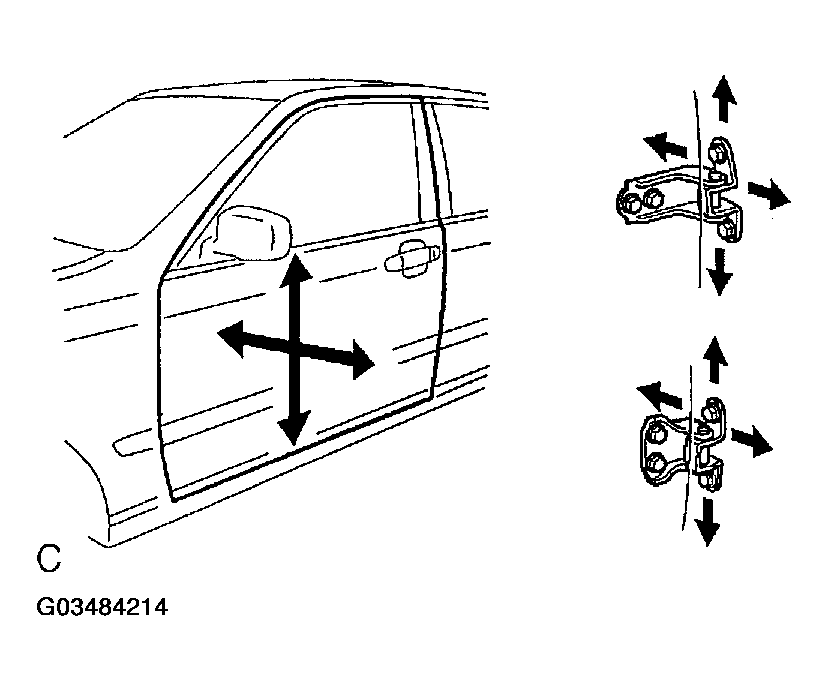

  Fig 4: Tightening Door Side Hinge Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Using a roof-moulding remover, remove the door lock striker cover front.

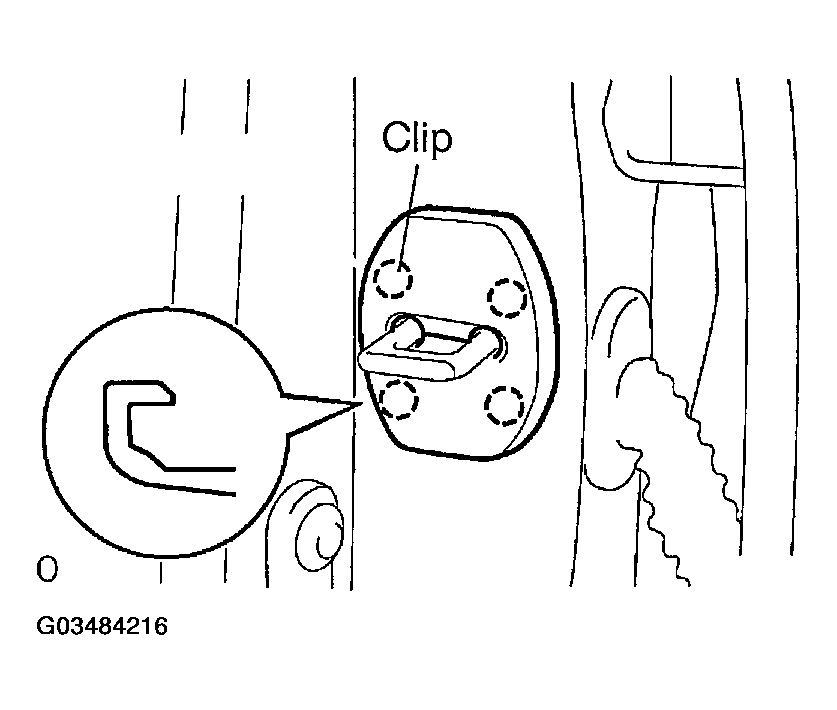

  Fig 5: Removing Door Lock Striker Cover Front
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Adjust the striker position by slightly loosening the striker mounting screws, and hit the striker with a brass bar and hammer.
7. Tighten the striker mounting screws again.
  Torque: 23 N.m (235 kgf.cm, 17 ft.lbf)

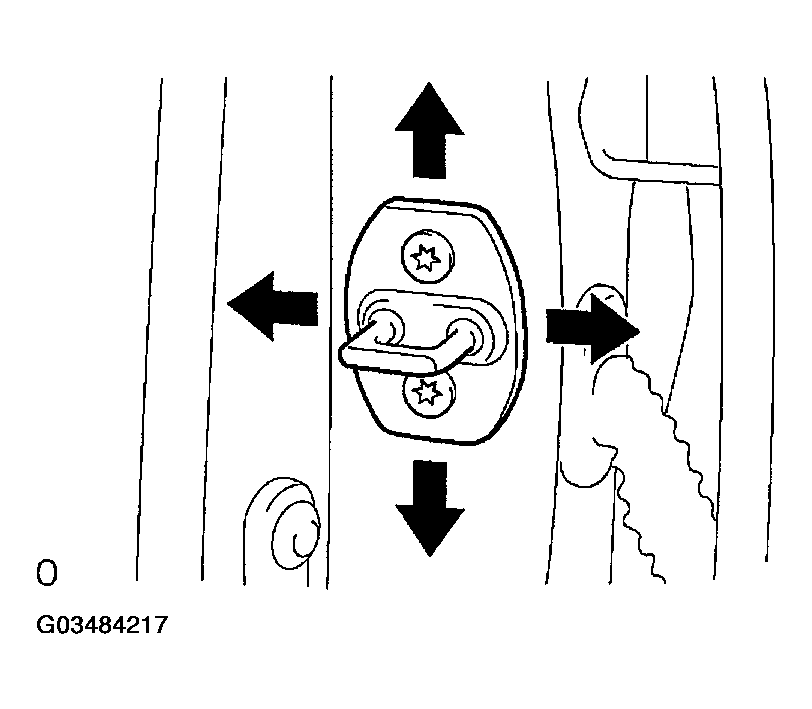

  Fig 6: Loosening/Tightening Striker Mounting Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
