Rear Door: Adjustment

HINT:

• Installation is in the reverse order of removal. But when there is a special point concerning installation, it is indicated.
• In the RH side, work in the same procedure as in the LH side.

HINT:

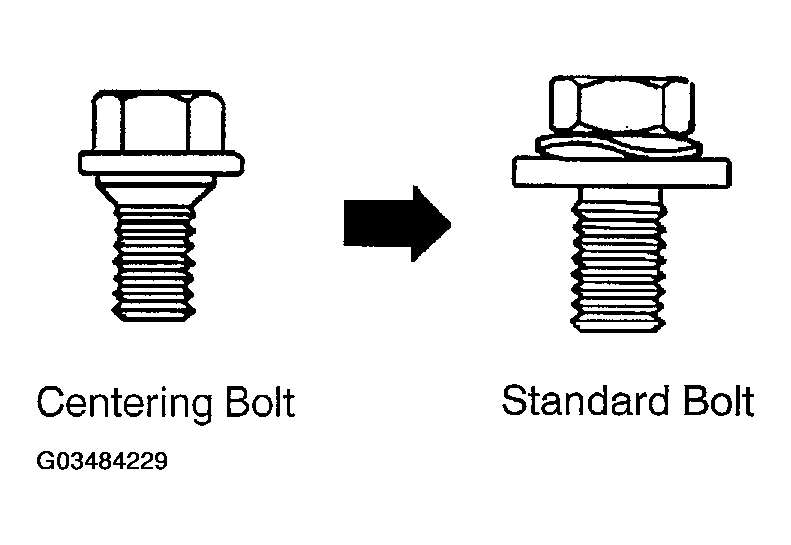

Since the centering bolt is used as a door hinge set bolt, the door can not be adjusted with it on. Substituting a bolt with washer for the centering bolt will allow for adjustment of the hood hinges and hood lock.

Fig 1: Identifying Centering Bolt And Standard Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. INSPECT REAR DOOR PANEL SUB-ASSY LH
   1. Check that the clearance is within the standard value.
      Fig 2: Inspecting Rear Door Panel Sub-Assy LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      REAR DOOR PANEL SUB-ASSY LH MEASUREMENT AREA SPECIFICATION



      Area	Measurement	Area	Measurement
      A	4.7 +/- 1.5 mm (0.185 +/- 0.059 in.)	C	0.0 +/- 1.5 mm (0.000 +/- 0.059 in.)
      B	5.3 +/- 1.5 mm (0.209 +/- 0.059 in.)	D	4.2 +/- 1.5 mm (0.165 +/- 0.059 in.)

2. REMOVE FRONT DOOR SCUFF PLATE LH (See  ROOF HEADLINING ASSY  )
3. REMOVE REAR DOOR SCUFF PLATE LH (See  ROOF HEADLINING ASSY  )
4. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH (See  ROOF HEADLINING ASSY  )
5. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH (See  ROOF HEADLINING ASSY  )
6. REMOVE CENTER PILLAR GARNISH LOWER LH (See  ROOF HEADLINING ASSY  )
7. ADJUST REAR DOOR PANEL SUB-ASSY LH

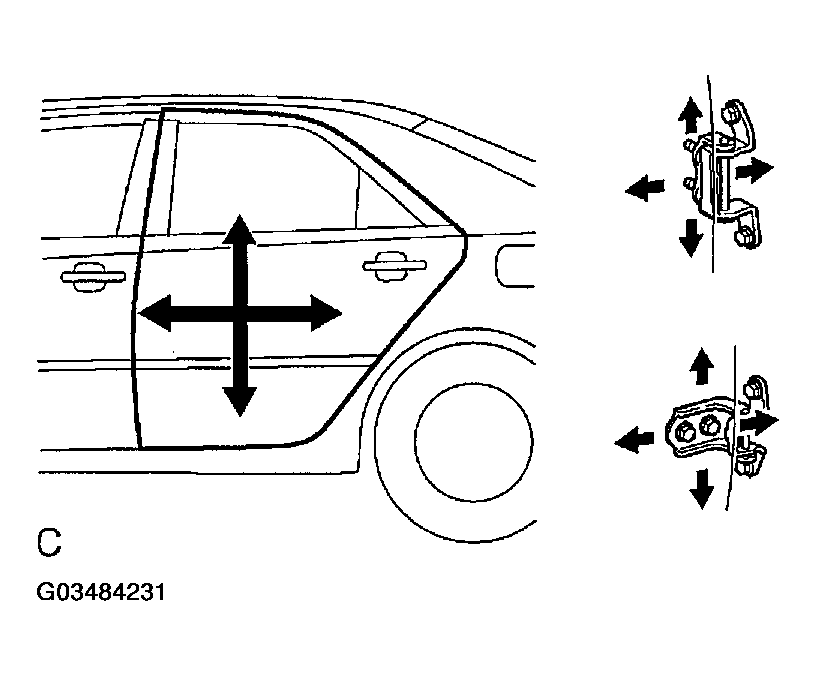

   1. Adjust the door forward/rearward and vertically by loosening the body side hinge bolts.
   2. Tighten the body side hinge bolts after adjustment.

      Torque: 26 N.m (265 kgf.cm, 19 ft lbf)

      Fig 3: Adjusting Rear Door Panel Sub-Assy LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

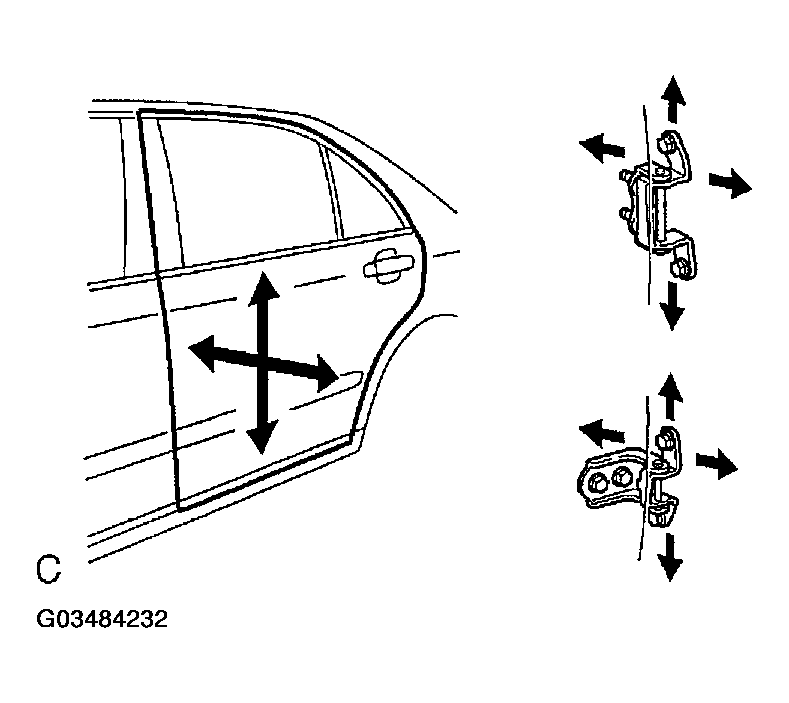

   3. Horizontally and vertically adjust the door by loosening the door side hinge bolts.
   4. Tighten the body side hinge bolts after adjustment.

      Torque: 26 N.m (265 kgf.cm, 19 ft lbf)

      Fig 4: Tightening Body Side Hinge Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

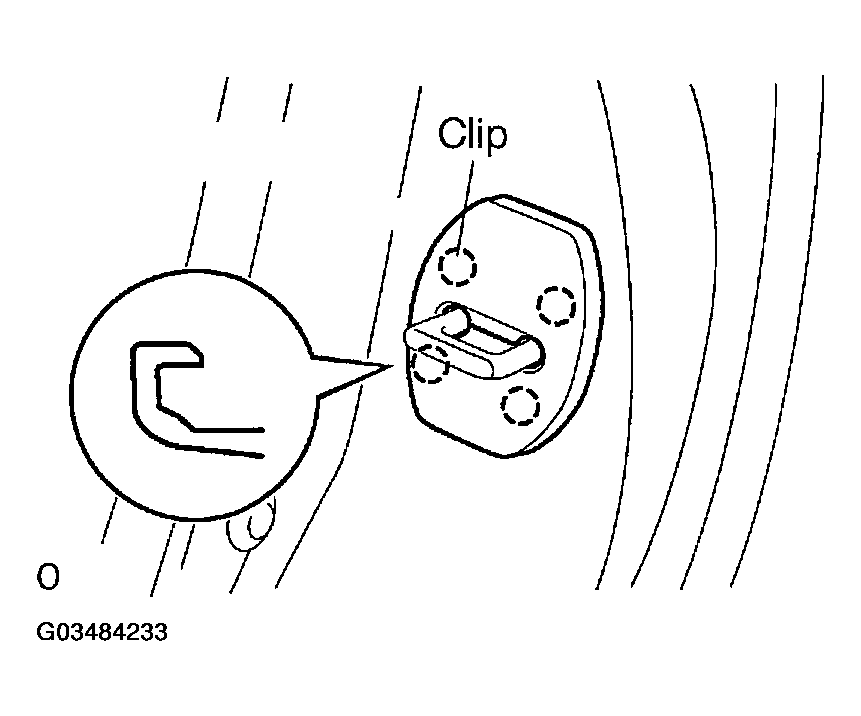

   5. Using a roof-moulding remover, remove the door lock striker cover rear.
      Fig 5: Removing Door Lock Striker Cover Rear

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

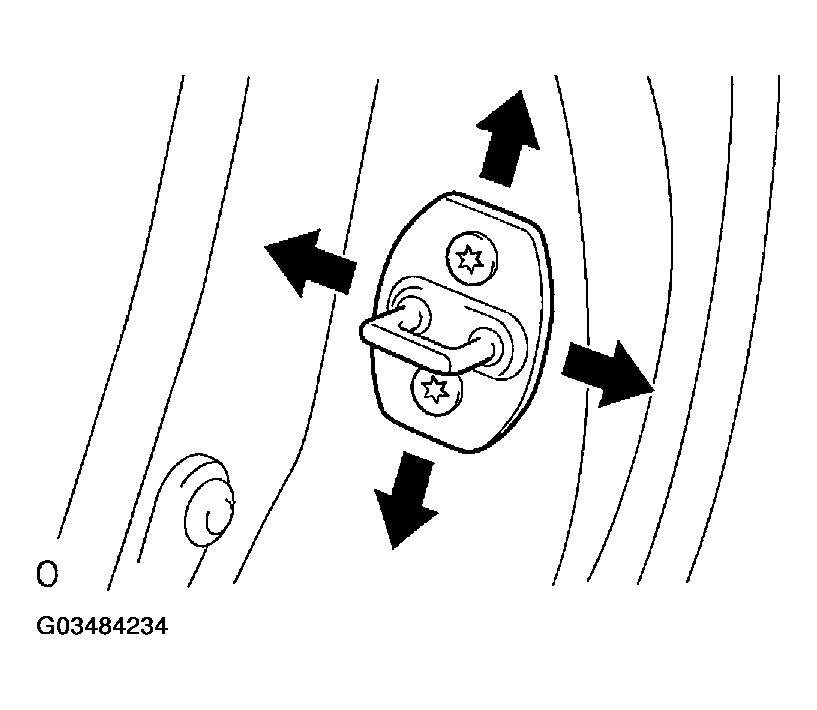

   6. Adjust the striker position by slightly loosening the striker mounting screws, and hitting the striker with a brass bar and a hammer.
   7. Tighten the striker mounting screws again.

      Torque: 23 N.m (235 kgf.cm, 17 ft lbf)

      Fig 6: Tightening Striker Mounting Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
