Clock ASSY: Replacement

HINT:

See COMPONENTS

1. SHIP MODE SETTING (W/CD CHANGER) (See  REPLACEMENT  )
2. DISCONNECT BATTERY NEGATIVE TERMINAL (See  AIR BAG SAFETY PRECAUTIONS  )
3. REMOVE AIR CONDITIONER CONTROL ASSEMBLY (See  REPLACEMENT   )
4. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (See  REPLACEMENT   )
5. REMOVE CLOCK ASSY
   1. Disengage the 4 claws and remove the clock assy.

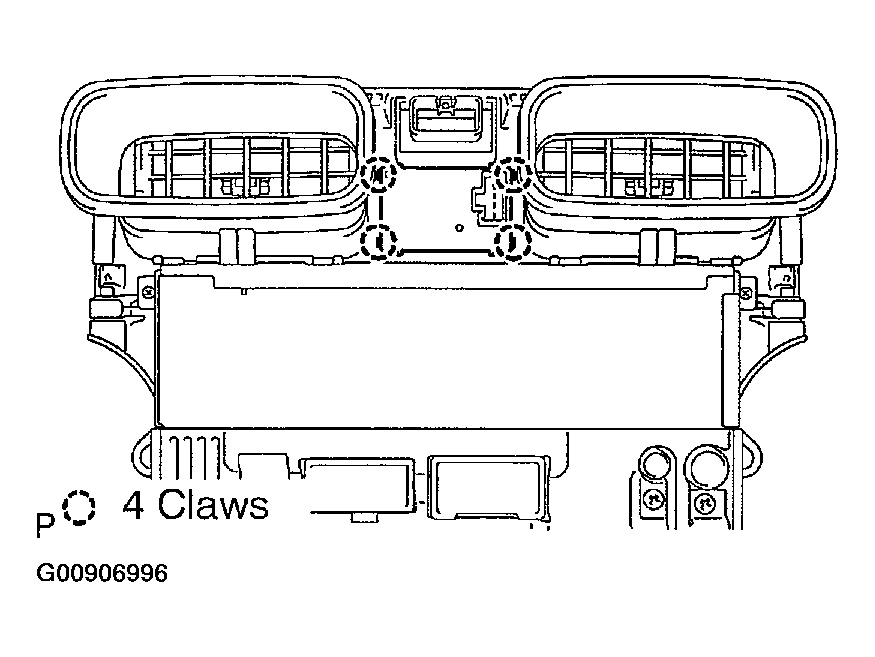

      Fig 1: Disengaging Claws And Removing Clock Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. SHIP MODE CONFIRMATION (W/CD CHANGER) (See  REPLACEMENT  )
