Ignition Or Starter Switch ASSY: Replacement

  1. REMOVE INSTRUMENT PANEL SUB-ASSY LOWER (See  REPLACEMENT  )
  2. REMOVE IGNITION OR STARTER SWITCH ASSY
    1. Disconnect the ignition switch connector and unlock warning switch connector.
    2. Remove the clamp.
    3. Remove the 2 screws and ignition switch.

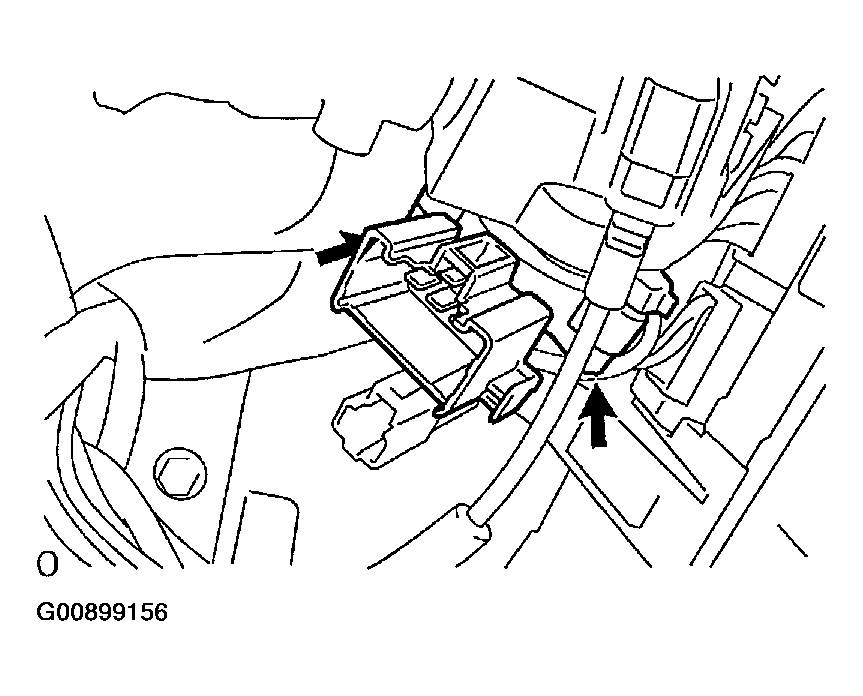

      Fig 1: Removing Ignition Or Starter Switch Assy
      G00899156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
