Engine Mechanical: Starter: Starters: Overhaul

For overhaul procedures, see Fig 1.

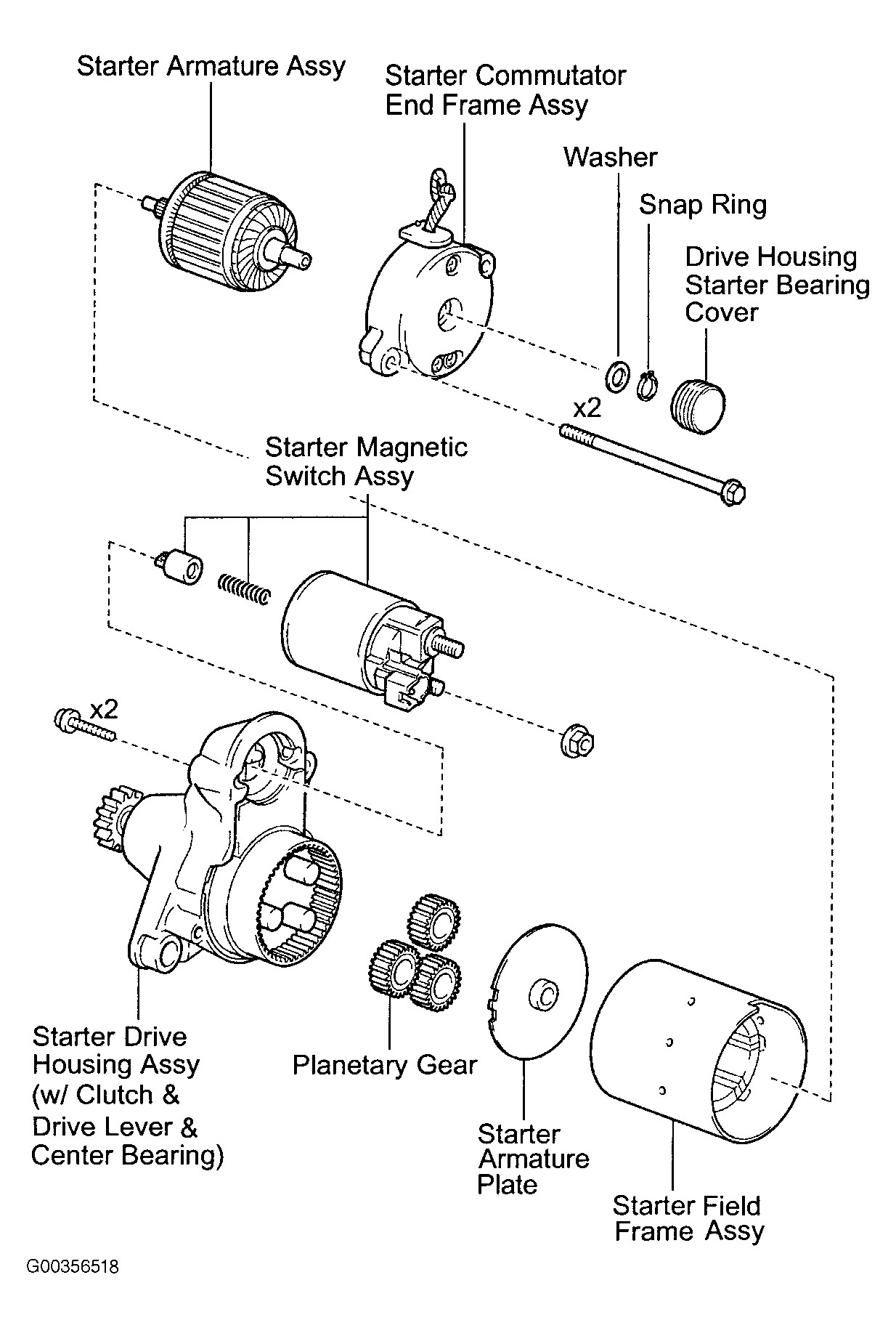

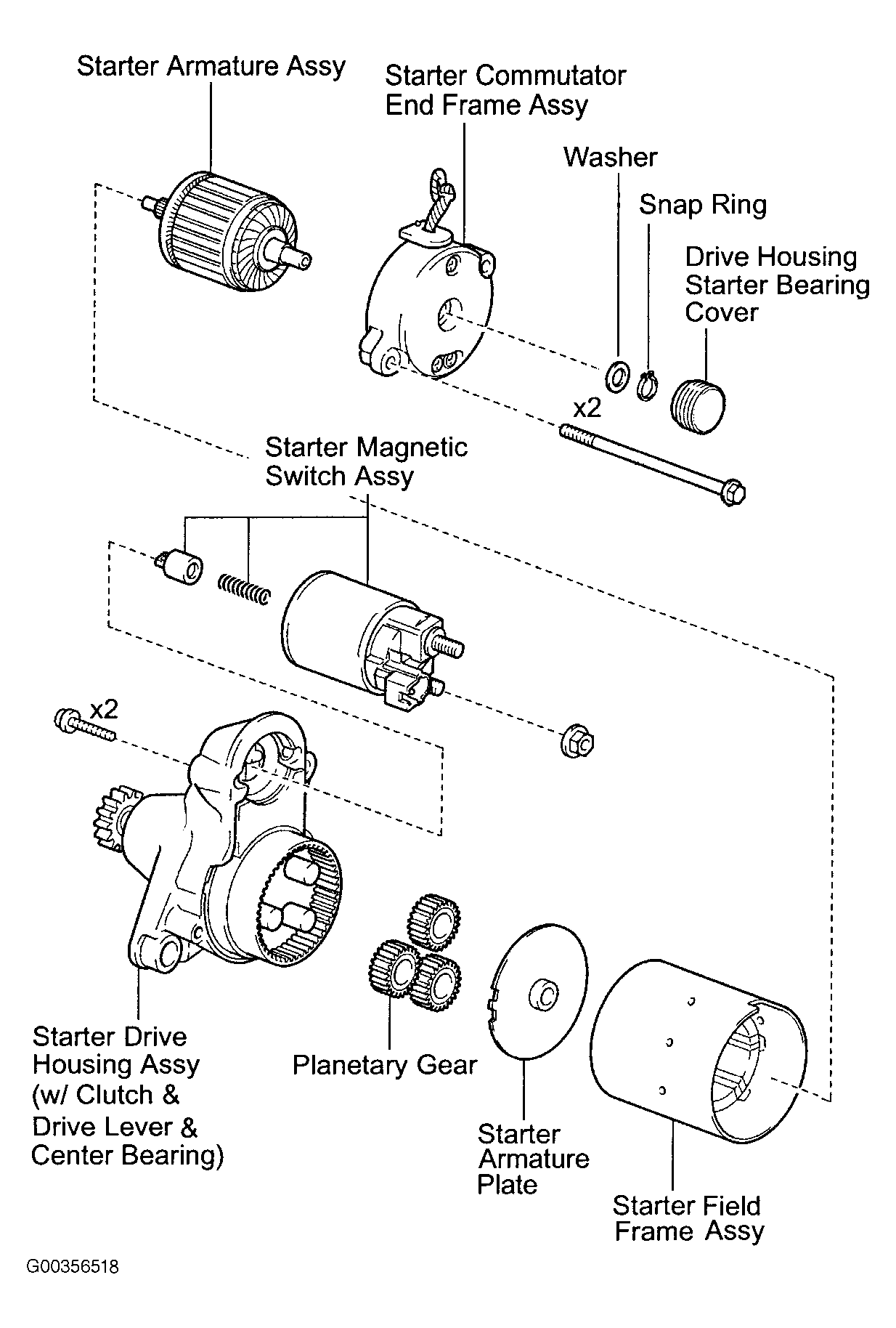

Fig 1: Exploded View of Starter Assembly
G00356518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
