Fuel Tank ASSY (3MZ-FE): Components

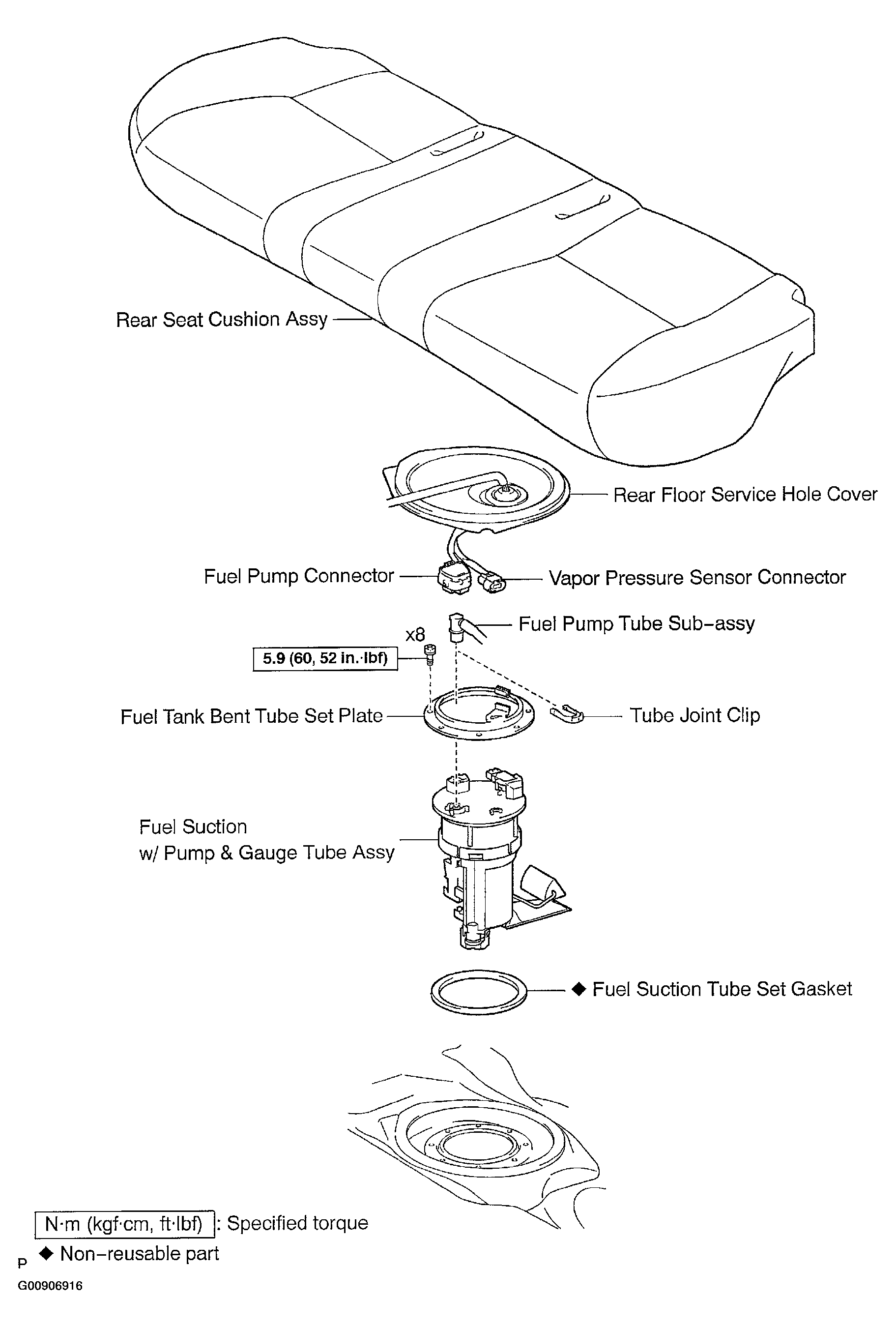

Fig 1: Identifying Fuel Tank Assy (3MZ-FE) Components (1 Of 3)
G00906916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

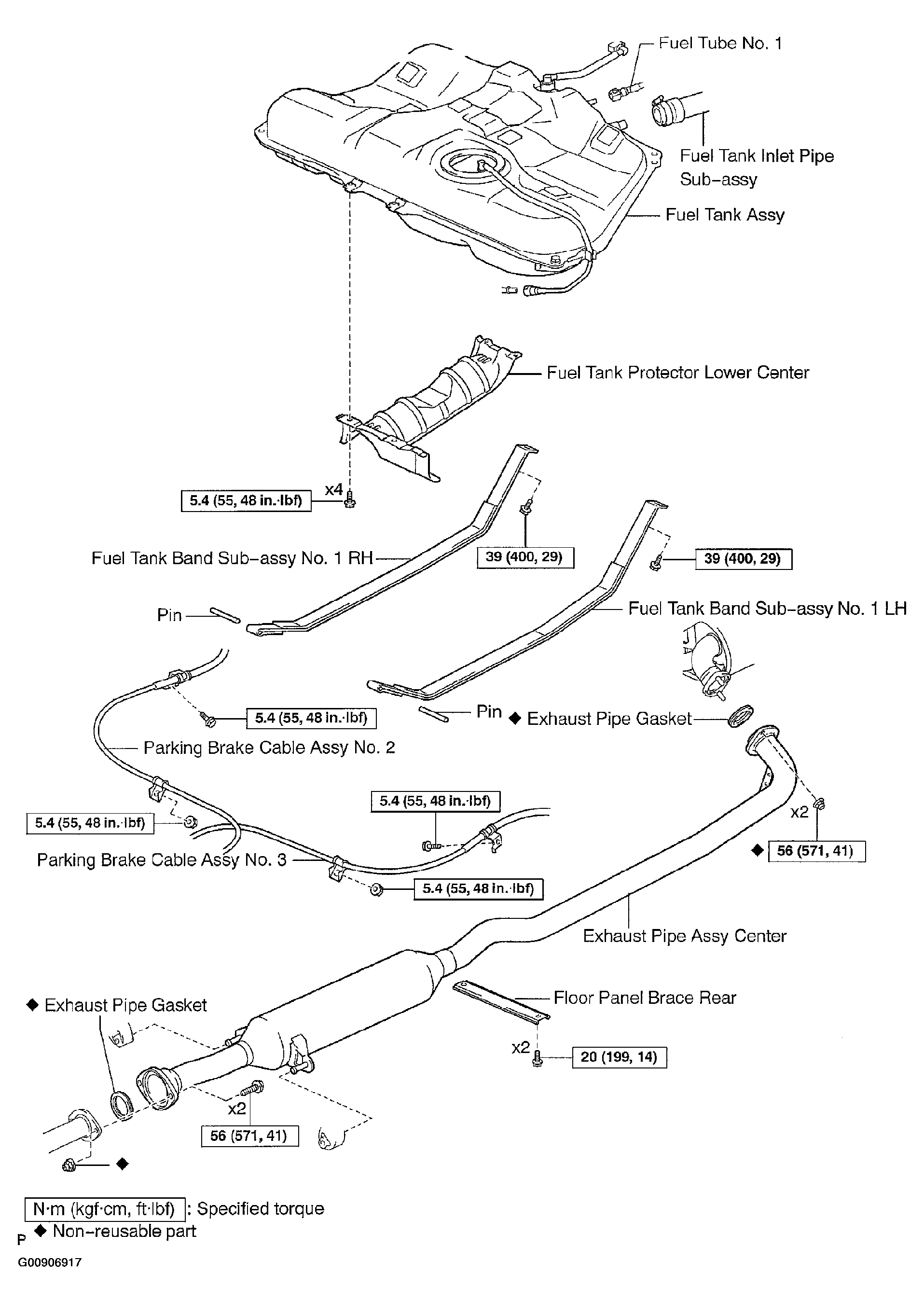

Fig 2: Identifying Fuel Tank Assy (3MZ-FE) Components (2 Of 3)
G00906917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

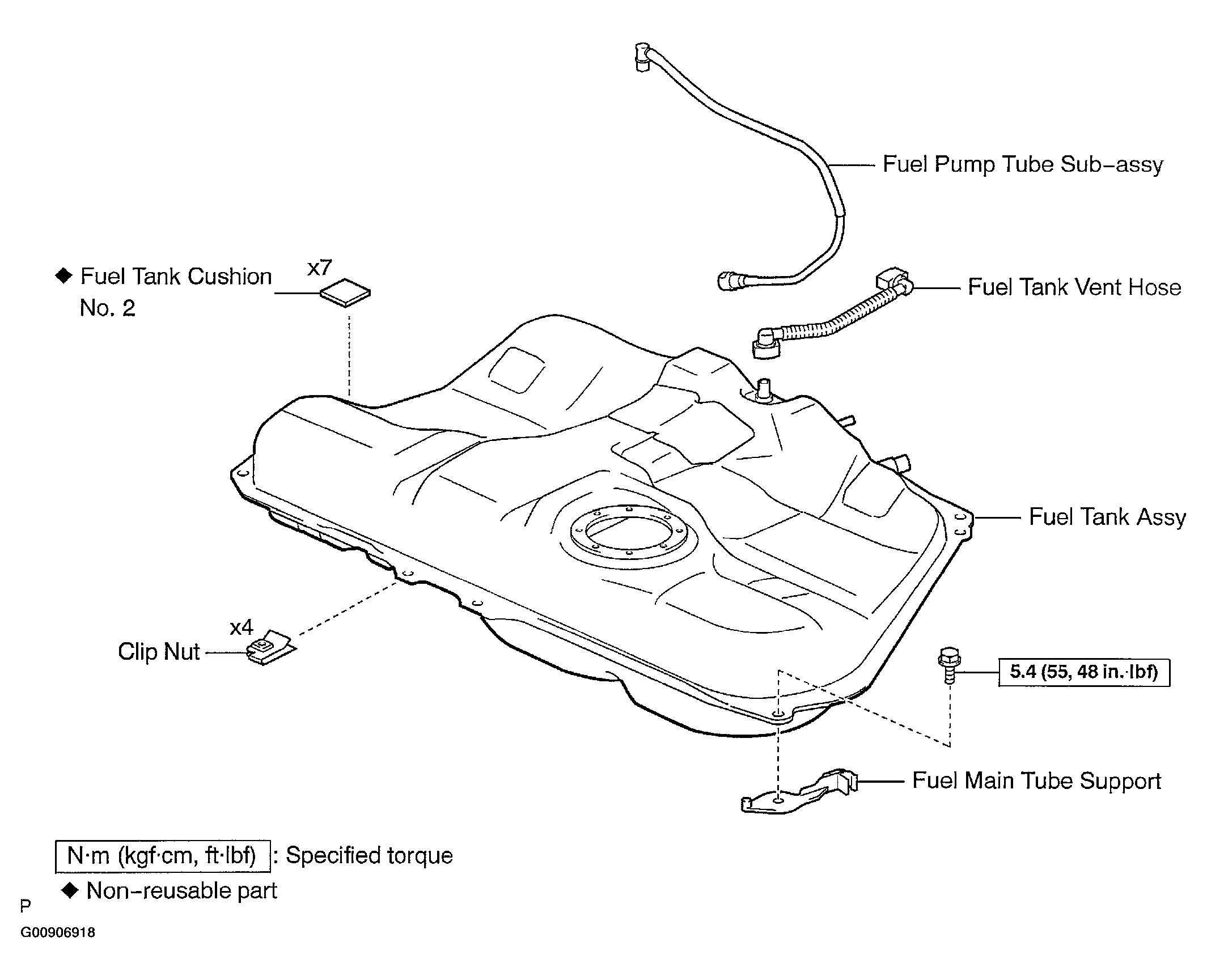

Fig 3: Identifying Fuel Tank Assy (3MZ-FE) Components (3 Of 3)
G00906918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
