Circuit Description

Refer to DTC P0100 on DTC P0100 MASS OR VOLUME AIR FLOW CIRCUIT, DTC P0102 MASS OR VOLUME AIR FLOW CIRCUIT LOW INPUT, DTC P0103 MASS OR VOLUME AIR FLOW CIRCUIT HIGH INPUT .

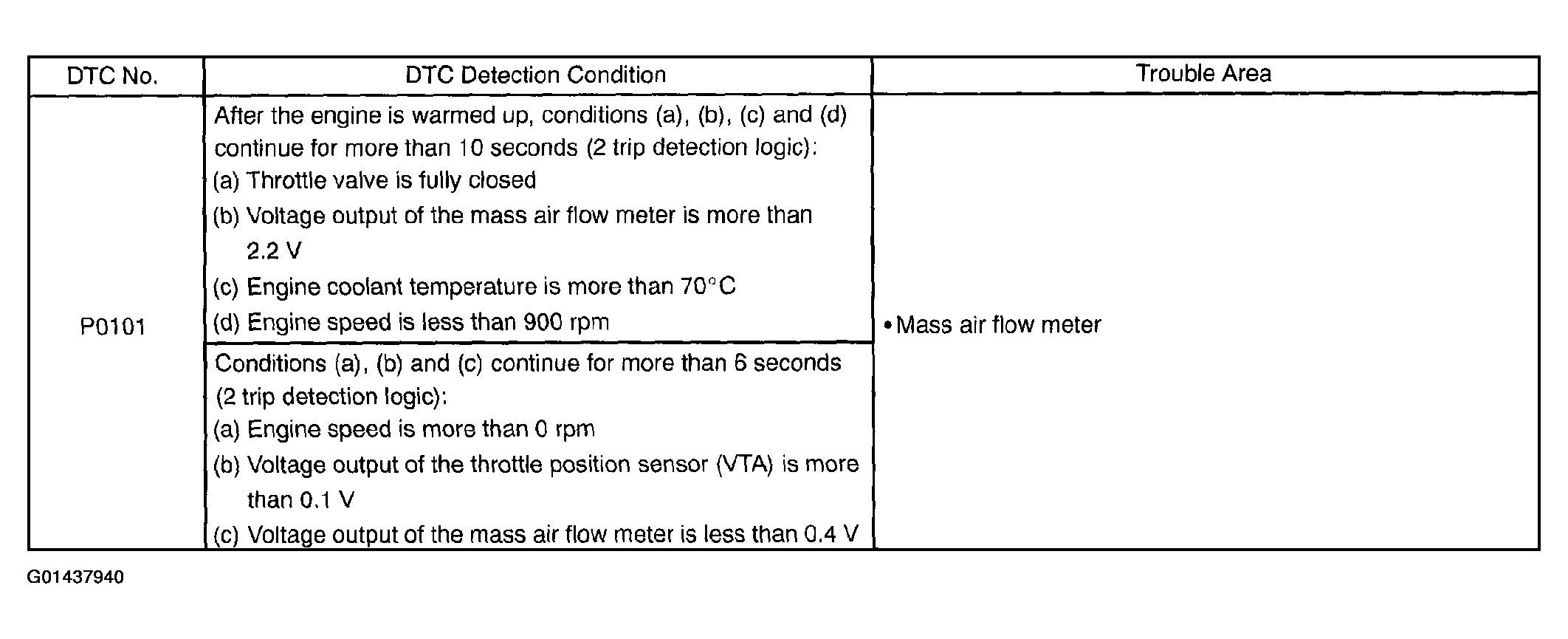

Fig 1: DTC P0101 Problem Diagnostic Chart
G01437940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
