Section 145 (Knock Sensor): Components
WARNING:
This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

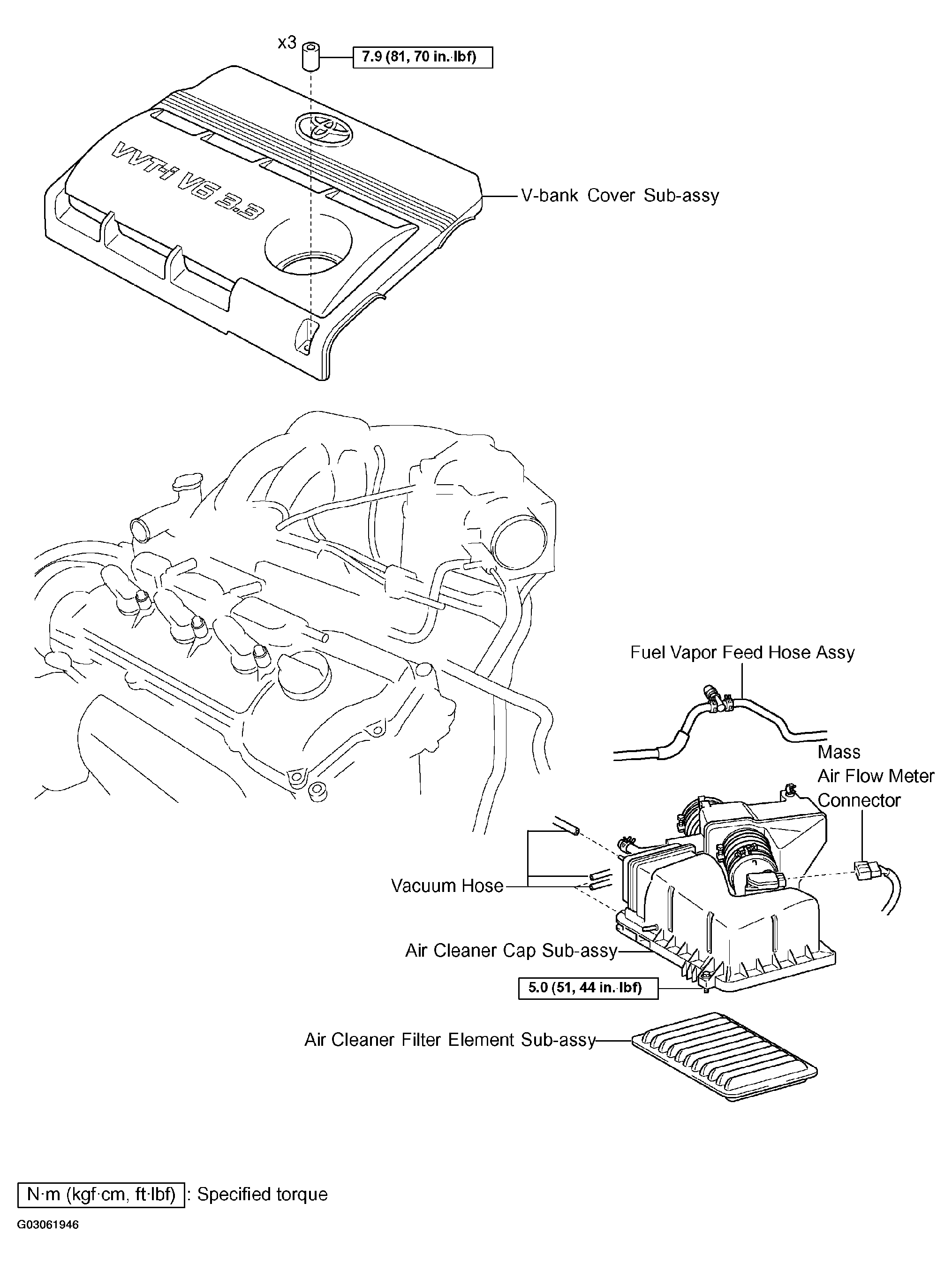

Fig 1: Identifying Components For Removal To Access Knock Sensors (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

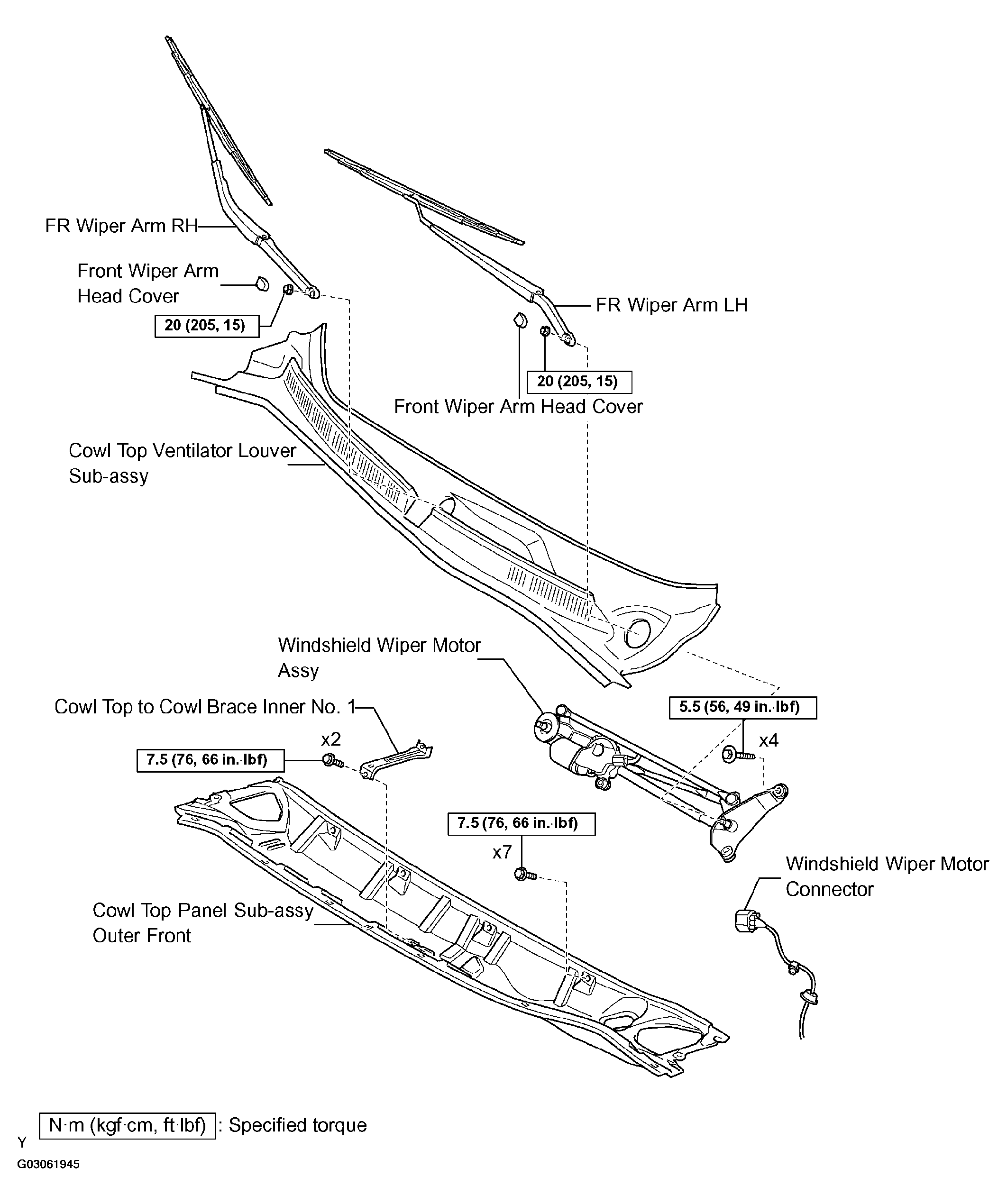

Fig 2: Identifying Components For Removal To Access Knock Sensors (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

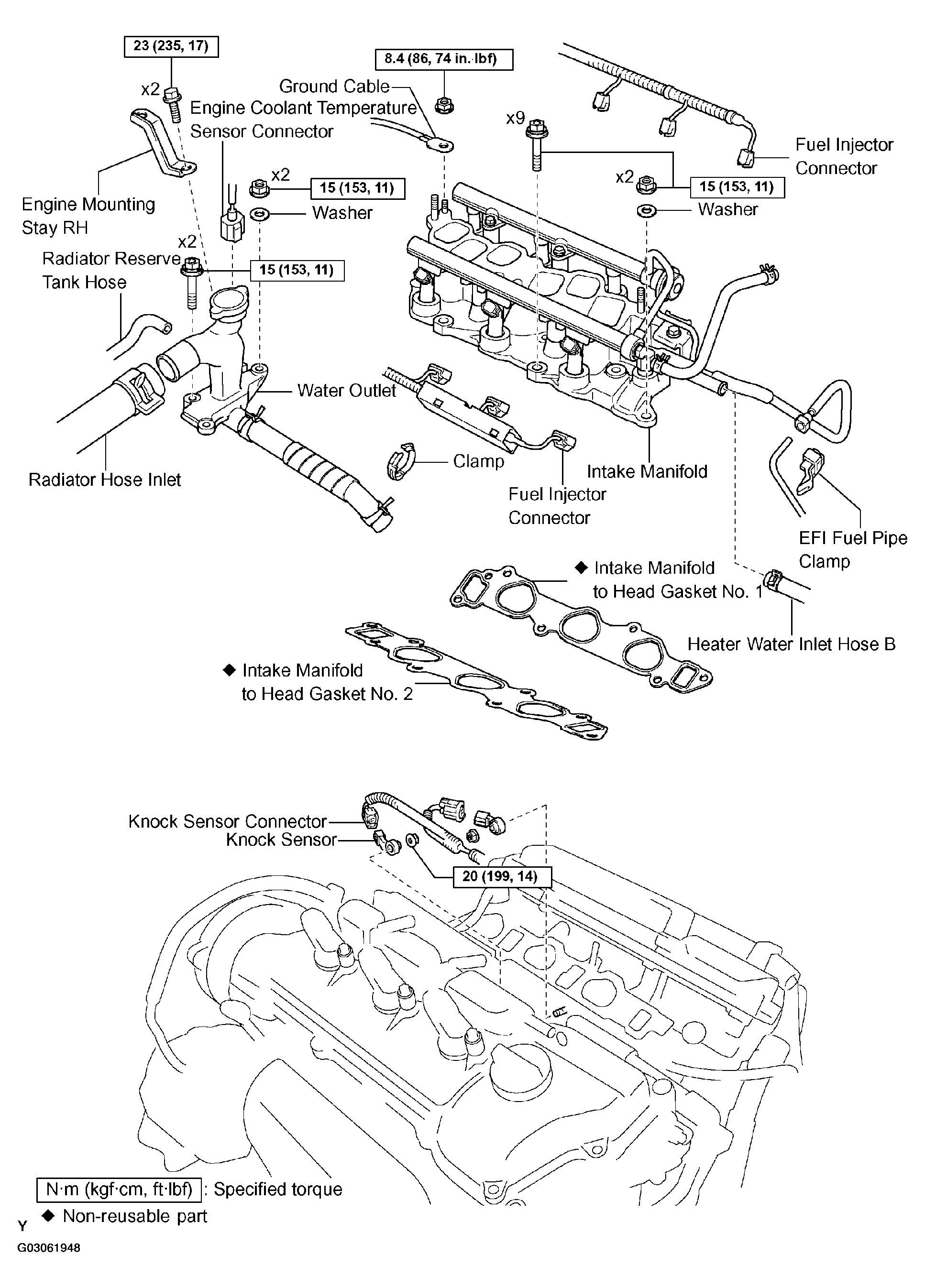

Fig 3: Identifying Components For Removal To Access Knock Sensors (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Components For Removal To Access Knock Sensors (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
