Fuel Injector Assembly: Components

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Exploded View Of Fuel Injector Assembly (1 Of 4)
G03061982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

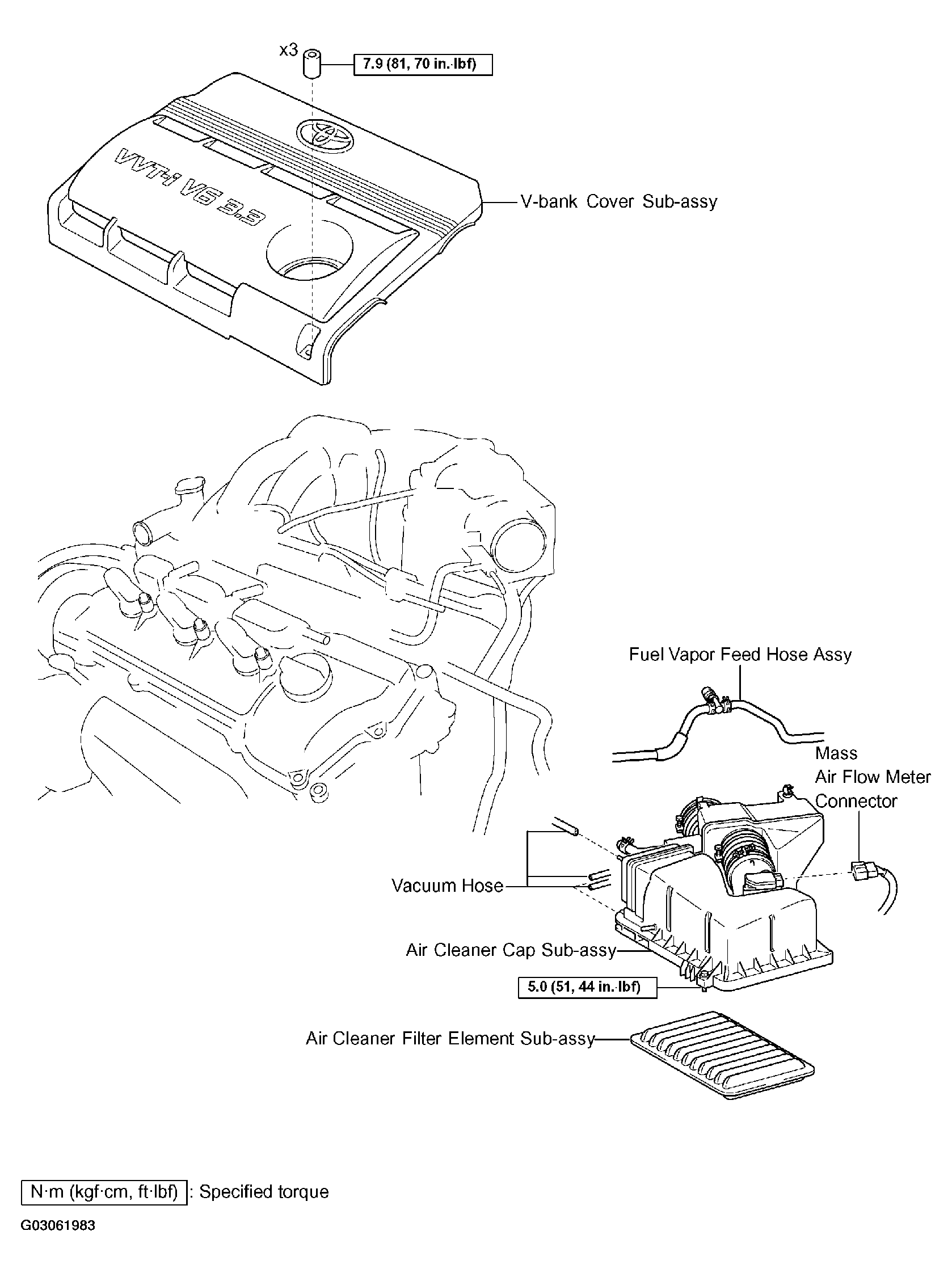

Fig 2: Exploded View Of Fuel Injector Assembly (2 Of 4)
G03061983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

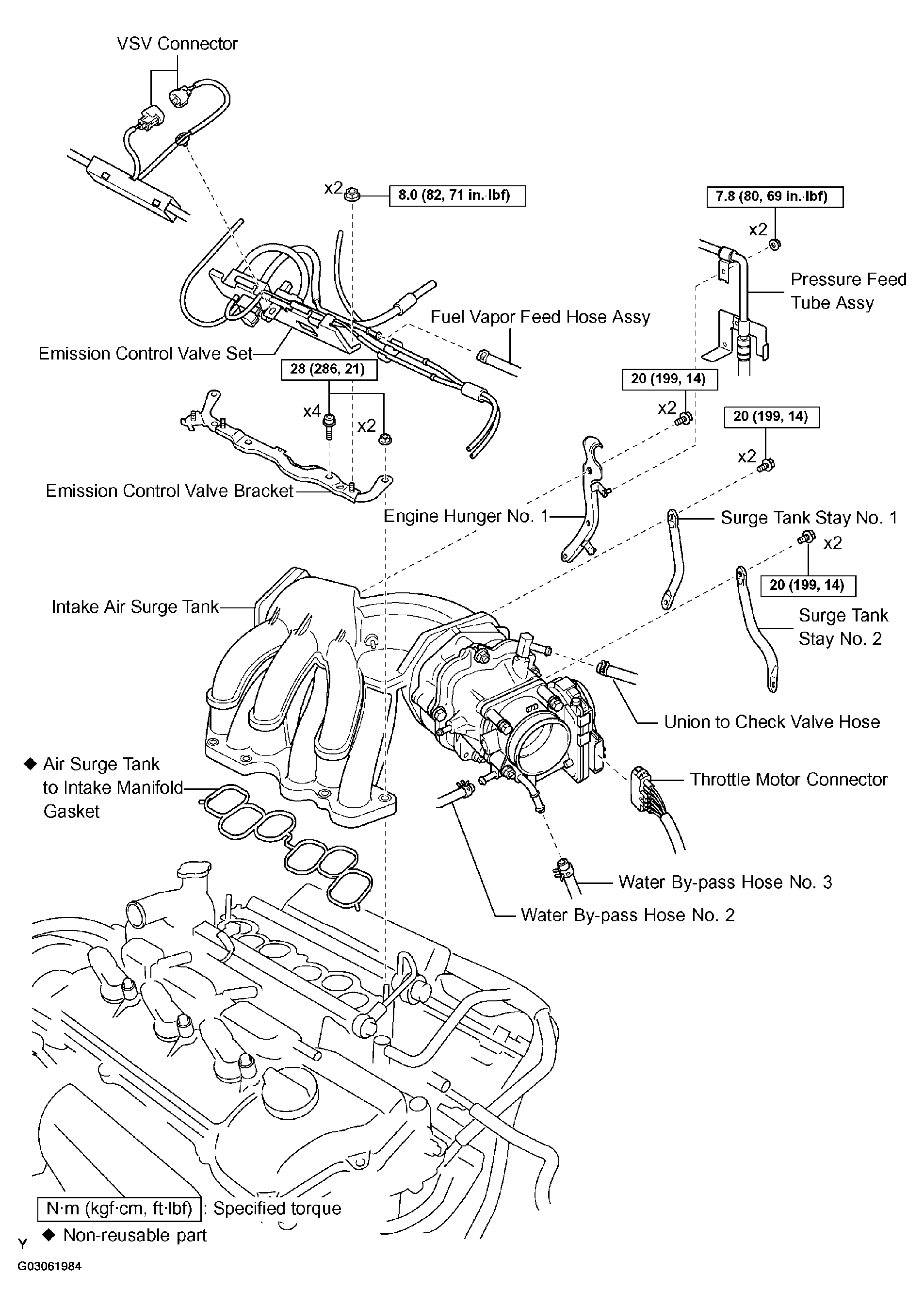

Fig 3: Exploded View Of Fuel Injector Assembly (3 Of 4)
G03061984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

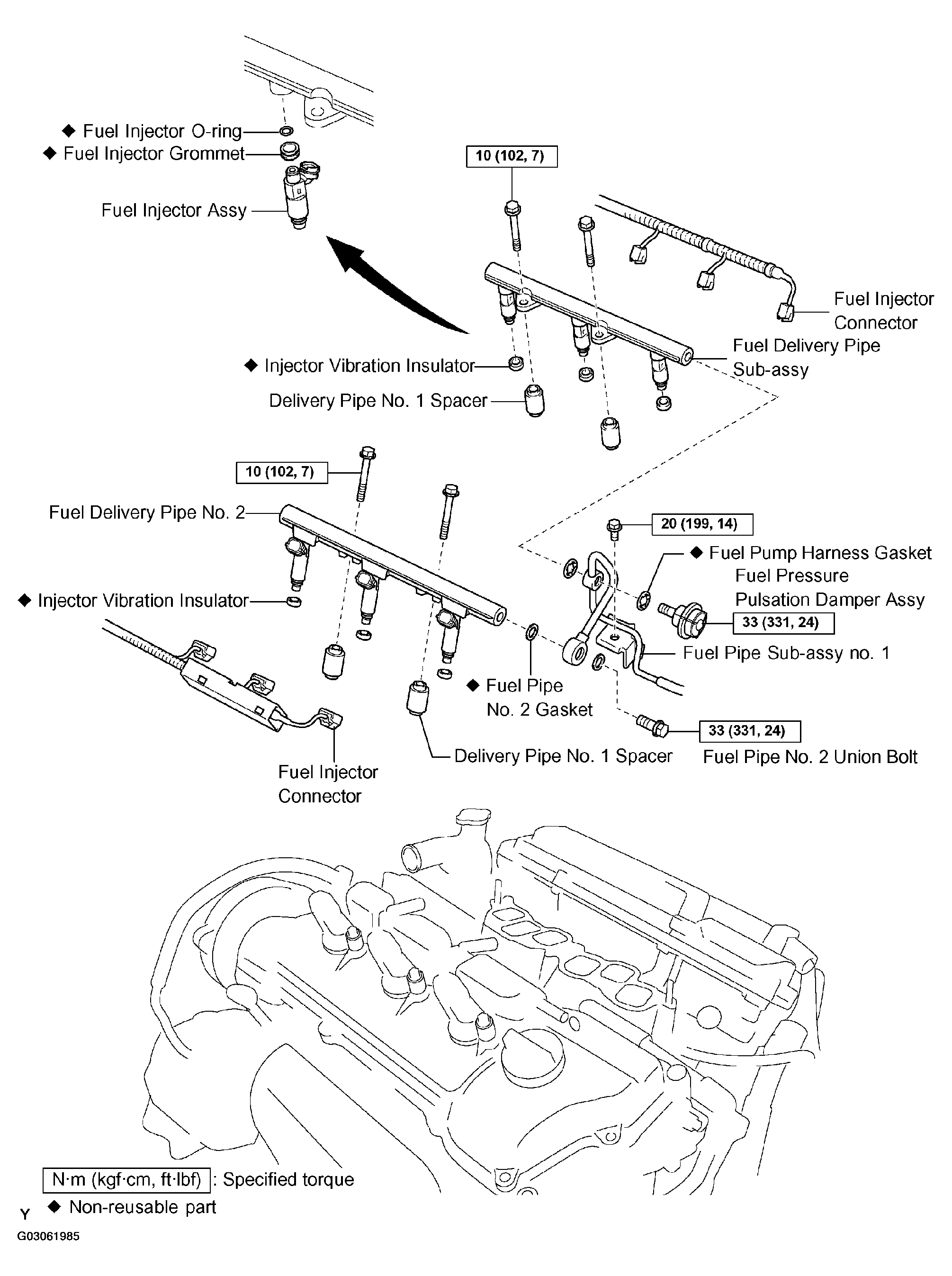

Fig 4: Exploded View Of Fuel Injector Assembly (4 Of 4)
G03061985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
