Section 154 (Partial Engine): Components

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

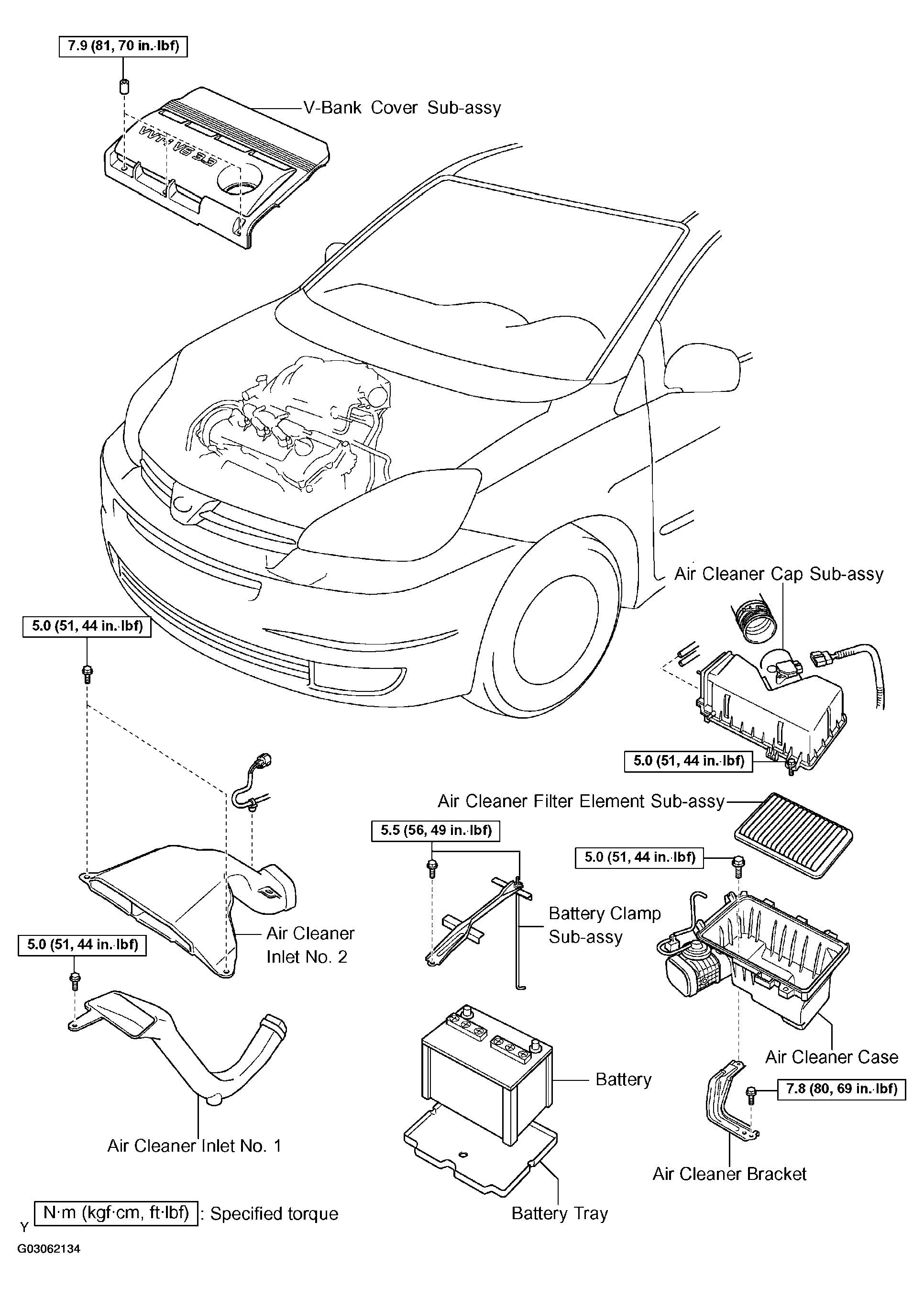

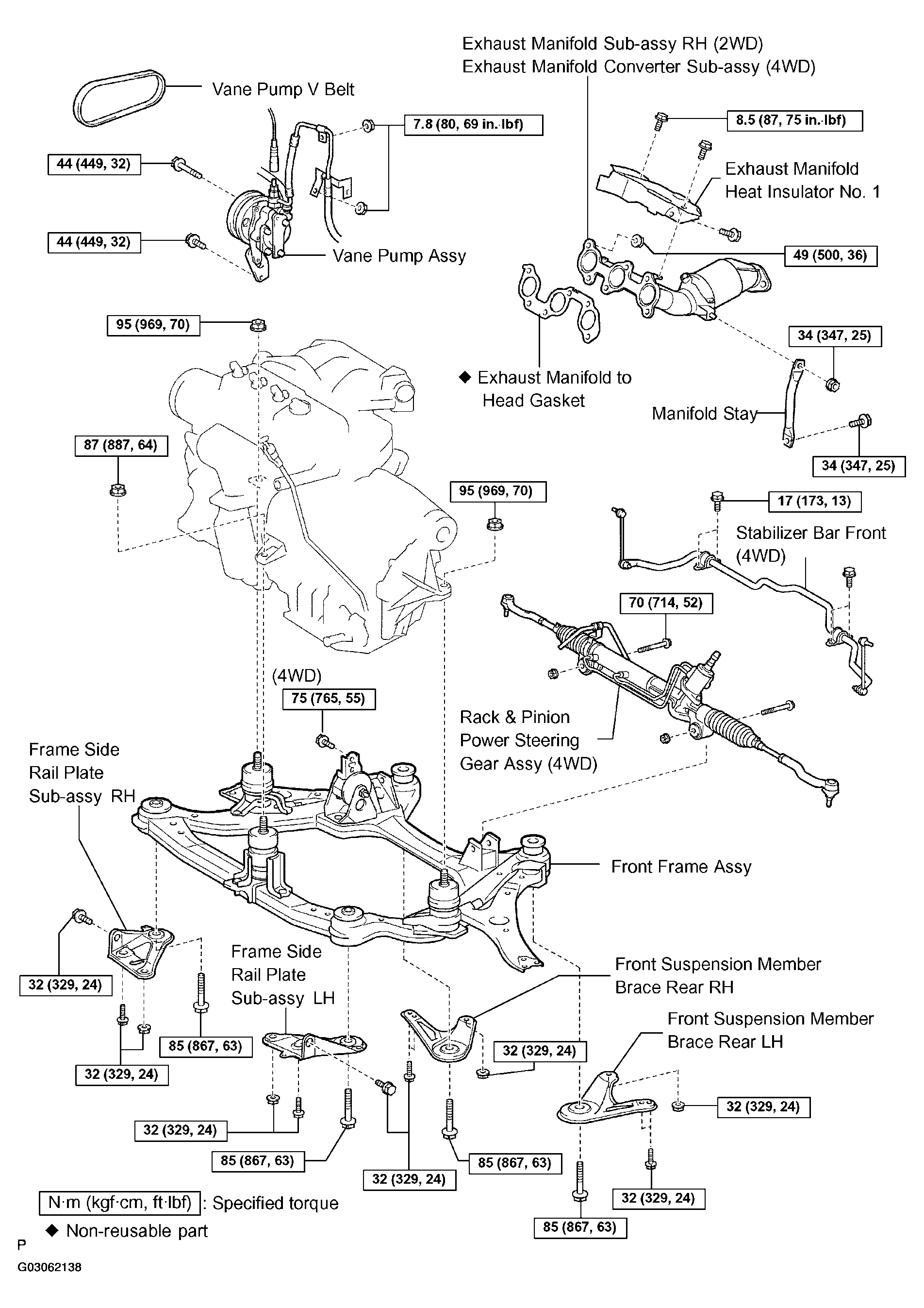

Fig 1: Exploded View Of Assembly Components With Torque Specification (1 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

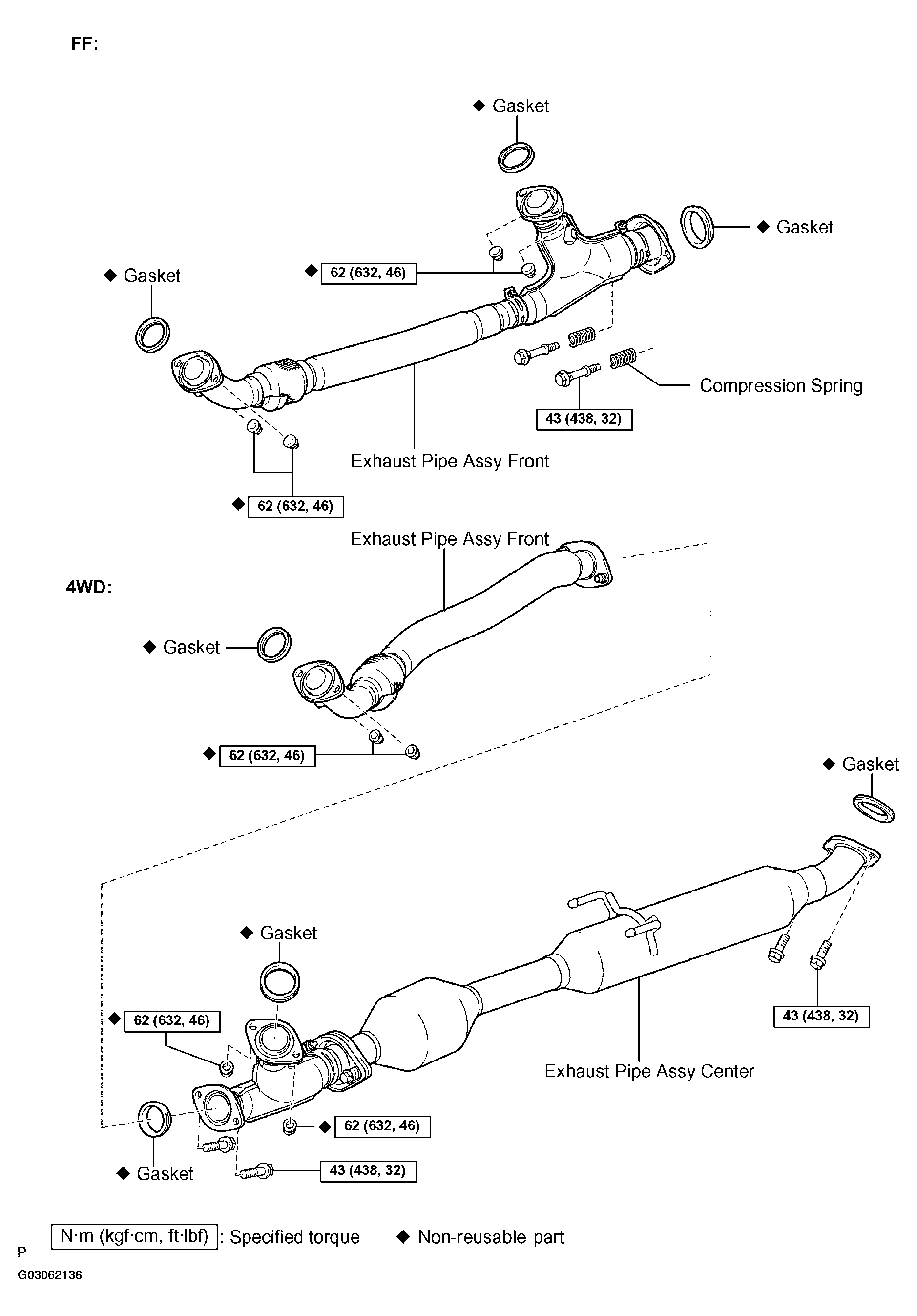

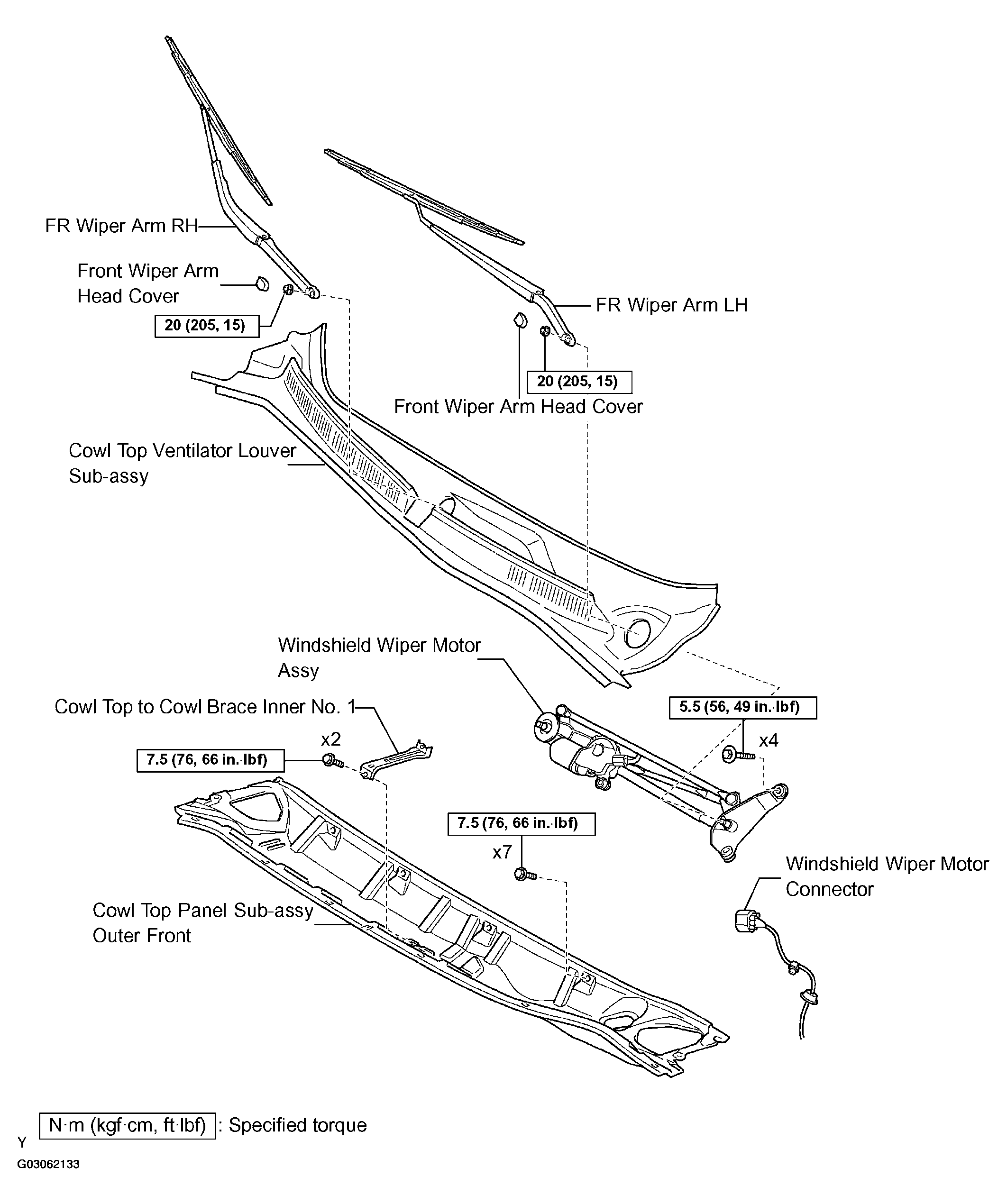

Fig 2: Exploded View Of Assembly Components With Torque Specification (2 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

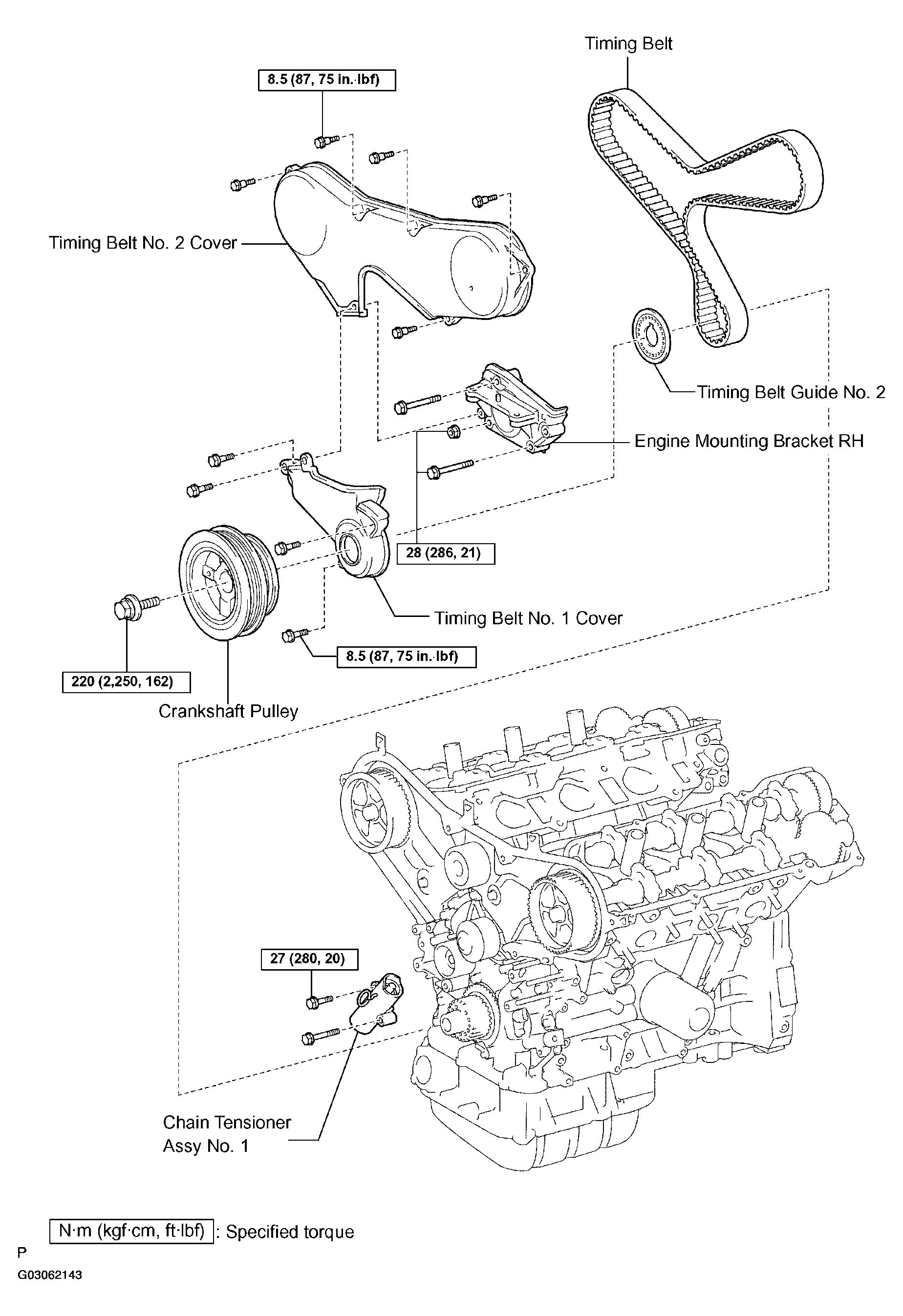

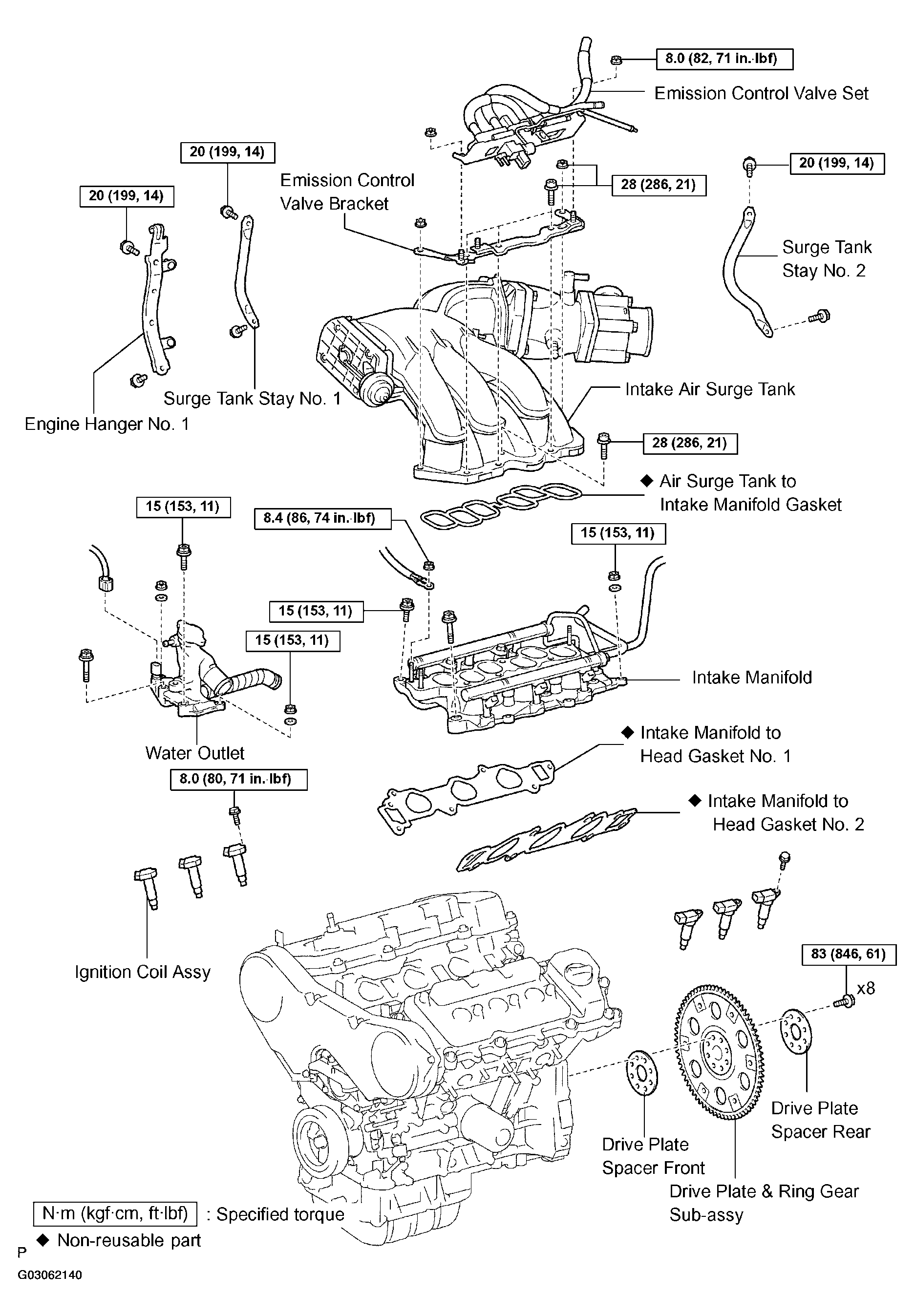

Fig 3: Exploded View Of Assembly Components With Torque Specification (3 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

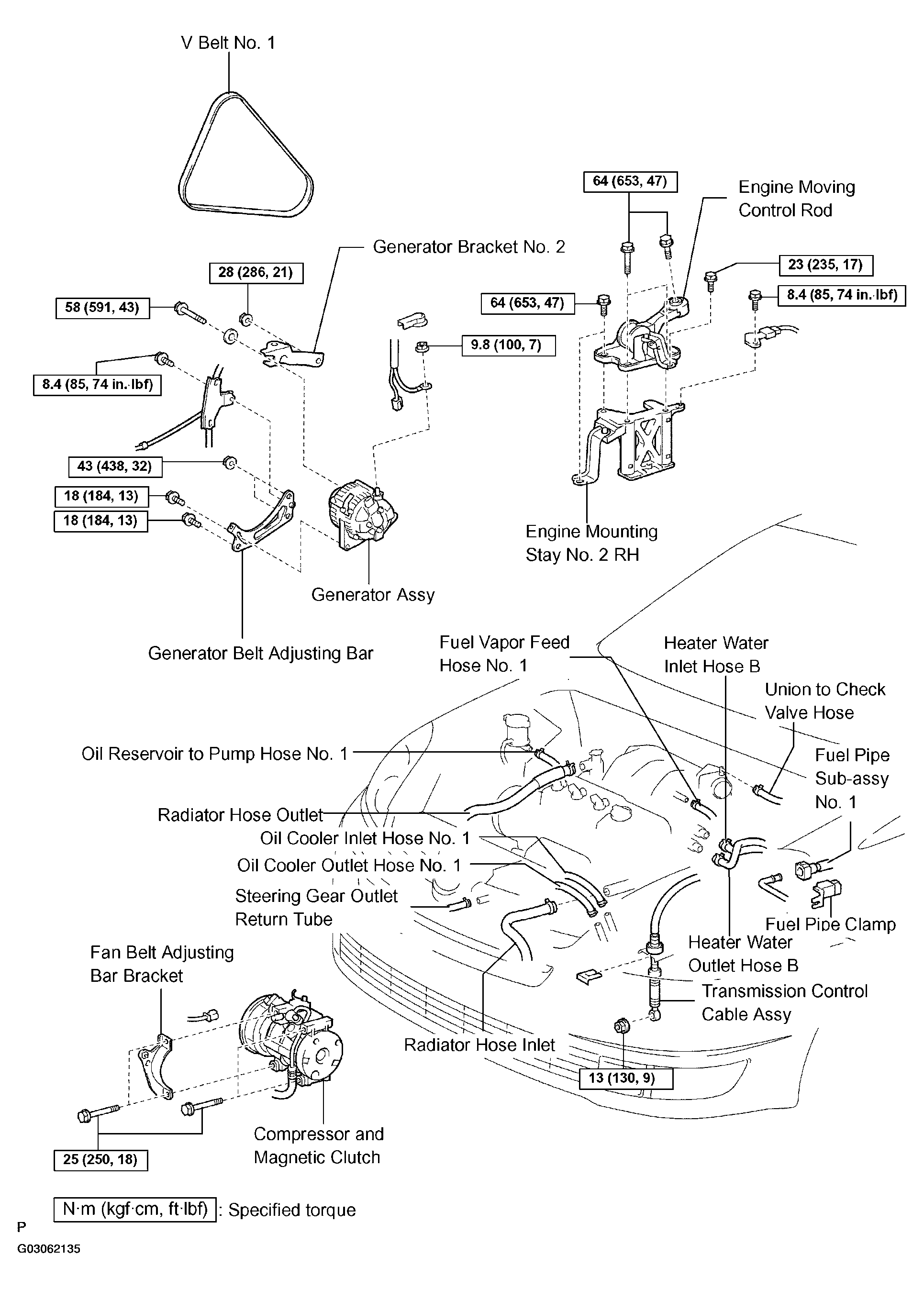

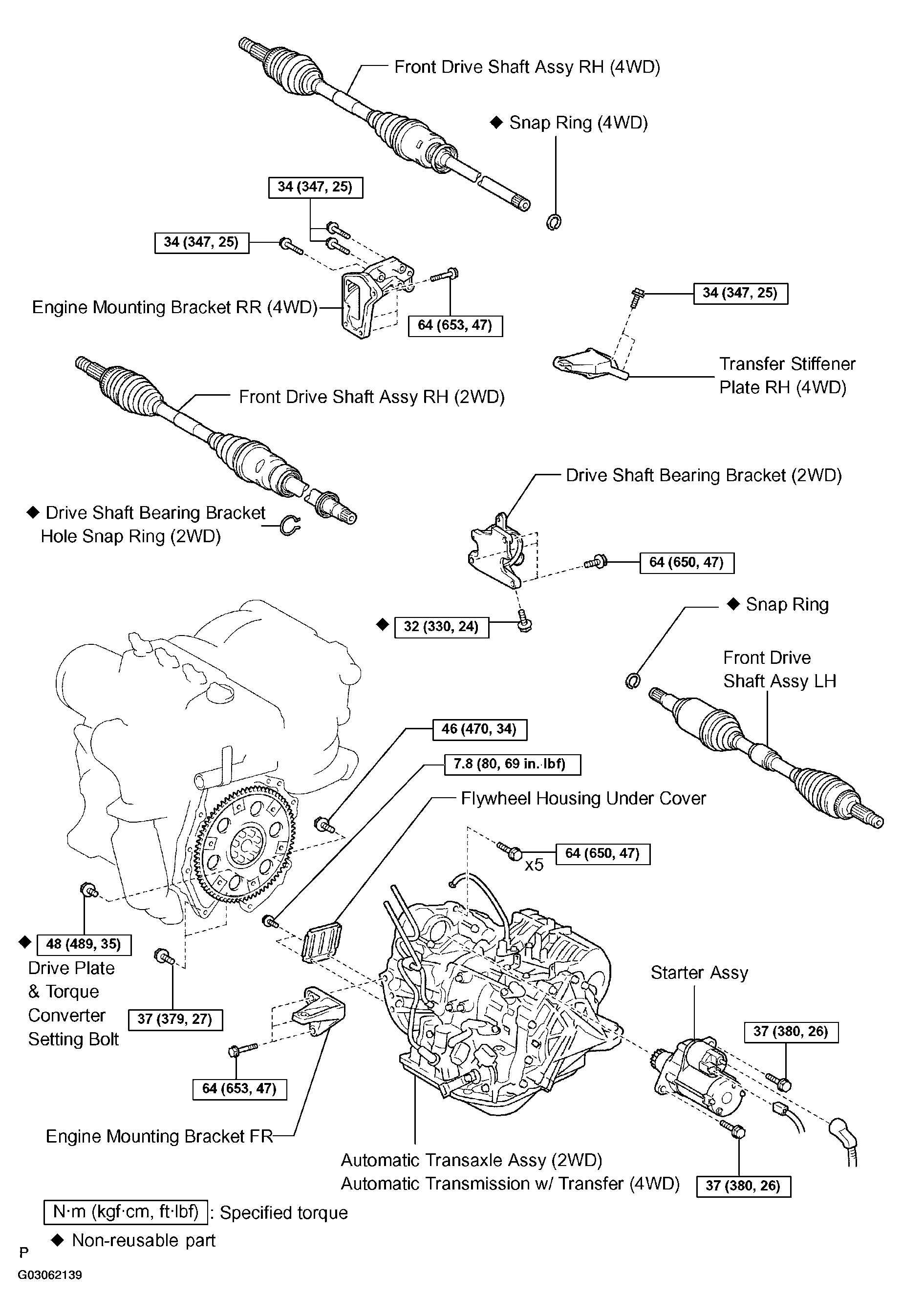

Fig 4: Exploded View Of Assembly Components With Torque Specification (4 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

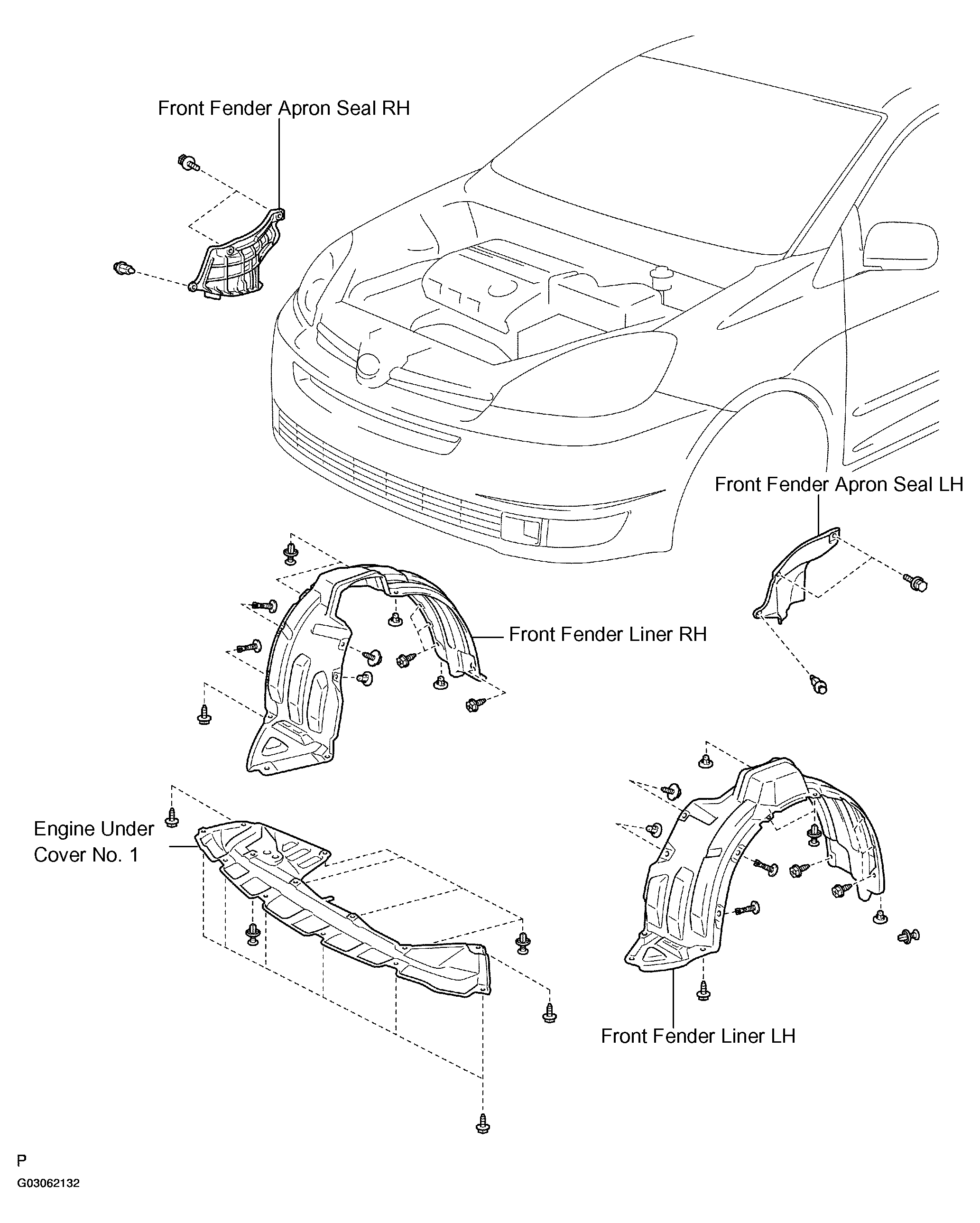

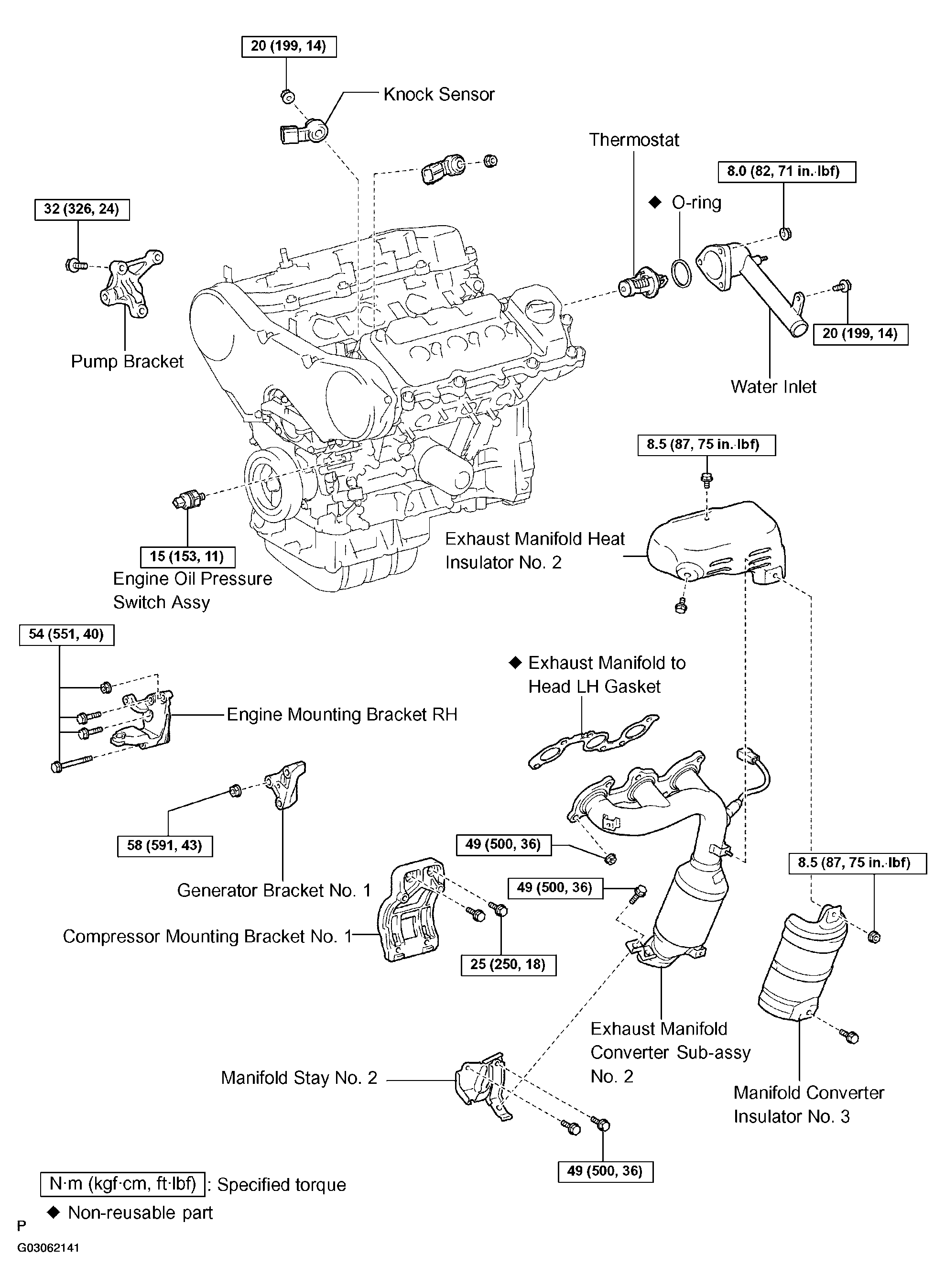

Fig 5: Exploded View Of Assembly Components With Torque Specification (5 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

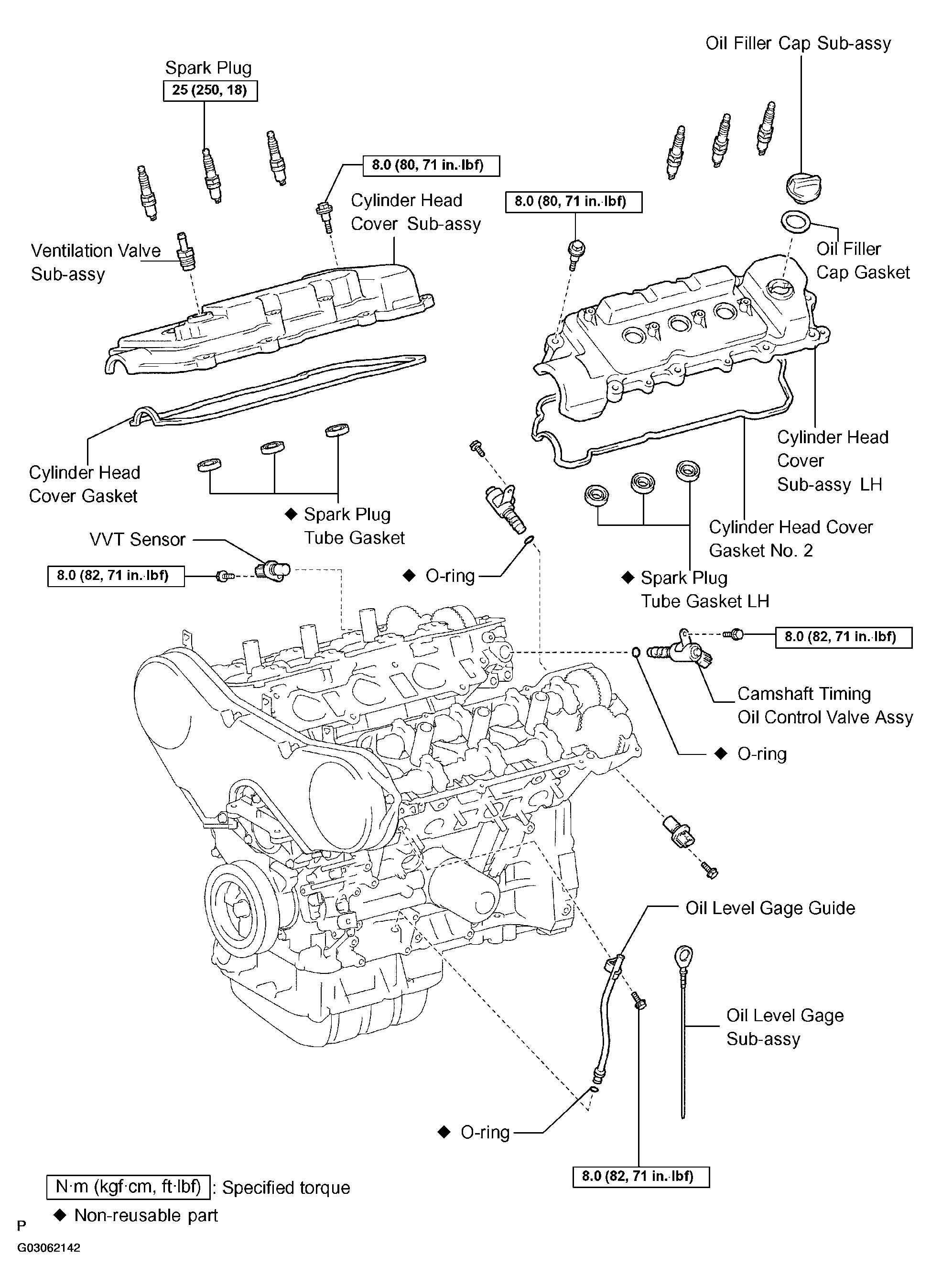

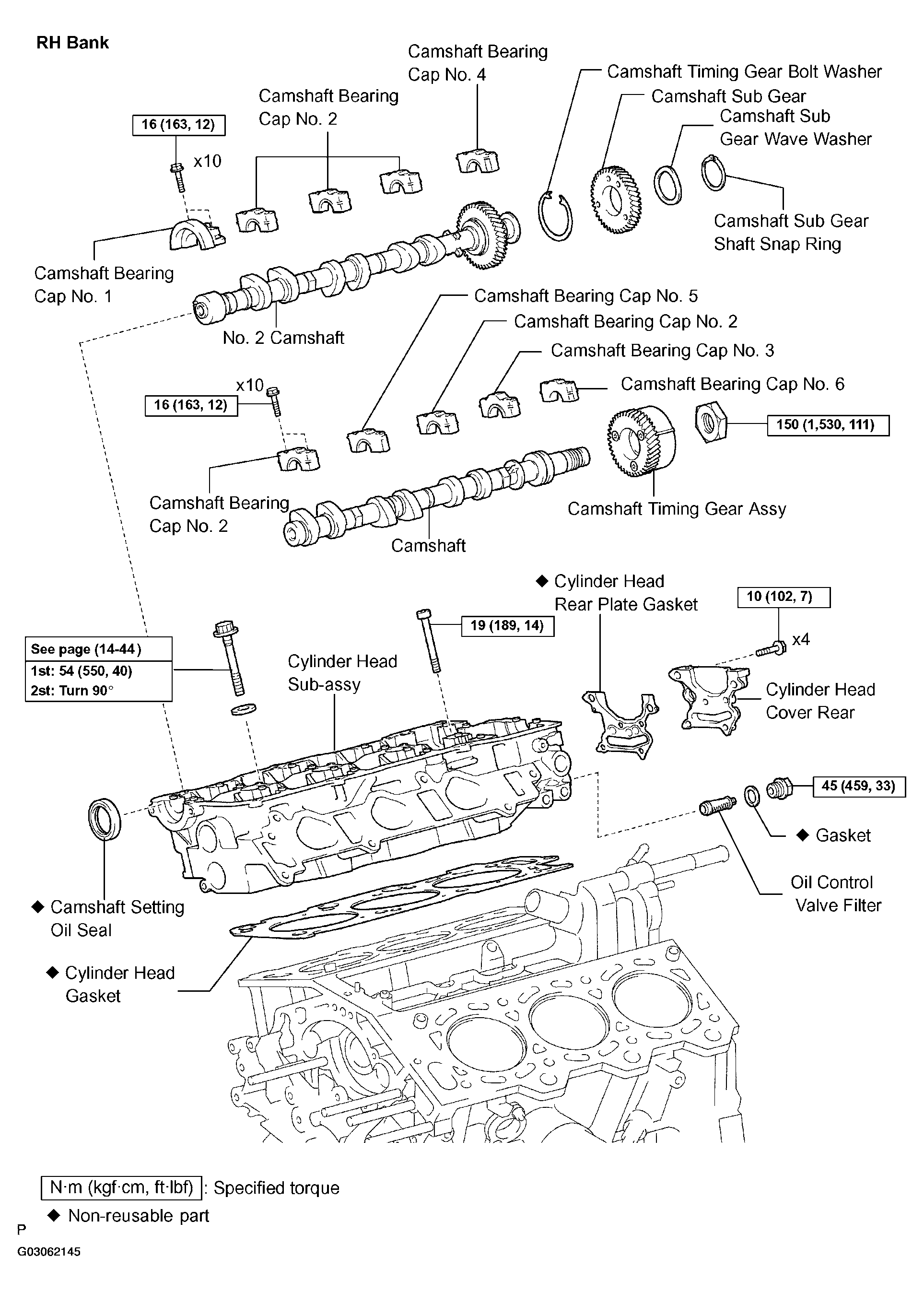

Fig 6: Exploded View Of Assembly Components With Torque Specification (6 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

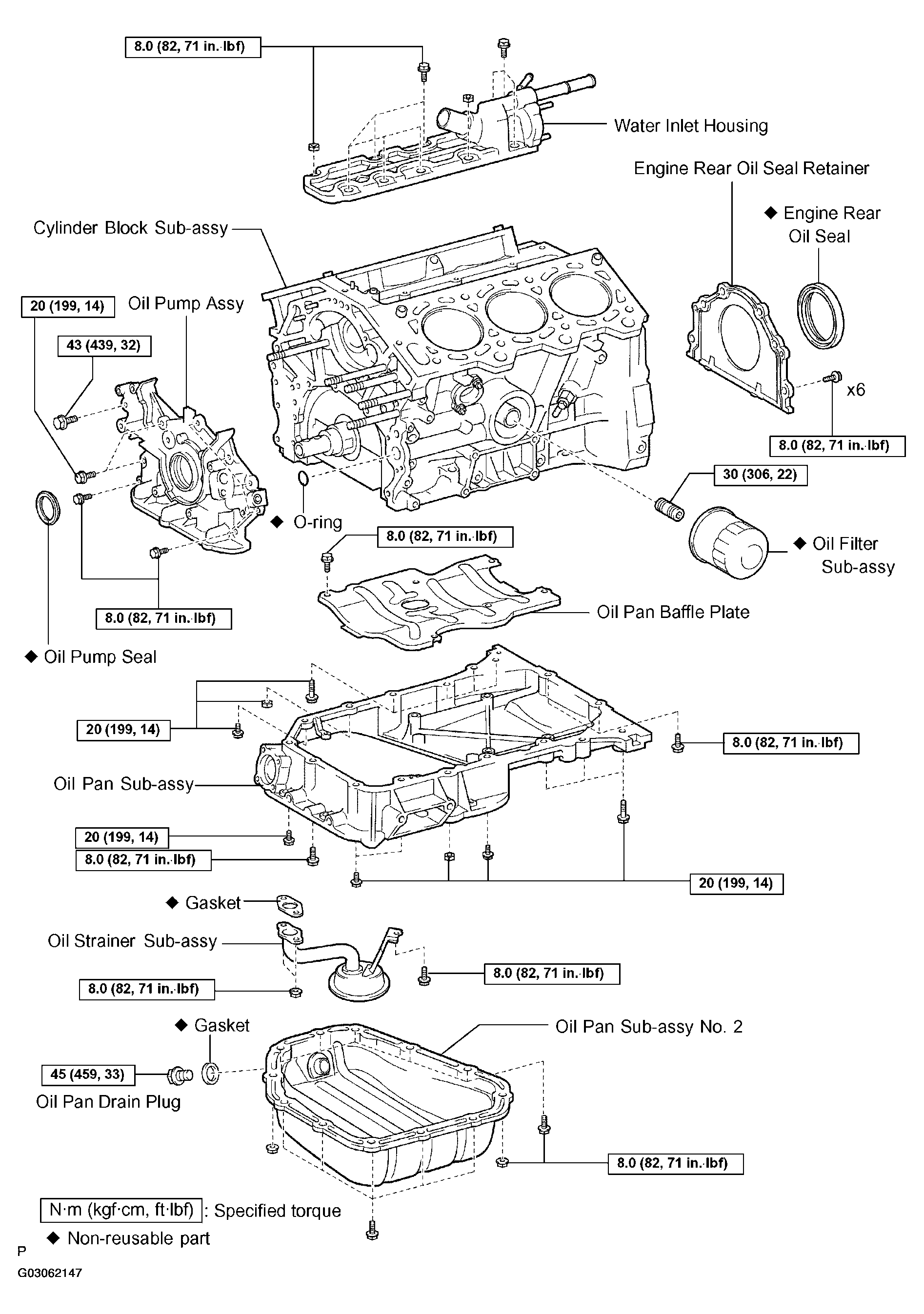

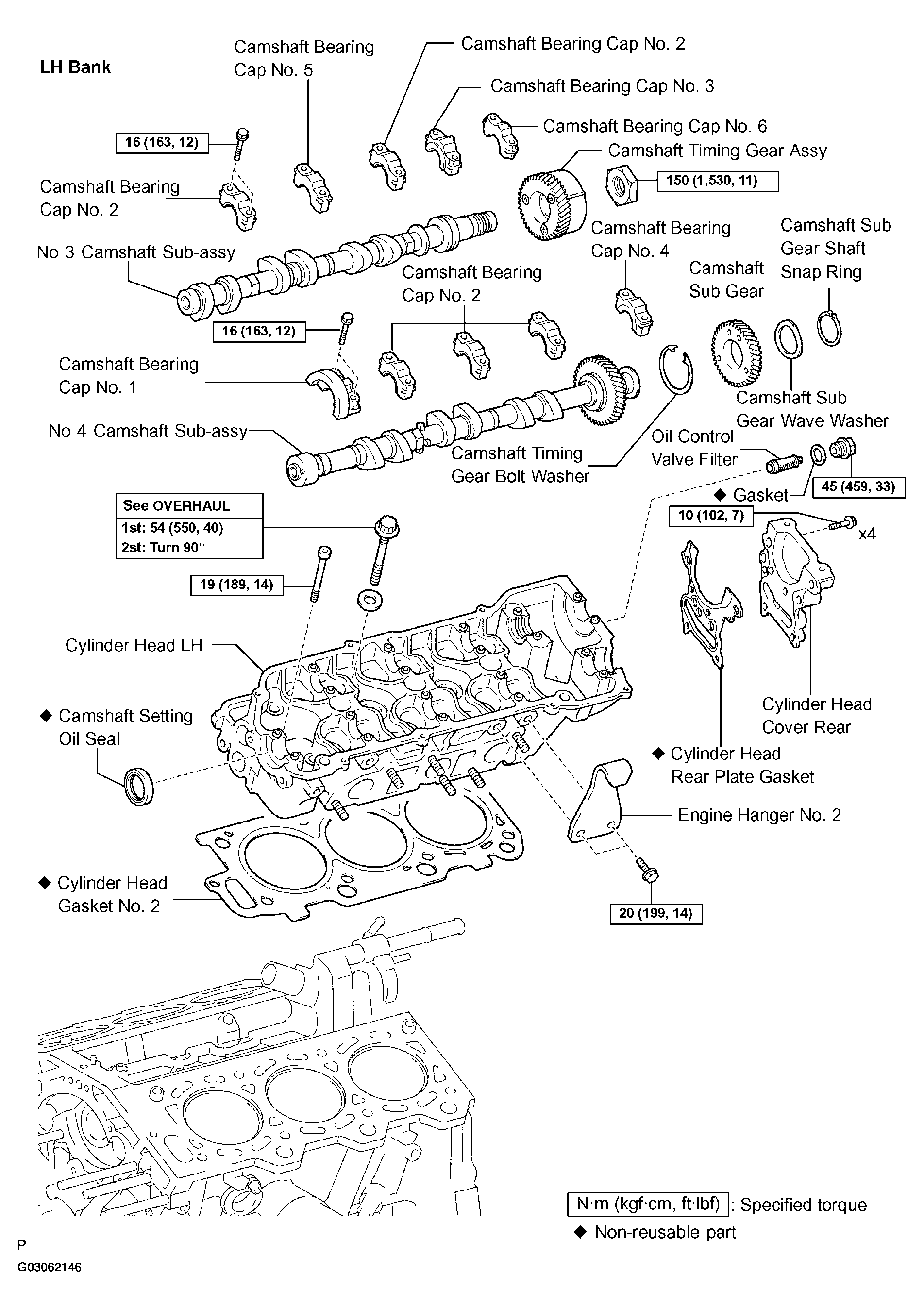

Fig 7: Exploded View Of Assembly Components With Torque Specification (7 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

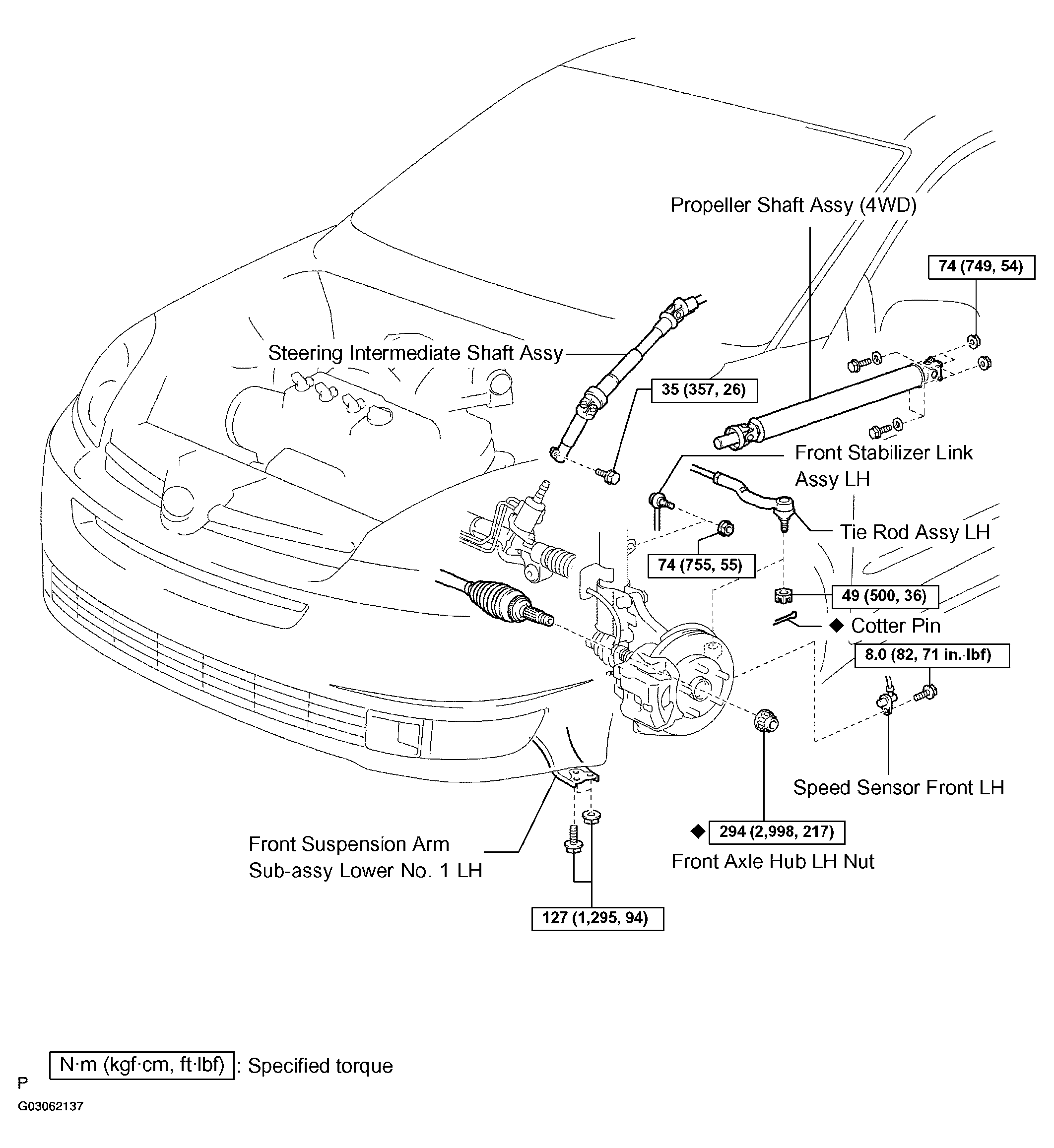

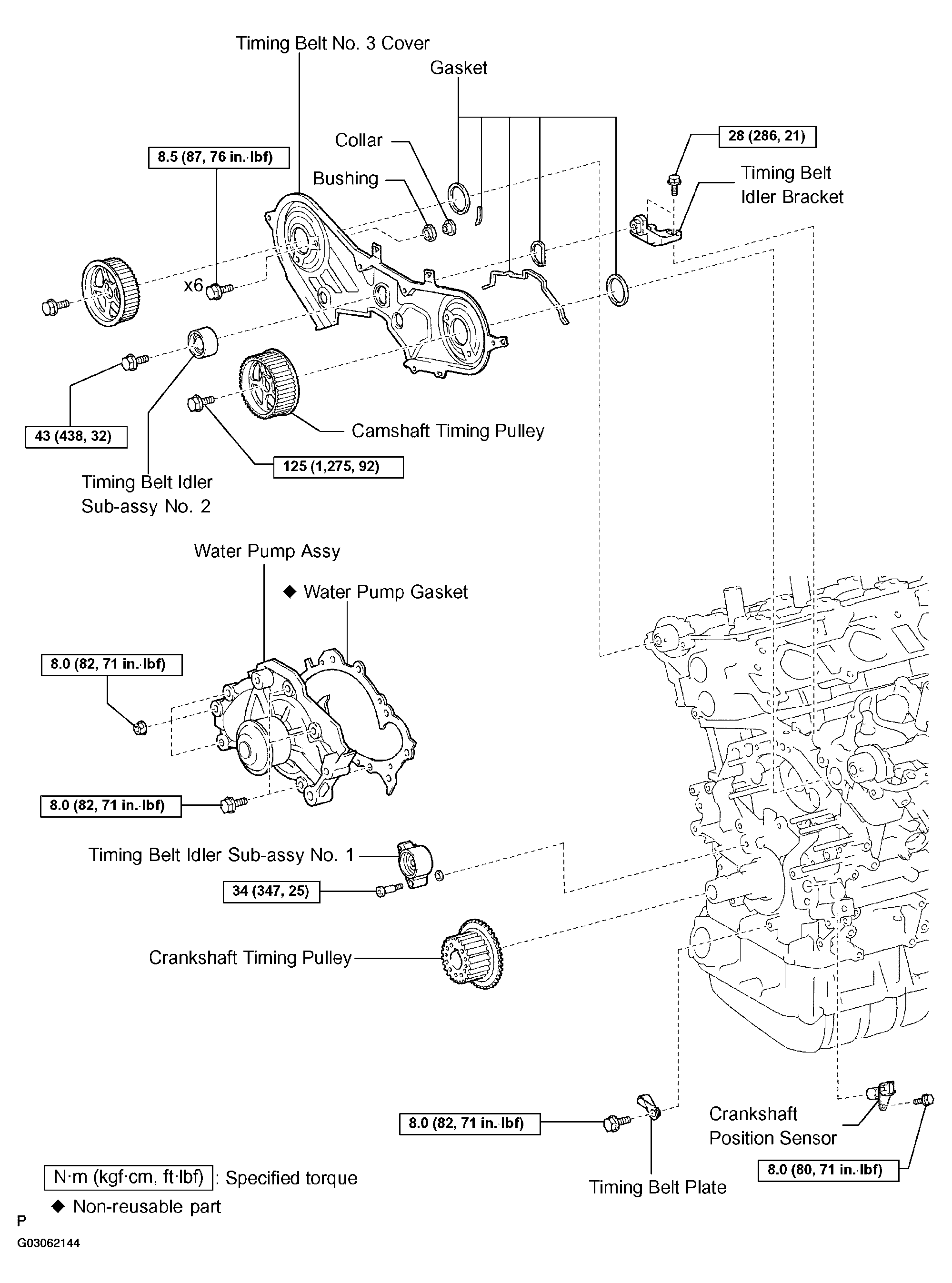

Fig 8: Exploded View Of Assembly Components With Torque Specification (8 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Exploded View Of Assembly Components With Torque Specification (9 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Exploded View Of Assembly Components With Torque Specification (10 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Exploded View Of Assembly Components With Torque Specification (11 Of 16)

Fig 12: Exploded View Of Assembly Components With Torque Specification (12 Of 16)

Fig 13: Exploded View Of Assembly Components With Torque Specification (13 Of 16)

Fig 14: Exploded View Of Assembly Components With Torque Specification (14 Of 16)

Fig 15: Exploded View Of Assembly Components With Torque Specification (15 Of 16)

Fig 16: Exploded View Of Assembly Components With Torque Specification (16 Of 16)
