Section 162 (Engine Coolant): Replacement

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

DRAIN COOLANT
1. Remove the radiator cap from the water outlet.
  CAUTION: To avoid the danger of being burned, do not remove the radiator cap while the engine and radiator are still hot. Thermal expansion will cause hot engine coolant and steam to blow out from the radiator.
2. Loosen the radiator drain plug and the 2 drain cock plugs, and drain the coolant.
3. Close the 2 drain cock plugs.
  Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)

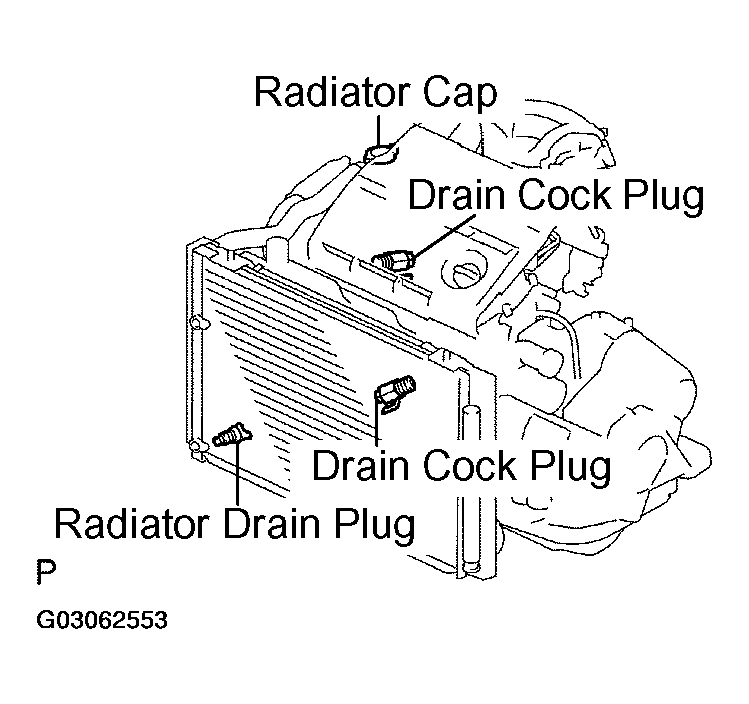

Fig 1: Locating Radiator Cap, Radiator Drain Plug And Drain Cock Plugs
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADD COOLANT
1. Slowly fill the cooling system with coolant.
HINT:
- Use of improper coolants may damage engine cooling system.
- Use "Toyota Long Life Coolant" or equivalent and mix it with plain water according to the manufacturer's directions.
- Using of coolant with includes more than 50 % (freezing protection down to -35°C (-31 °F) or 60 % (freezing protection down to -50°C (-58°F)) of ethylene-glycol is recommended but not more than 70 %.
NOTE:
- Do not use an alcohol type coolant or plain water alone.
- The coolant should be mixed with plain water (preferably demineralized water).
- Capacity: 11.7 liters (12.4 US qts, 10.3 lmp. qts)
CHECK FOR ENGINE COOLANT LEAKS
1. Fill the radiator with coolant and attach a radiator cap tester.
2. Pump it to 118 kPa (1.2 kgf/cm² ), and check for leakage.
