On-Vehicle Inspection

1. Measure voltage between the terminals as shown in the chart below.

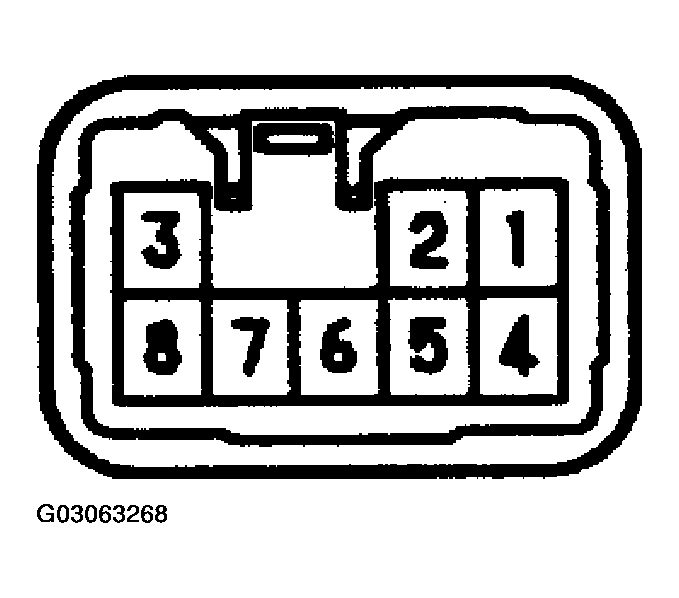

   Fig 1: Inspecting Turn Signal Flasher Circuit

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard:

   TURN SIGNAL FLASHER CIRCUIT VOLTAGE



   Tester connection	Condition	Specified condition
   1 - body ground	Turn ignition switch	ON 10 to 14 V
   1 - body ground	Turn ignition switch OFF	No voltage
   4 - body ground	Always	10 to 14 V
   7 - body ground	Always	Continuity

2. Connect the connector to turn the signal flasher and turn the ignition switch ON, and inspect the wire harness side connector from the back side as shown in the chart.

   Standard:

   CONNECTOR TERMINAL VOLTAGE



   Tester connection	Condition	Specified condition
   2 - body ground	Hazard switch OFF --> ON	0V --> 10 to 14 V (60 to 120 time per minutes)
   2 - body ground	Turn signal switch (right turn) OFF --> ON	0V --> 10 to 14 V (60 to 120 time per minutes)
   3 - body ground	Hazard switch OFF --> ON	0V --> 10 to 14 V (60 to 120 time per minutes)
   3 - body ground	Turn signal switch (left turn) OFF --> ON	0V --> 10 to 14 V (60 to 120 time per minutes)
   5 - body ground	Turn signal switch (left turn) OFF --> ON	10 to 14V --> 0V
   6 - body ground	Turn signal switch (right turn) OFF --> ON	10 to 14V --> 0V
   8 - body ground	Hazard switch OFF --> ON	10 to 14V --> 0V10

1. Disconnect the connector from the headlamp assy.
2. Connect the positive (+) lead from the battery to the terminal 3 of each of the headlight beam level control actuator and negative (-) lead from the battery to the terminal 1 of each of the headlight beam level control actuator.
3. Connect the positive (+) lead from the battery to the terminal 1 of the headlamp levering switch and negative (-) lead from the battery to the terminal 2 of the headlamp levering switch.
4. Connect the terminal 4 of the headlamp leveling switch and the terminal 2 of the headlight beam level control actuator LH, and connect the terminal 5 of the headlamp leveling switch and the terminal 2 of the headlight beam level control actuator RH.
5. Measure voltage between each of the headlight beam level control actuator and battery negative (-) terminal when headlamp levering switch is operated.

Standard:

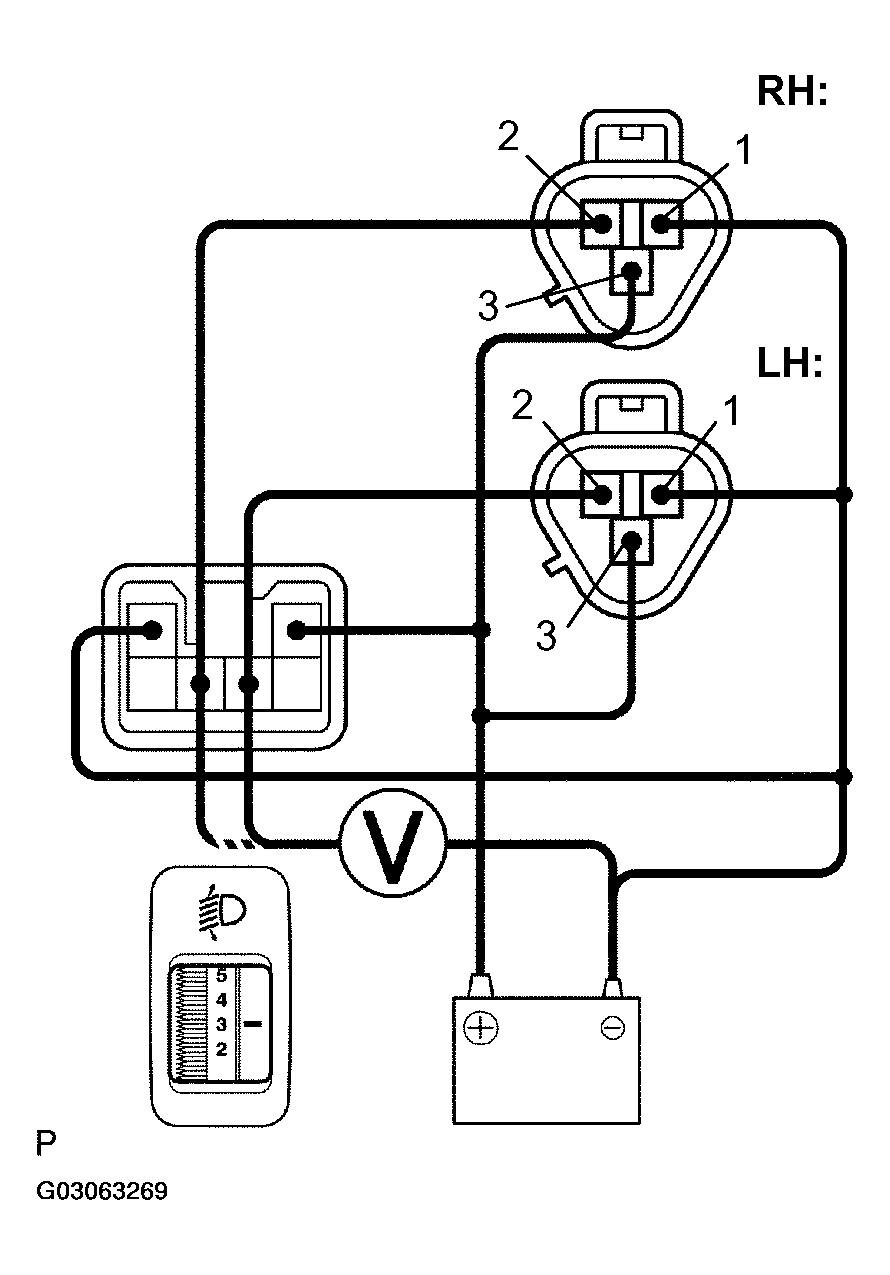

Fig 2: Inspecting Headlamp Assembly (Headlight Beam Level Control Actuator Operation)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
