Vehicle Identification And Serial Numbers

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. VEHICLE IDENTIFICATION NUMBER
    1. The vehicle identification number is stamped on the vehicle identification number plate and the certification label, as shown.

      A: Vehicle Identification Number Plate

      B: Certification Label

      Fig 1: Locating Vehicle Identification Number Position
      G02628488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

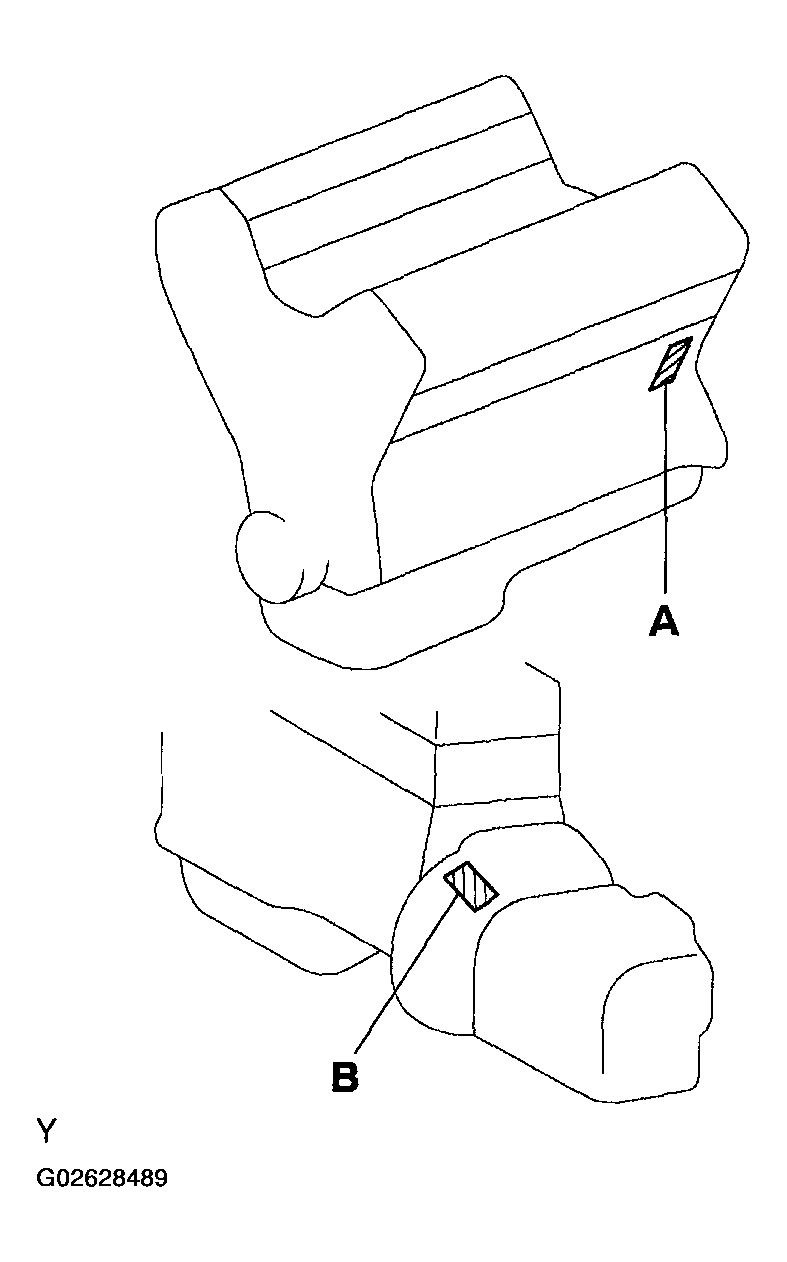

  2. ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER
    1. The engine serial number is stamped on the cylinder block of the engine and the transaxle serial number is stamped on the housing as shown.

      A: Engine Serial Number

      B: Transaxle Serial Number

      Fig 2: Locating Engine & Transmission Serial Number Position
      G02628489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
