Section 317 (Power Window Control System (W/Jam Protection) - Diagnostics): Pre-Check

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

USING HAND-HELD TESTER
1. Connect the hand-held tester to the DLC3.
2. Monitor the ECU data by following the prompts on the tester screen.
HINT:

The hand-held tester has a "Snapshot" function which records the monitored data. Refer to the hand-held tester operator's manual for further details.
DATA LIST
HINT:

Using the DATA LIST displayed by the hand-held tester, you can read the values of the switch, sensor, actuator, etc. without parts removal. Reading the DATA LIST as the first step of troubleshooting is one way to shorten the labor time.
1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch ON.
3. Read the DATA LIST according to the display on the tester.
  Standard (Multiplex network body ECU):

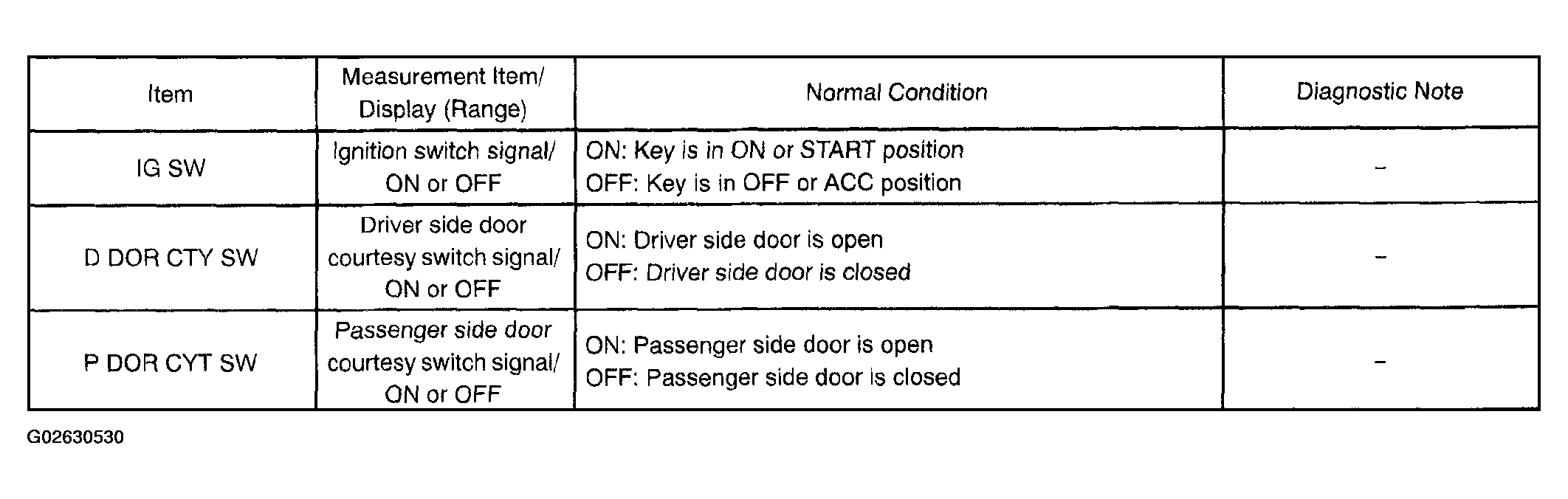

  Fig 1: Standard (Multiplex Network Body ECU) Specification Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ACTIVE TEST

HINT:

Performing the ACTIVE TEST using the hand-held tester allows you to operate the relay, VSV, actuator, etc. without parts removal. Performing the ACTIVE TEST as the first step of troubleshooting is one way to shorten the labor time.

It is possible to display the DATA LIST during the ACTIVE TEST.

Connect the hand-held tester to the DLC3.
Turn the ignition switch ON.

Perform the ACTIVE TEST according to the display on the tester.

Standard (Multiplex network body ECU):

DIAGNOSTIC PROCEDURE

Item	Test Detail	Diagnostic Note
IG OFF P/W	Ignition switch OFF power window control permission output ON/OFF	-
