Crankshaft Position Sensor: Replacement

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT FENDER APRON SEAL RH
1. Using a clip remover, remove the clip.
2. Remove the 2 bolts and the front fender apron seal.

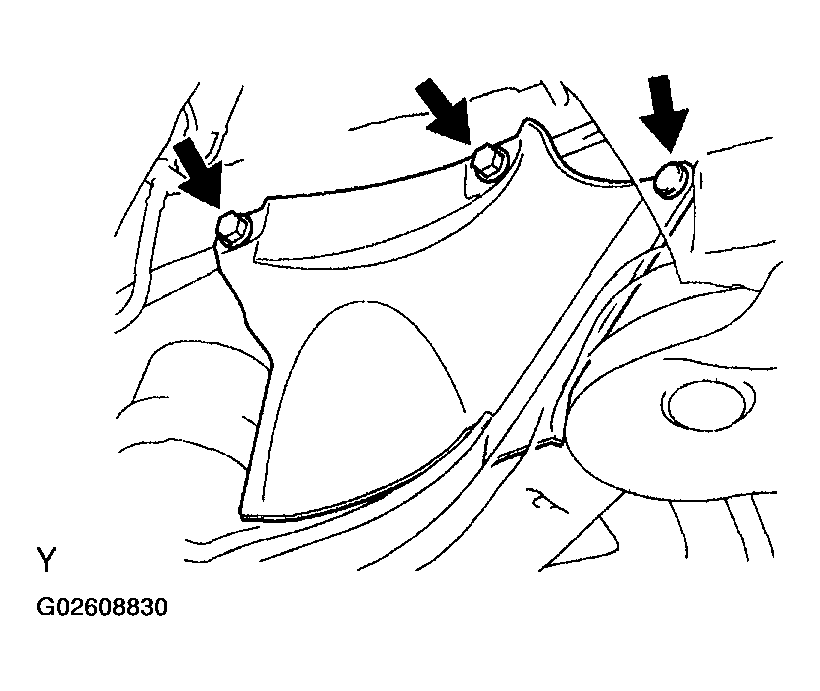

Fig 1: Removing Front Fender Apron Seal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CRANKSHAFT POSITION SENSOR
1. Disconnect the crankshaft position sensor connector.
2. Remove the bolt and the crankshaft position sensor.

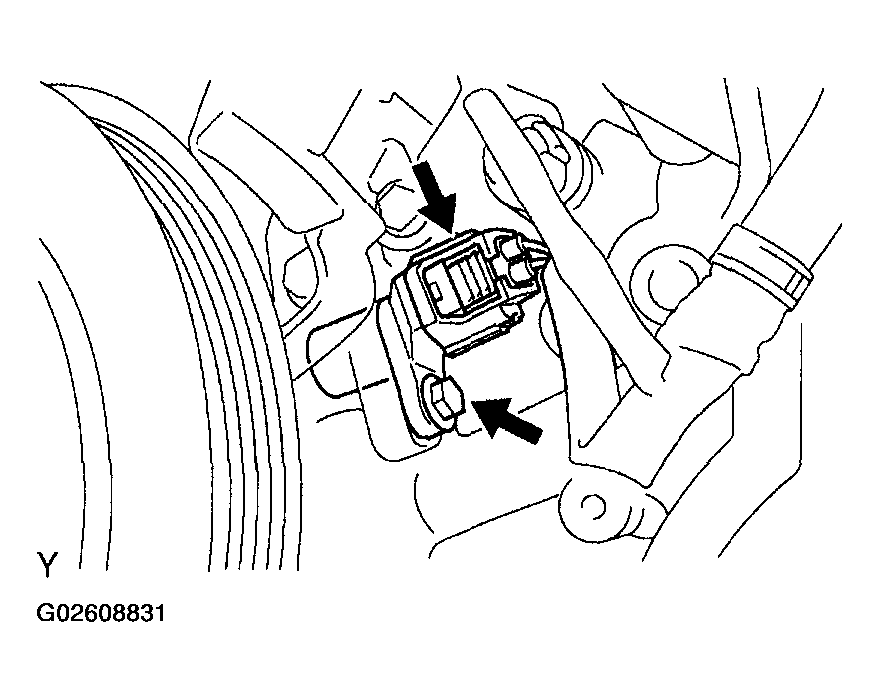

Fig 2: Removing Crankshaft Position Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CRANKSHAFT POSITION SENSOR
Torque: 8.0 N.m (80 kgf.cm, 71 in..lbf)
INSTALL FRONT FENDER APRON SEAL RH
