VVT Sensor: Replacement

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE AIR CLEANER INLET NO. 2 (See  REPLACEMENT  )
  2. REMOVE AIR CLEANER ASSY (See  REPLACEMENT  )
  3. REMOVE VVT SENSOR
    1. Disconnect the VVT sensor connectors.
    2. Remove the 2 bolts and the 2 VVT sensors.

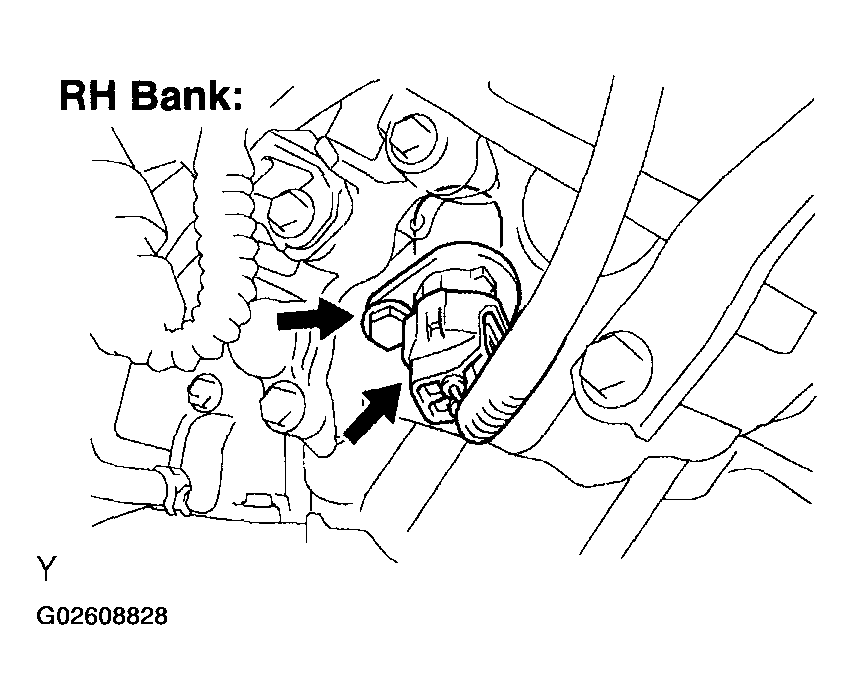

    Fig 1: Disconnecting VVT Sensor Connectors (RH)
    G02608828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

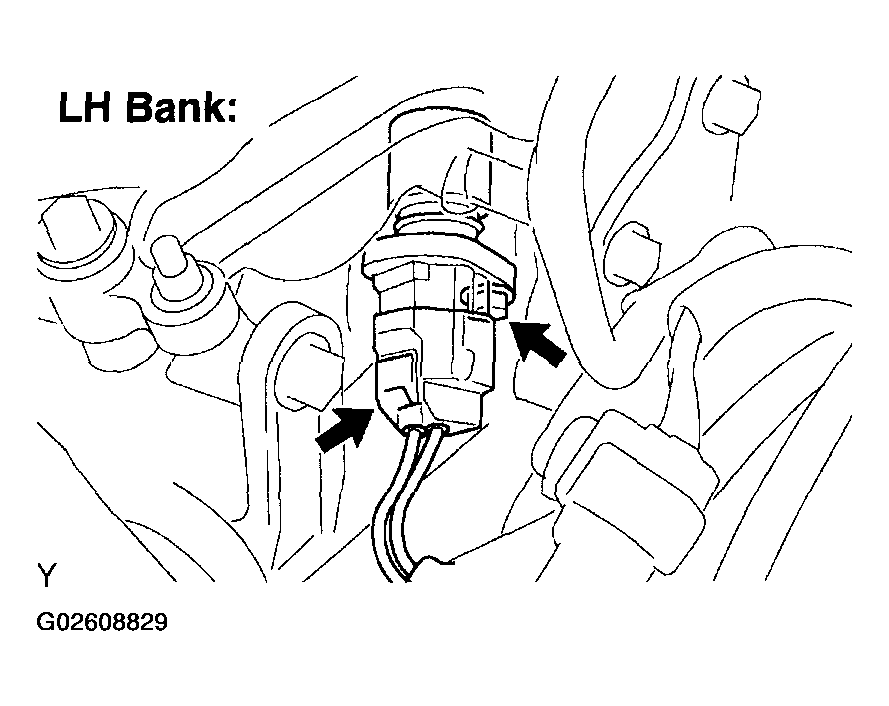

    Fig 2: Disconnecting VVT Sensor Connectors (LH)
    G02608829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL VVT SENSOR
    1. Apply a light coat of engine oil to the O-ring on the VVT sensor.
    2. Install the 2 VVT sensors with the 2 bolts.

      Torque: 8.0 N.m (80 kgf.cm, 71 in..lbf)

    3. Connect the 2 VVT sensor connectors.
  5. INSTALL AIR CLEANER ASSY (See  REPLACEMENT  )
  6. INSTALL AIR CLEANER INLET NO.2 (See  REPLACEMENT  )
