License Plate Lamp Lens: Replacement

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE BACK DOOR GARNISH CENTER

    BACK DOOR: (See  OVERHAUL  )

    POWER BACK DOOR: (See  OVERHAUL  )

  2. REMOVE BACK DOOR SIDE GARNISH LH

    BACK DOOR: (See  OVERHAUL  )

    POWER BACK DOOR: (See  OVERHAUL  )

  3. REMOVE BACK DOOR SIDE GARNISH RH

    BACK DOOR: (See  OVERHAUL  )

    POWER BACK DOOR: (See  OVERHAUL  )

  4. REMOVE BACK DOOR PULL STRAP

    BACK DOOR: (See  OVERHAUL  )

    POWER BACK DOOR: (See  OVERHAUL  )

  5. REMOVE BACK DOOR TRIM BOARD ASSY

    BACK DOOR: (See  OVERHAUL  )

    POWER BACK DOOR: (See  OVERHAUL  )

  6. REMOVE BACK DOOR GARNISH SUB-ASSY OUTSIDE (See  BACK DOOR GARNISH SUB-ASSY OUTSIDE  )
  7. REMOVE LICENSE PLATE LAMP ASSY
    1. Release the 2 claw fittings and disconnect the license plate lamp assy.
    2. Disconnect the connector and remove the license plate lamp assy.

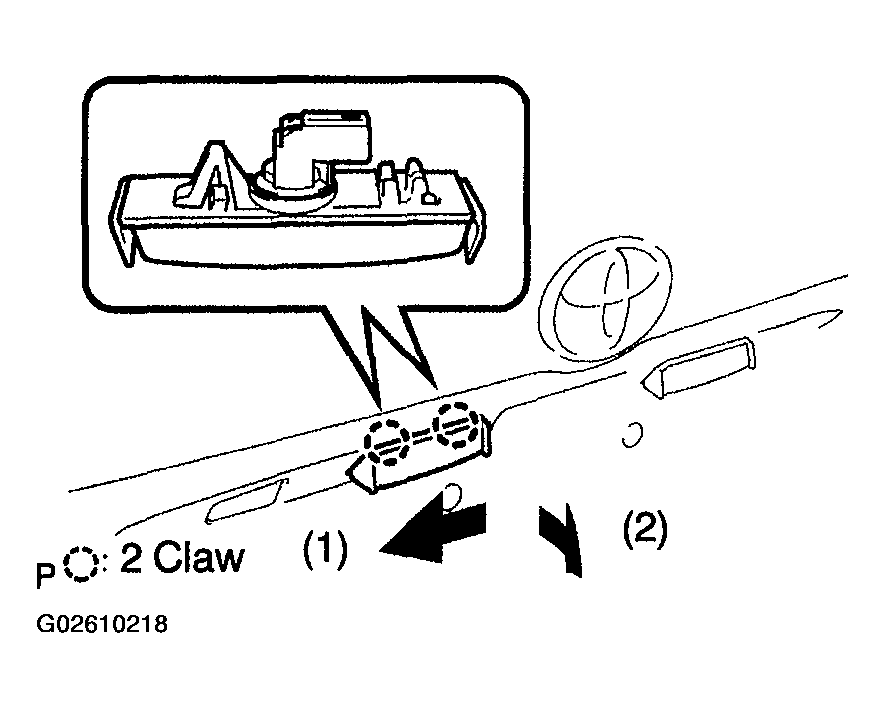

    Fig 1: Removing License Plate Lamp Assy
    G02610218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE LICENSE PLATE LAMP LENS GASKET
  9. REMOVE LICENSE PLATE LAMP BULB
    1. Remove the license plate lamp bulb and the license plate lamp socket plug.
    2. Remove the license plate lamp bulb from the license plate lamp socket plug.
  10. REMOVE LICENSE PLATE LAMP SOCKET PLUG
  11. REMOVE LICENSE PLATE LAMP LENS
  12. INSTALL BACK DOOR PULL STRAP

    BACK DOOR: (See  OVERHAUL  )

    POWER BACK DOOR: (See  OVERHAUL  )
