Cigarette Lighter ASSY: Replacement

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

See COMPONENTS

REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER NO.1 (See REPLACEMENT )
REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER NO.2 (See REPLACEMENT )
REMOVE SHIFT LEVER KNOB SUB-ASSY (See REPLACEMENT )
REMOVE FLOOR SHIFT POSITION INDICATOR HOUSING ASSY (See REPLACEMENT )
REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CENTER (See REPLACEMENT )
REMOVE CIGARETTE LIGHTER COVER
1. Release the 2 claw fittings and remove the cigarette lighter cover.

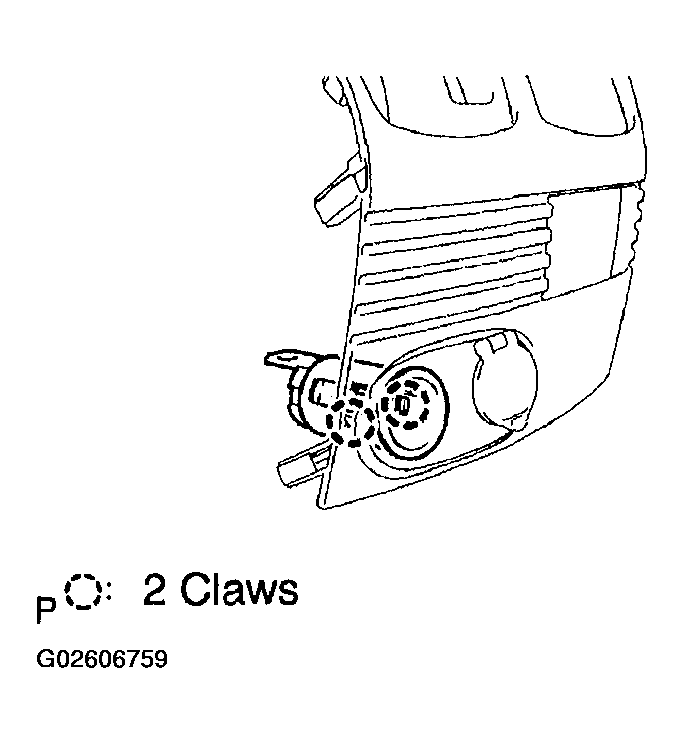

Fig 1: Removing Cigarette Lighter Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CIGARETTE LIGHTER ASSY
1. Remove the cigarette lighter knob and element assy.
2. Release the 2 claw fittings and remove the cigarette lighter assy.

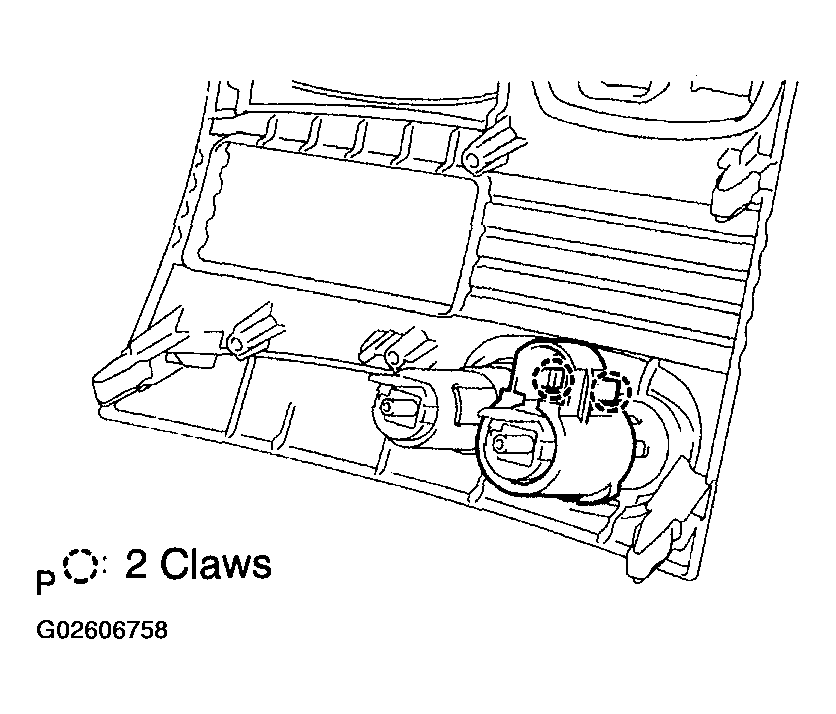

Fig 2: Removing Cigarette Lighter Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
