Section 357 (Audio & Visual System): Inspection

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT MAIN SWITCH ASSY

Inspect the continuity between terminal at the each switch position shown in CONTINUITY CHECK .

CONTINUITY CHECK

Switch operation	Tester connection	Specified condition
OFF	3-2	No continuity
ON	3-2	Continuity

If continuity is not as specified, replace the main switch assy.

Inspect the bulb state when connecting the battery to each terminal.

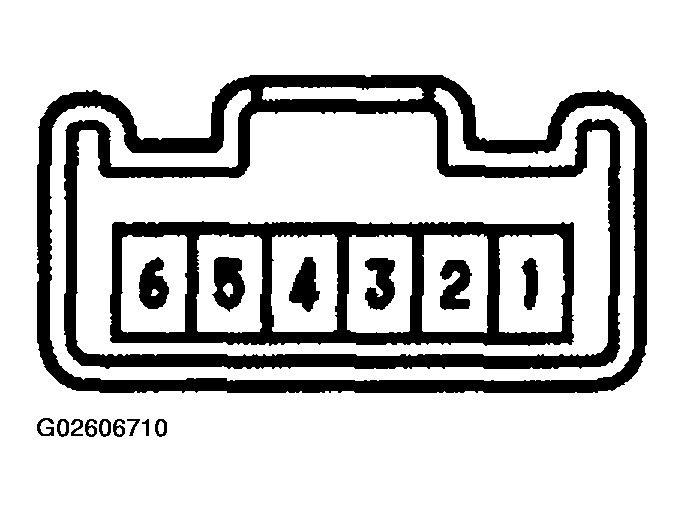

Fig 1: Identifying Main Switch Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CONTINUITY CHECK

Inspection item	Battery connection	Specified condition
Indicator	Battery positive terminal - 3 Battery negative terminal - 5	Comes on
Illumination	Battery positive terminal - 4 Battery negative terminal - 1	Comes on

If operation is not as specified, check the faulty bulb.

Inspect continuity of the bulb by connecting the tester as shown.
If continuity exists, replace the main switch assy. If no continuity exists, replace the bulb.

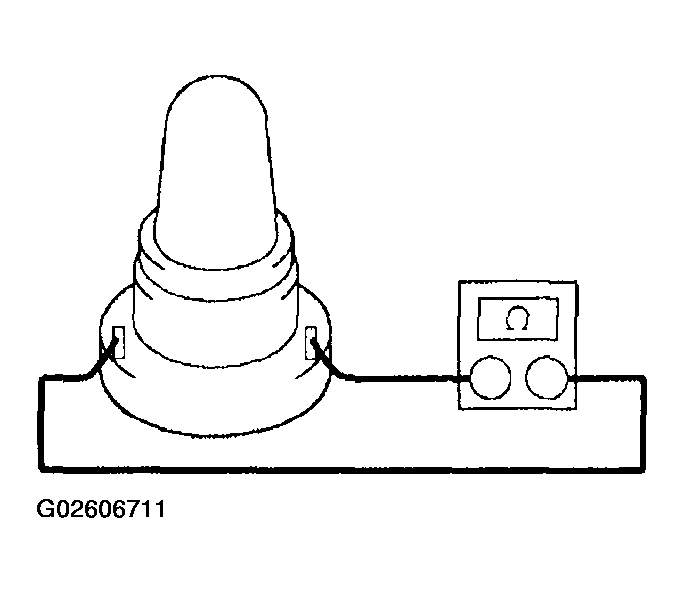

Fig 2: Inspecting Continuity Of Bulb
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT INVERTER RELAY

Inspect continuity between terminal at the each switch position shown in CONTINUITY CHECK .

CONTINUITY CHECK

Condition	Tester connection	Specified condition
Always	1-2	Continuity
Always	3-5	No continuity
Apply B+ between terminal 1 and 2	3-5	Continuity

If continuity is not as specified, replace the point socket relay.

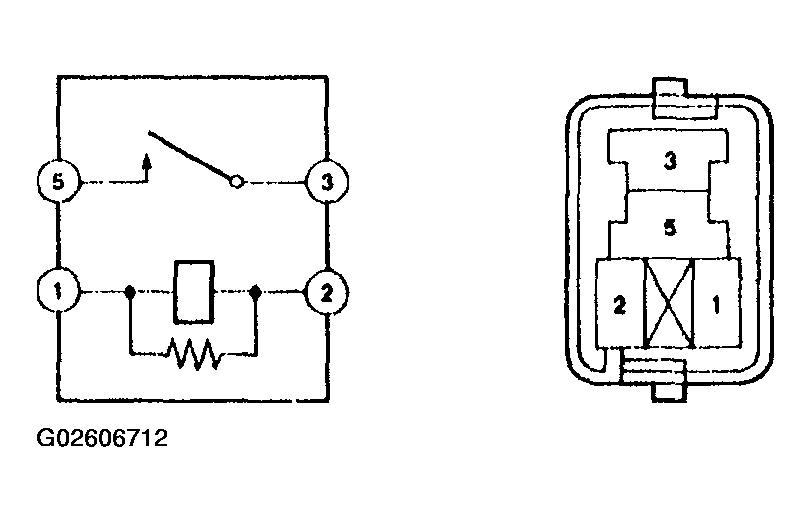

Fig 3: Inspecting Inverter Relay
