Power Point Socket ASSY: Replacement

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

See COMPONENTS

  1. REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER NO.1 (See  REPLACEMENT  )
  2. REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER NO.2 (See  REPLACEMENT  )
  3. REMOVE SHIFT LEVER KNOB SUB-ASSY (See  REPLACEMENT  )
  4. REMOVE POSITION INDICATOR HOUSING ASSY (See  REPLACEMENT  )
  5. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CENTER (See  REPLACEMENT  )
  6. REMOVE POWER POINT SOCKET ASSY
    1. Release the 2 claw fittings and remove the power point socket assy.

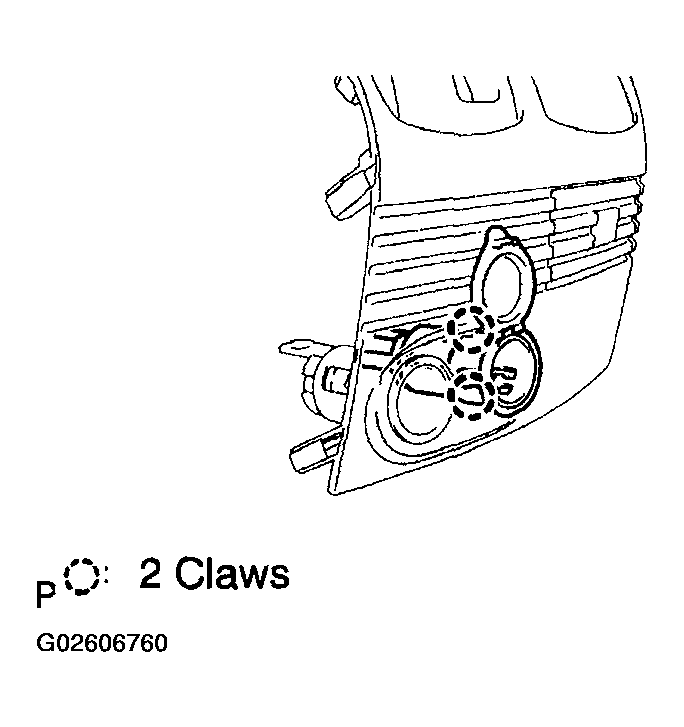

    Fig 1: Removing Power Point Socket Assy
    G02606760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


HINT:

See COMPONENTS

  1. REMOVE REAR DOOR SCUFF PLATE LH (See  REPLACEMENT  )
  2. REMOVE REAR DOOR WEATHERSTRIP LH (See  REPLACEMENT  )
  3. REMOVE BACK DOOR WEATHERSTRIP (See  REPLACEMENT  )
  4. REMOVE BACK DOOR SCUFF PLATE (See  REPLACEMENT  )
  5. REMOVE QUARTER TRIM PANEL ASSY FRONT LH (See  REPLACEMENT  )
  6. REMOVE POWER POINT SOCKET ASSY
    1. Release the 2 claw fittings and remove the power point socket assy.

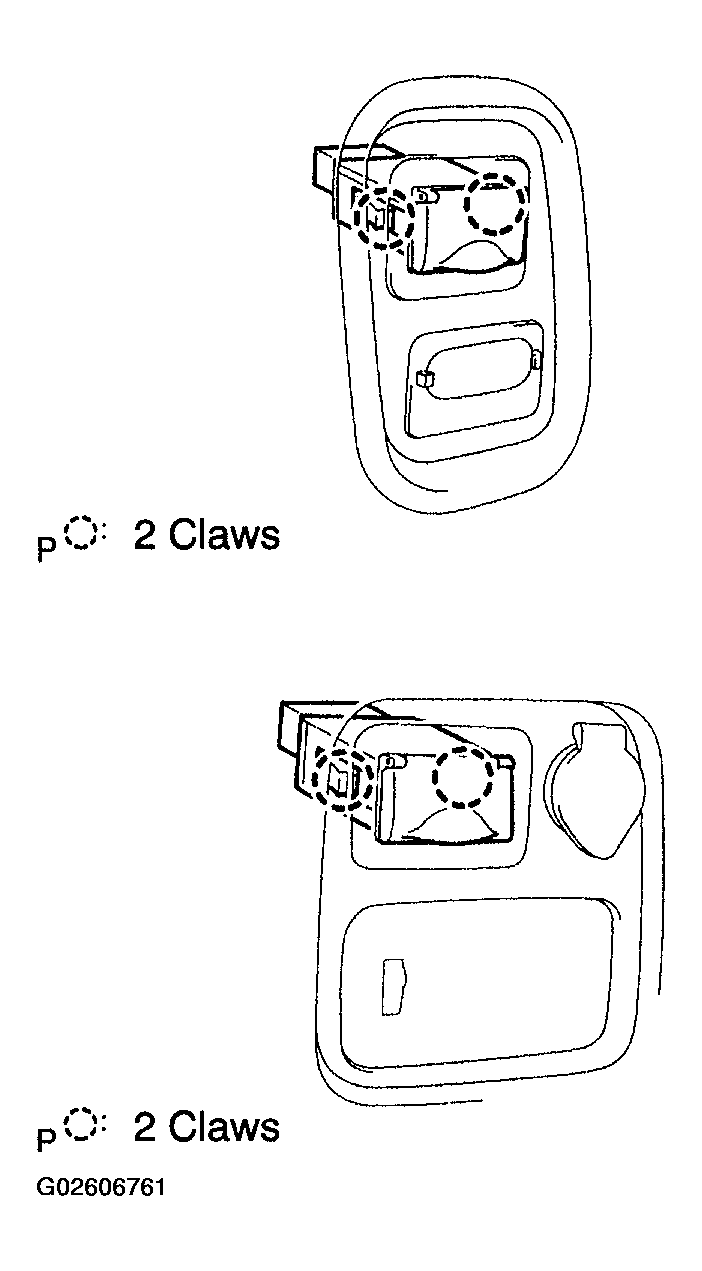

    Fig 1: Removing Power Point Socket Assy
    G02606761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


HINT:

See COMPONENTS

  1. REMOVE REAR DOOR SCUFF PLATE LH (See  REPLACEMENT  )
  2. REMOVE REAR DOOR WEATHERSTRIP LH (See  REPLACEMENT  )
  3. REMOVE BACK DOOR WEATHERSTRIP (See  REPLACEMENT  )
  4. REMOVE BACK DOOR SCUFF PLATE (See  REPLACEMENT  )
  5. REMOVE QUARTER TRIM PANEL ASSY FRONT LH (See  REPLACEMENT  )
  6. REMOVE POWER POINT SOCKET ASSY
    1. Release the 2 claw fittings and remove the power point socket assy.

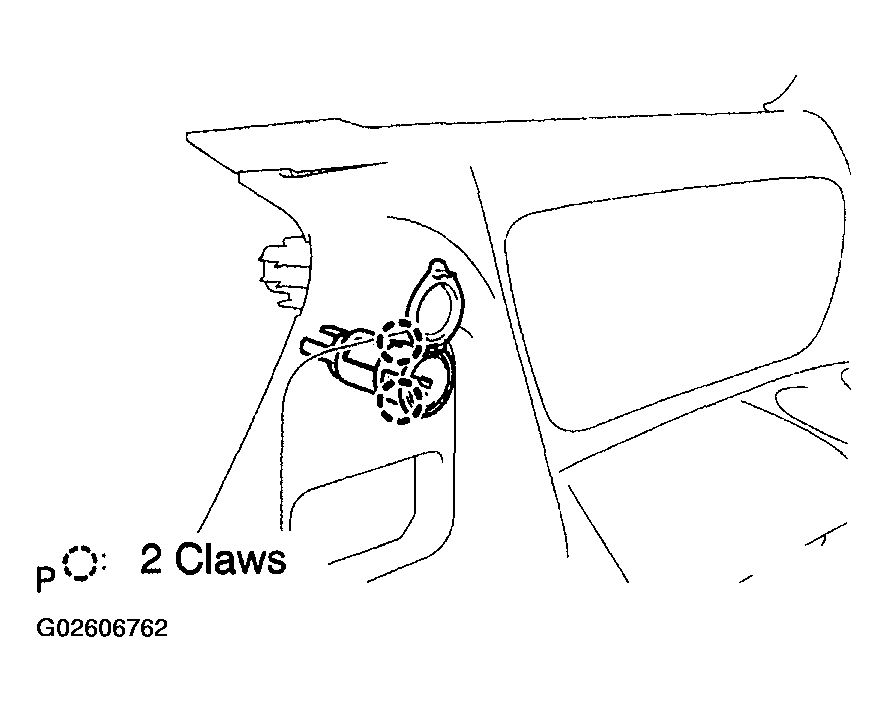

    Fig 1: Removing Power Point Socket Assy
    G02606762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
