Radio Receiver ASSY: Replacement

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

See COMPONENTS

  1. REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER NO.1 (See  REPLACEMENT  )
  2. REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER NO.2 (See  REPLACEMENT  )
  3. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH (See  REPLACEMENT  )
  4. REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET
    1. Disconnect the connectors and remove the 4 screws and the radio receiver assembly w/ bracket.

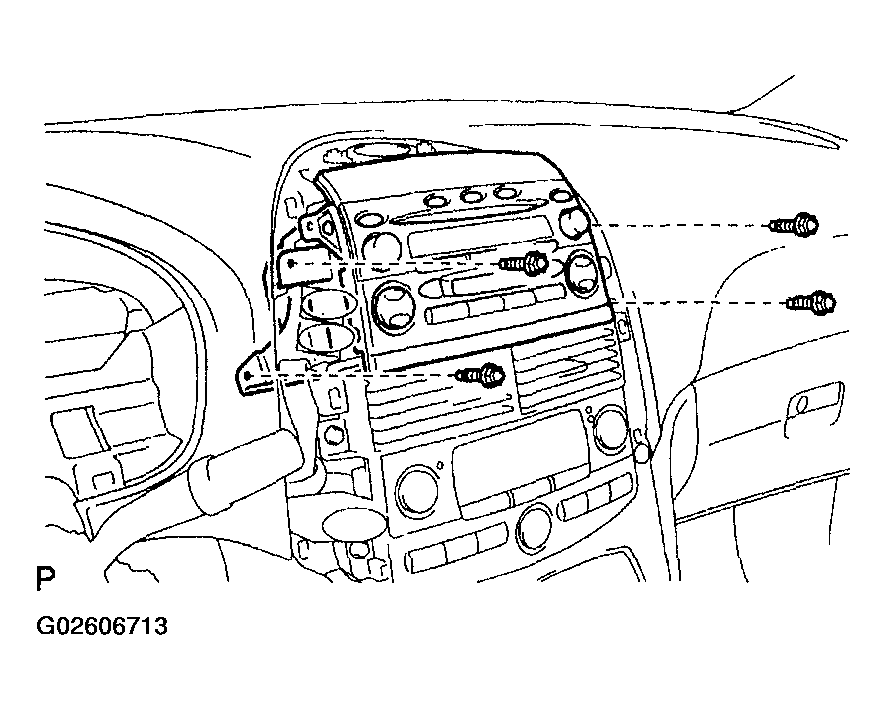

      Fig 1: Removing Radio Receiver Assembly With Bracket
      G02606713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE RADIO BRACKET NO.1
    1. Remove the 4 screws and the radio bracket No.1.

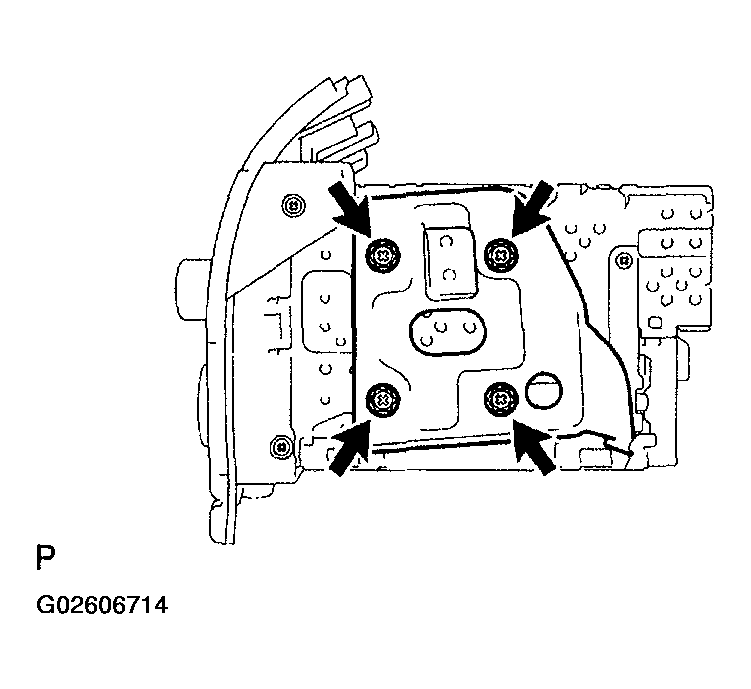

      Fig 2: Removing Radio Bracket No. 1
      G02606714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE RADIO BRACKET NO.2
    1. Remove the 4 screws and the radio bracket No.2.

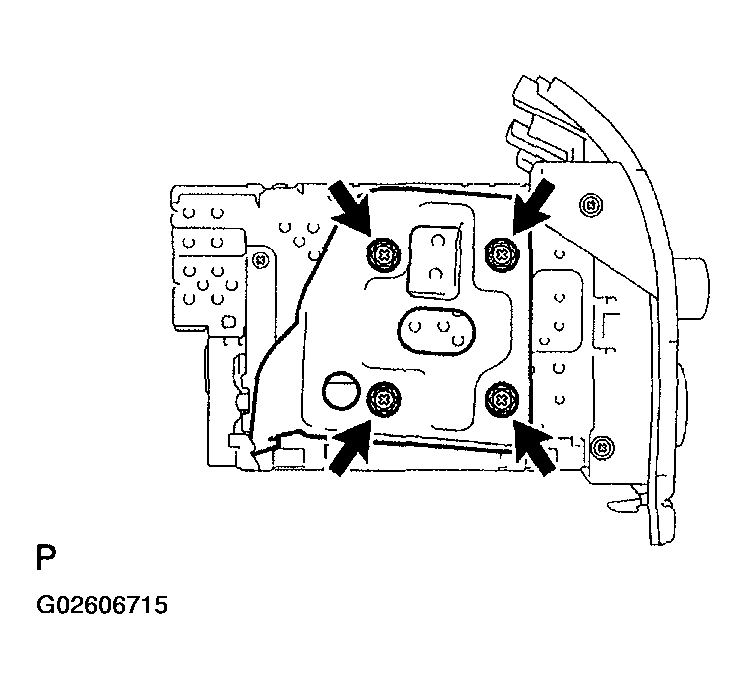

      Fig 3: Removing Radio Bracket No. 2
      G02606715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE RADIO RECEIVER ASSY


HINT:

See COMPONENTS

  1. REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER NO.1 (See  REPLACEMENT  )
  2. REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER NO.2 (See  REPLACEMENT  )
  3. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH (See  REPLACEMENT  )
  4. REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET
    1. Disconnect the connectors and remove the 4 screws and the radio receiver assembly w/ bracket.

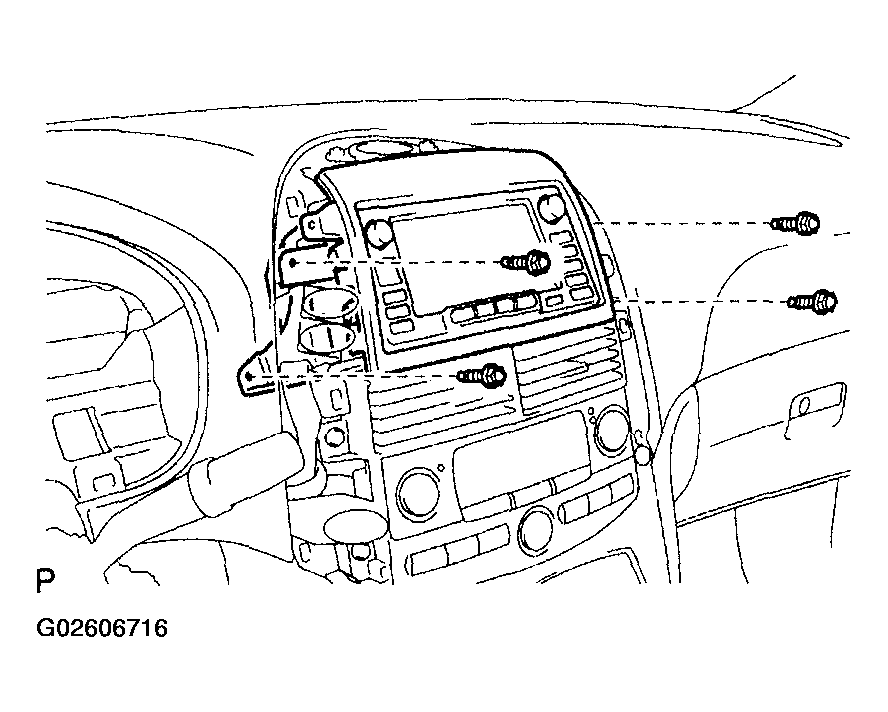

    Fig 1: Removing Radio Receiver Assembly With Bracket
    G02606716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE INSTRUMENT CLUSTER FINISH PANEL UPPER
    1. Remove the 4 screws and the instrument cluster finish panel upper.

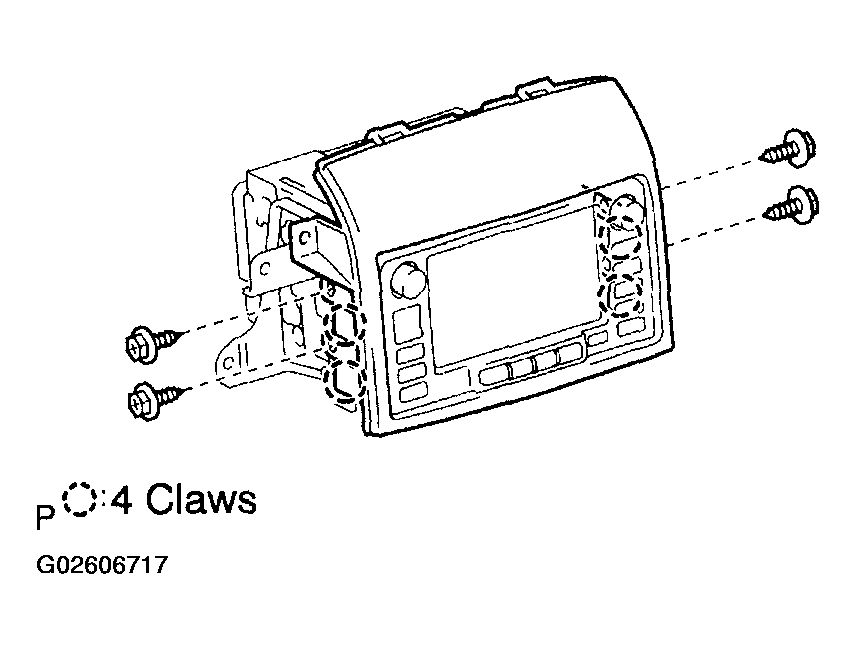

    Fig 2: Removing Instrument Cluster Finish Panel Upper
    G02606717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE RADIO BRACKET NO.1
    1. Remove the 4 screws and the radio bracket No. 1

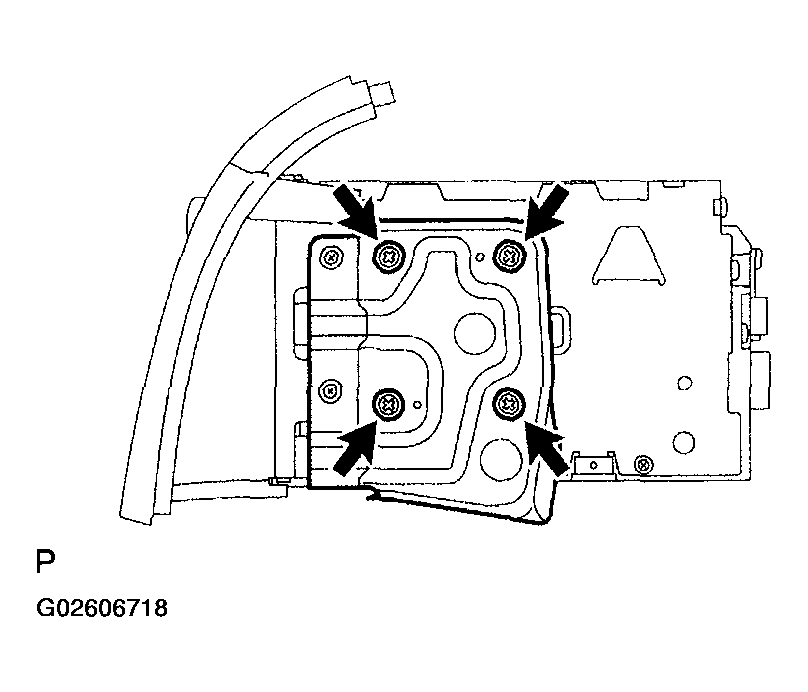

    Fig 3: Removing Radio Bracket No. 1
    G02606718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE RADIO BRACKET NO.2
    1. Remove the 4 screws and the radio bracket No.2.

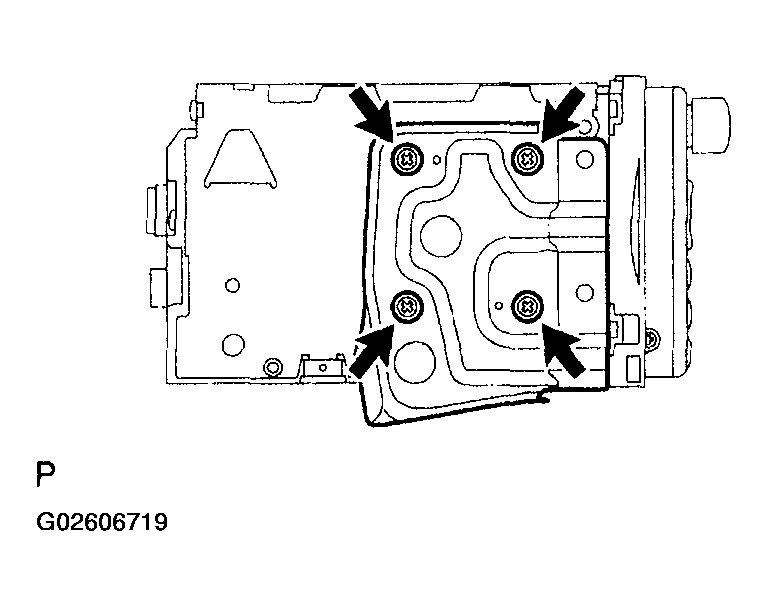

    Fig 4: Removing Radio Bracket No. 2
    G02606719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE RADIO RECEIVER ASSY
