Steering Pad Switch LH: Replacement

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

See COMPONENTS

DISCONNECT BATTERY NEGATIVE TERMINAL (See REPLACEMENT )
REMOVE STEERING WHEEL COVER LOWER NO.2 (See REPLACEMENT )
REMOVE STEERING WHEEL COVER LOWER NO.3 (See REPLACEMENT )
REMOVE HORN BUTTON ASSY (See REPLACEMENT )
REMOVE STEERING PAD SWITCH LH
1. Disconnect the connector.
2. Disconnect the connector of cruise control main switch.
3. Remove the screw.

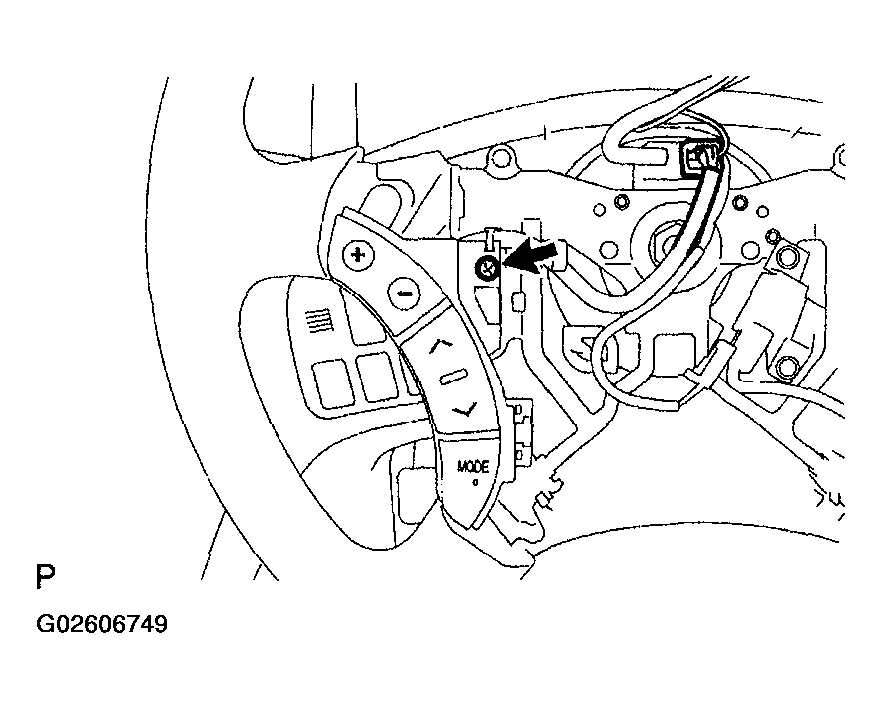

  Fig 1: Removing Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. w/o Laser radar cruise control:
  Release the 2 pin fittings and remove the steering pad switch LH.

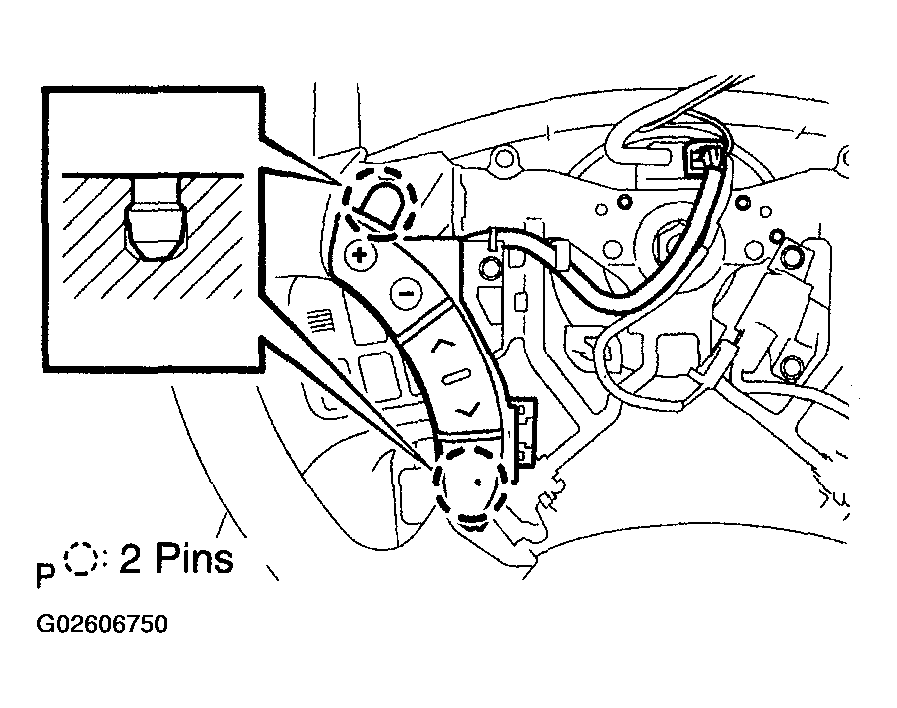

  Fig 2: Removing Steering Pad Switch LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. w/ Laser radar cruise control: Remove the clamp.
6. w/ Laser radar cruise control:
  Release the 2 pin fittings and release the steering pad switch LH from steering wheel.

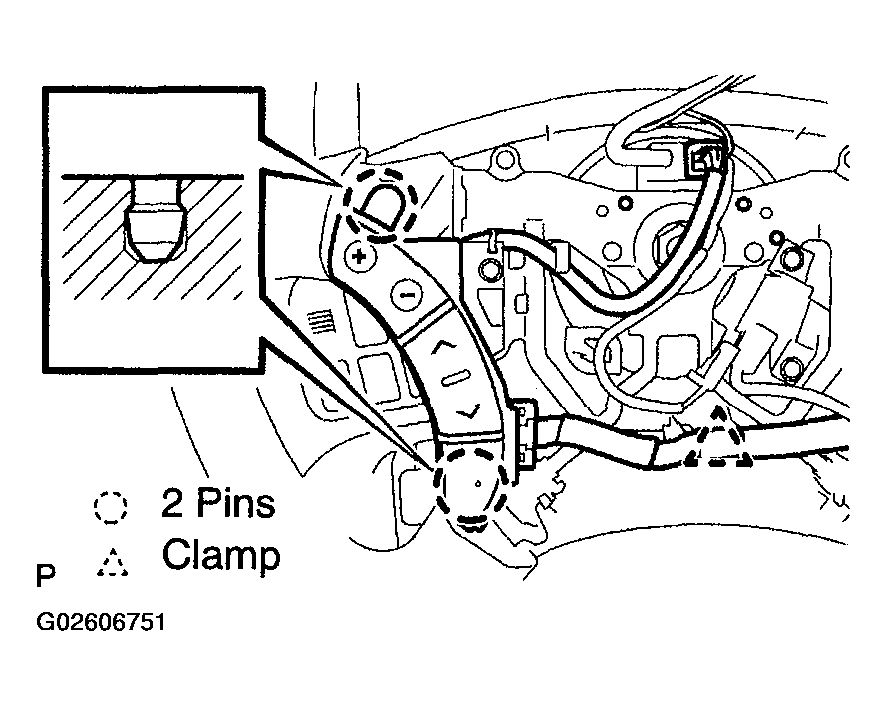

  Fig 3: Removing Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. w/ Laser radar cruise control:
  Release the tab of steering pad switch cable from steering pad switch LH as shown.

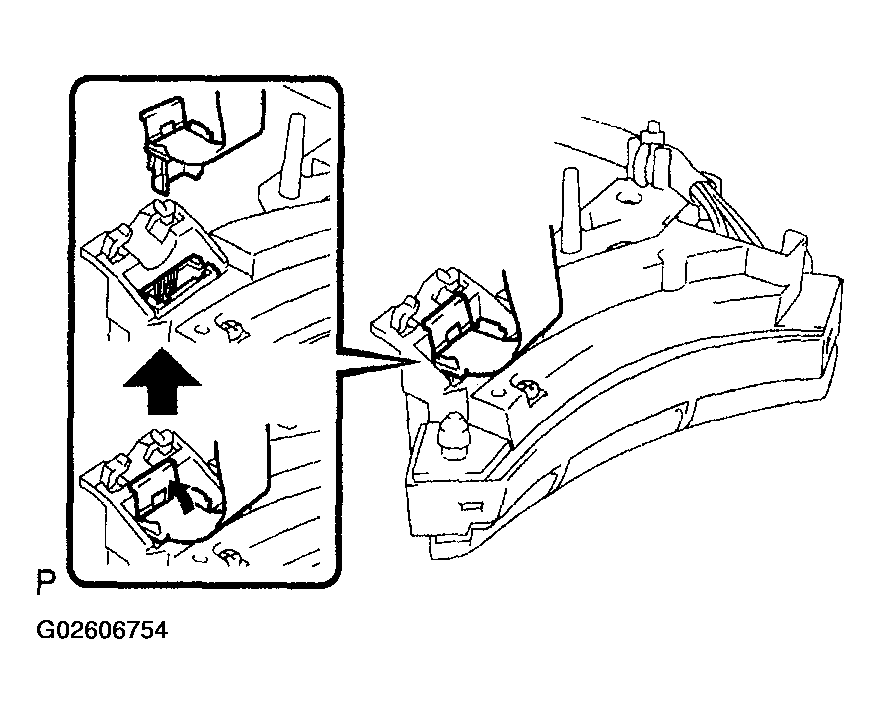

  Fig 4: Releasing Tab Of Steering Pad Switch Cable From Steering Pad Switch LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. w/ Laser radar cruise control:
  Disengage the 2 claws as shown in Fig 5 and open the latch on the top of the connector.

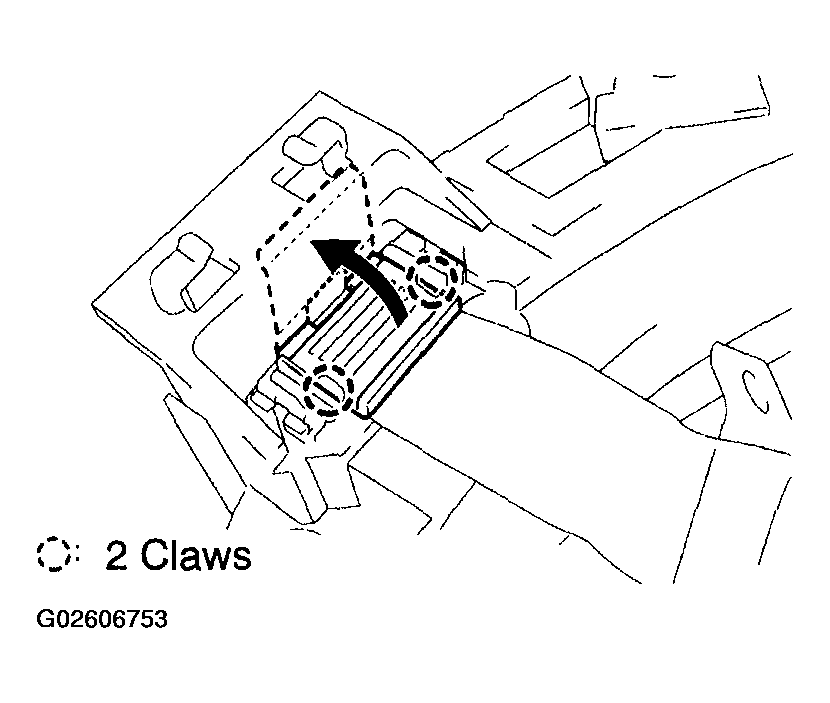

  Fig 5: Disengaging Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. w/ Laser radar cruise control:
  Pull out the connector while pinching the latch with fingers and disconnect the steering pad switch cable from the steering pad switch LH.

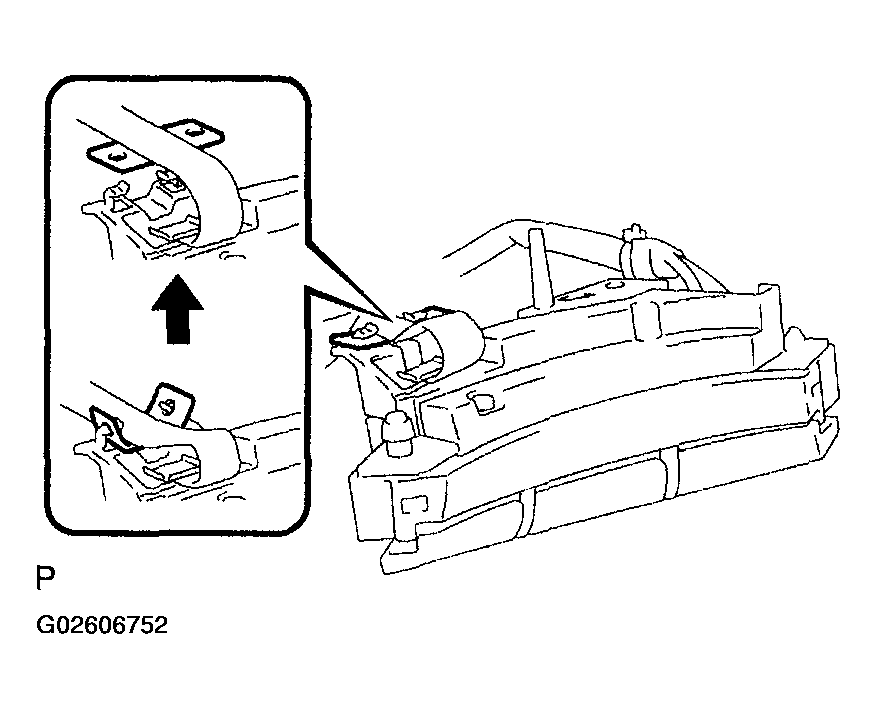

  Fig 6: Disconnecting Steering Pad Switch Cable From Steering Pad Switch LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HORN BUTTON ASSY (See REPLACEMENT )
INSPECT HORN BUTTON ASSY (See SUPPLEMENTAL RESTRAINT SYSTEM )
INSPECT SRS WARNING LIGHT (See DIAGNOSIS SYSTEM )
