Stereo Component Controller ASSY: Replacement

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

See COMPONENTS

REMOVE RADIO REMOTE CONTROL BASE
1. Release the 4 clips and remove the 2 screws and the radio remote control base.

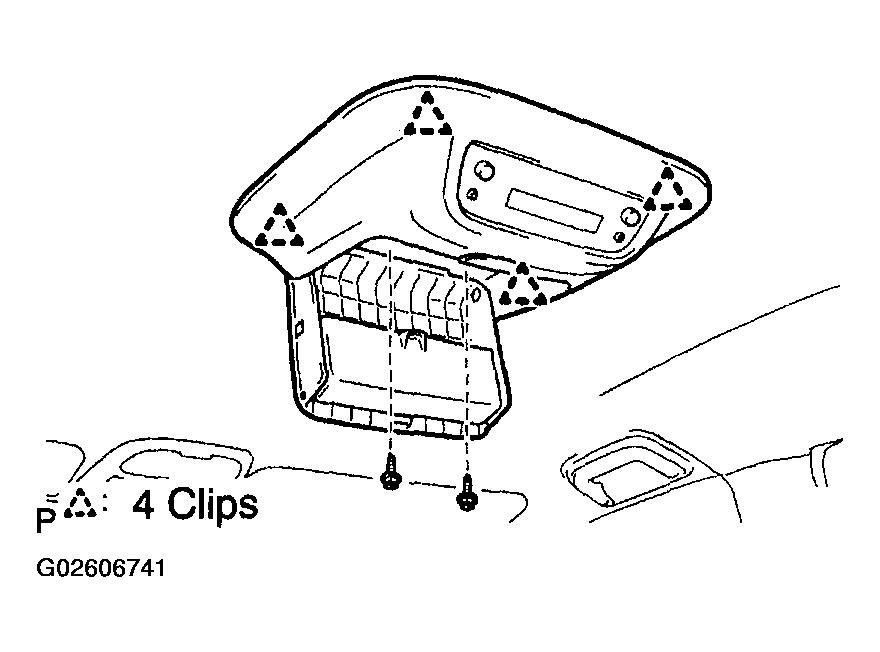

Fig 1: Removing Radio Remote Control Base
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STEREO COMPONENT CONTROLLER ASSY
1. Disconnect the connector and remove the 4 bolts and the stereo component controller assy.

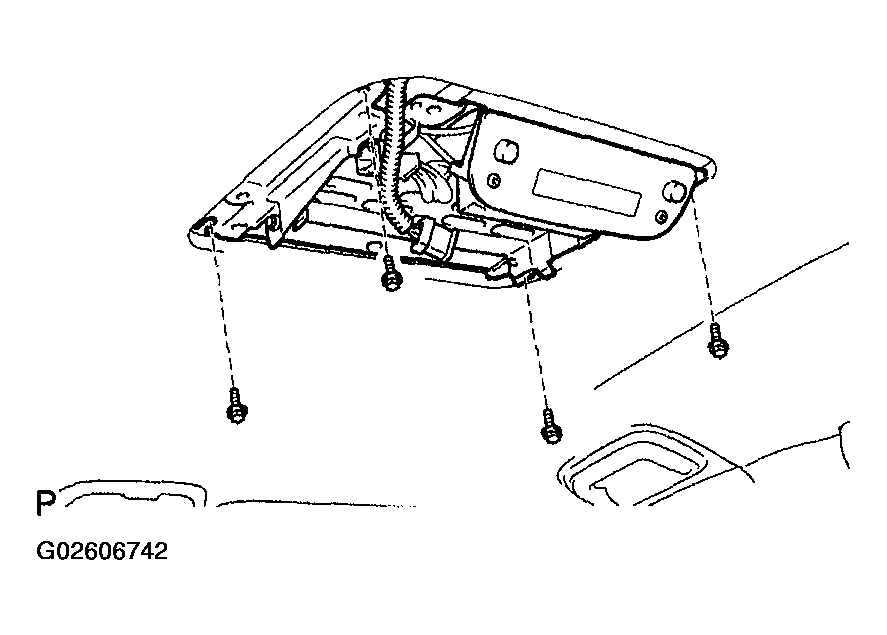

Fig 2: Removing Stereo Component Controller Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
