Television Display ASSY: Replacement

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

See COMPONENTS

REMOVE TELEVISION BASE

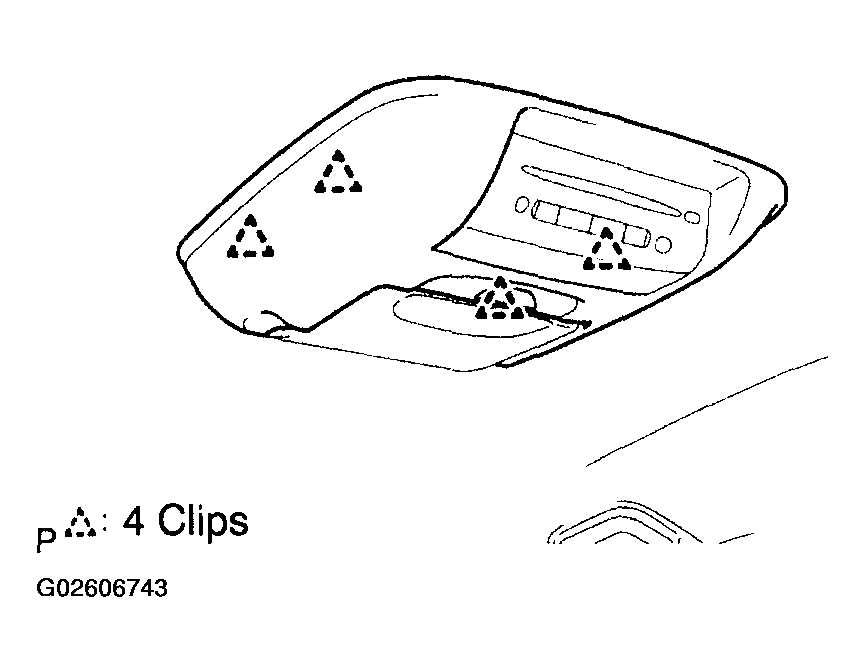

1. Release the 4 clips and remove the television base.
Fig 1: Removing Television Base
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TELEVISION DISPLAY ASSY

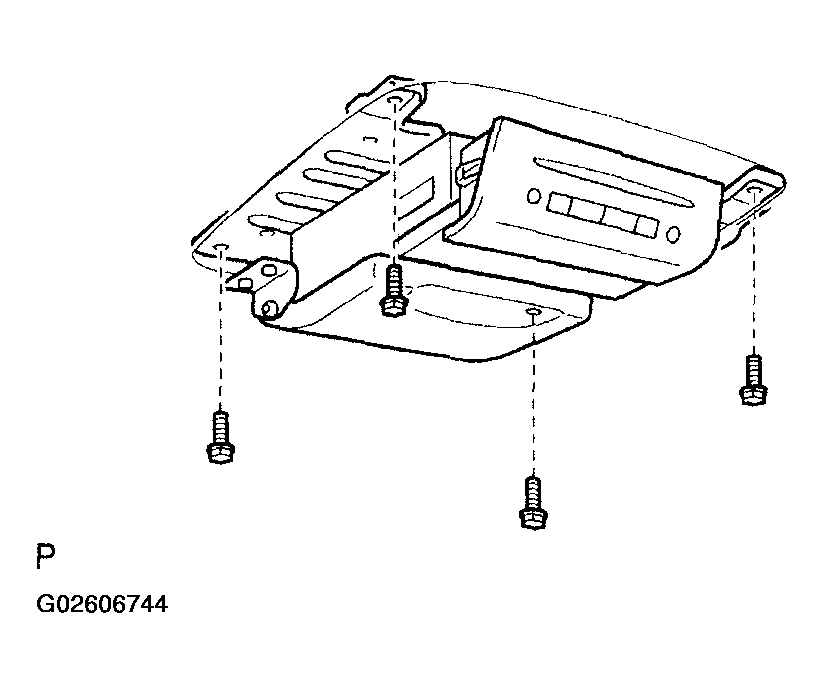

1. Disconnect the connector and remove the 4 bolts and the television display assy.
Fig 2: Removing Television Display Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
