Ultrasonic Sensor No.2: Replacement

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

See COMPONENTS

REMOVE REAR BUMPER COVER (See REPLACEMENT )
REMOVE ULTRASONIC SENSOR RETAINER NO.1
1. Remove the ultrasonic sensor retainer No.1 as shown.

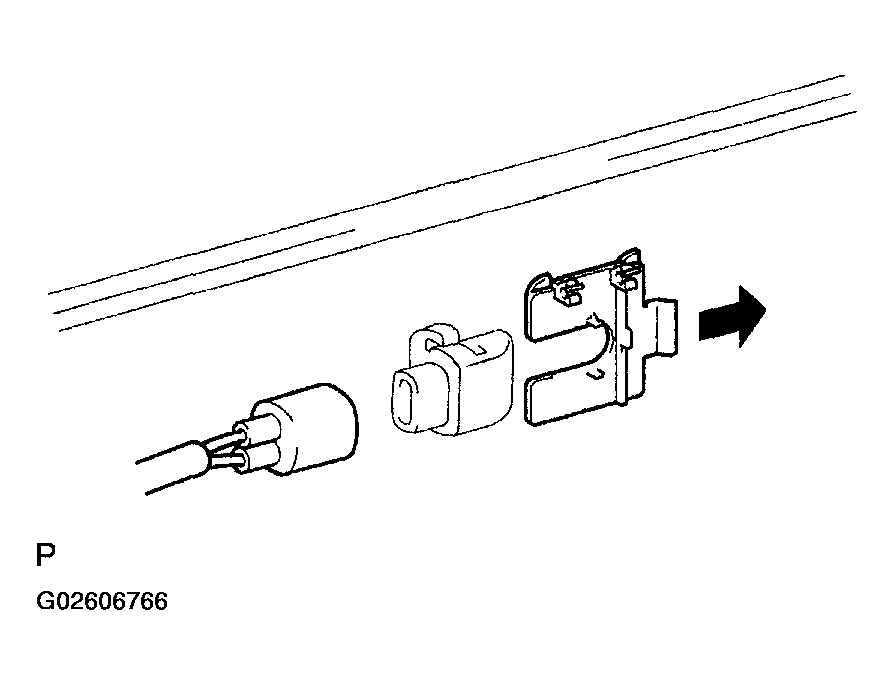

Fig 1: Removing Ultrasonic Sensor Retainer No.1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ULTRASONIC SENSOR NO.2
1. Disconnect connector and remove the ultrasonic sensor No.2.

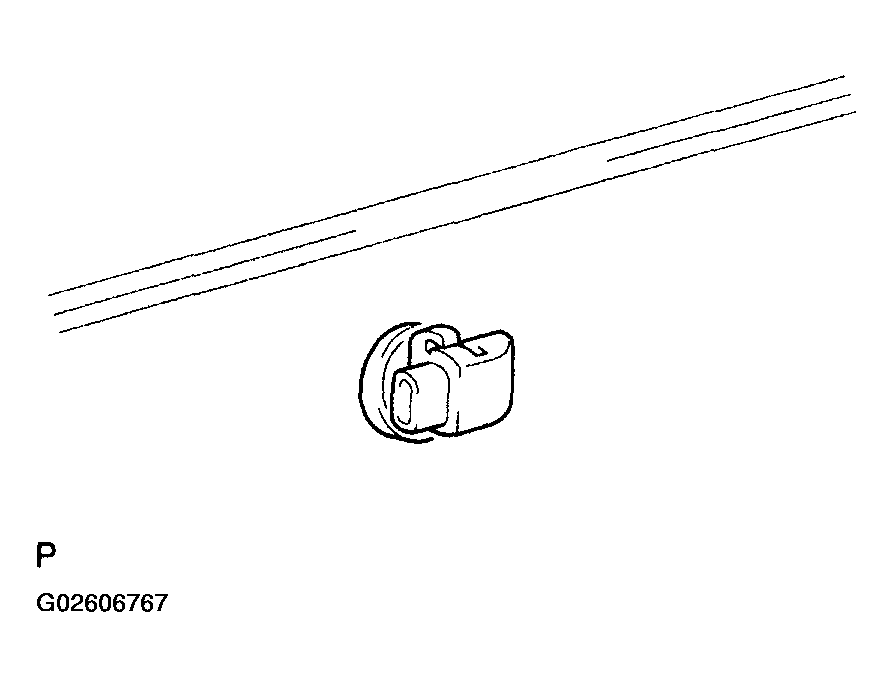

Fig 2: Removing Ultrasonic Sensor No.2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR BUMPER COVER (See REPLACEMENT )
