Power Mirror Control System: Inspection

1. The L side of the left/right adjustment switch:

   Inspect the mirror switch resistance.

   Standard (Left side):

   OUTER MIRROR SWITCH (LEFT SIDE)



   Terminal No.	Switch Position	Specified Condition
   -	OFF	10 kΩ or higher
   4-8	UP	Below 1 Ω
   6-7
   4-7	DOWN	Below 1 Ω
   6-8
   5-8	LEFT	Below 1 Ω
   6-7
   5-7	RIGHT	Below 1 Ω
   6-8

   If the result is not as specified, replace the switch assy.

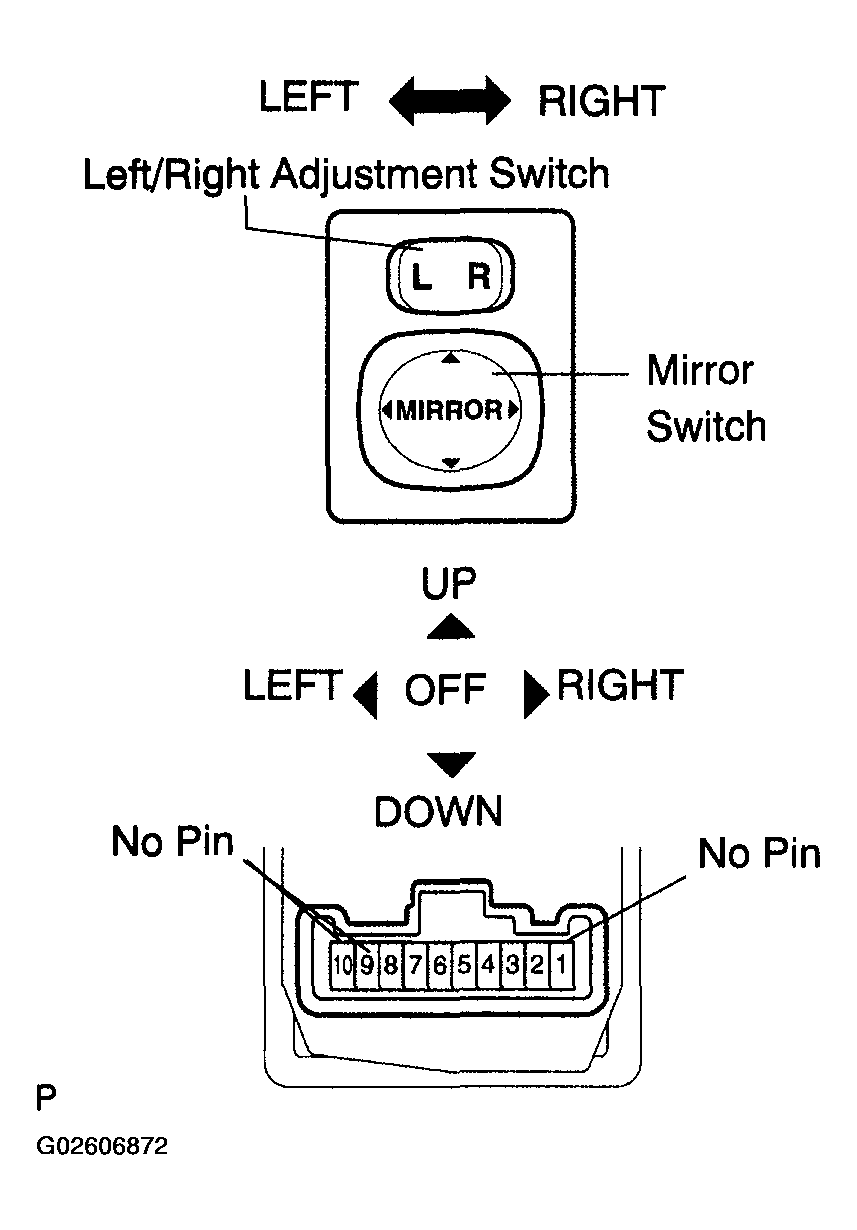

   Fig 1: Inspecting Outer Mirror Switch Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. The R side of the left/right adjustment switch:

   Inspect the mirror switch resistance.

   Standard (Right side):

   OUTER MIRROR SWITCH (RIGHT SIDE)



   Terminal No.	Switch Position	Specified Condition
   -	OFF	10 kΩ or higher
   3-8	UP	Below 1 Ω
   6-7
   3-7	DOWN	Below 1 Ω
   6-8
   2-8	LEFT	Below 1 Ω
   6-7
   2-7	RIGHT	Below 1 Ω
   6-8

   If the result is not as specified, replace the switch assy.

1. Disconnect the mirror connector.
2. Apply battery voltage and inspect operation of the mirror face, as shown in Fig 3 and Fig 2 .

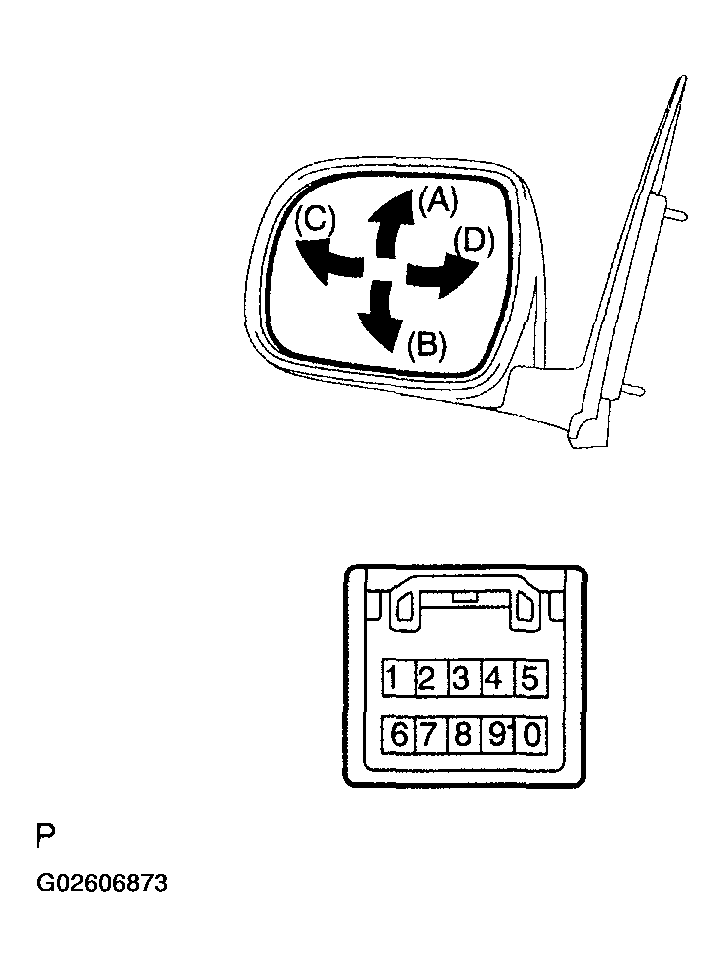

   Fig 2: Applying Voltage And Inspecting Operation Of Mirror Face (LH)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard (LH):

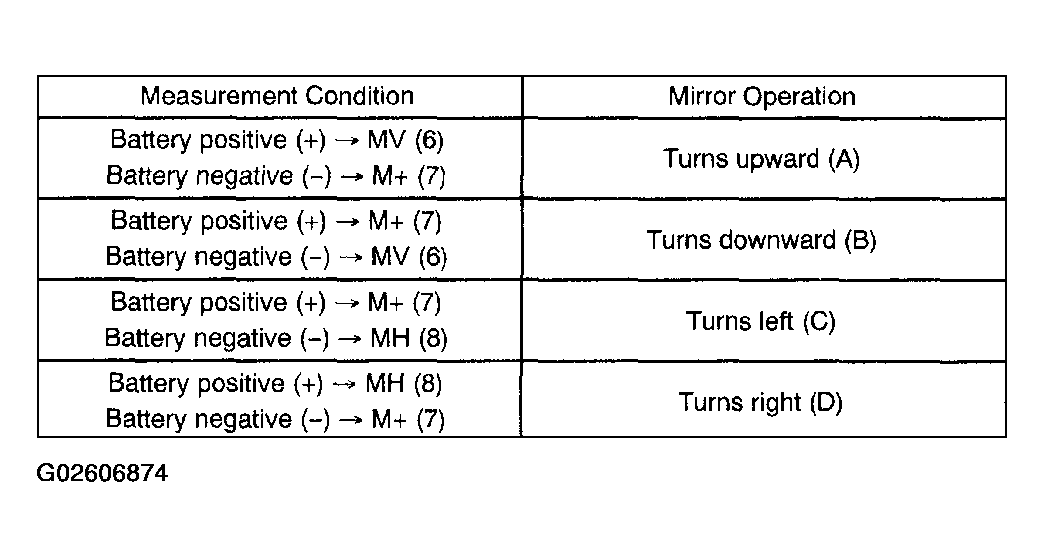

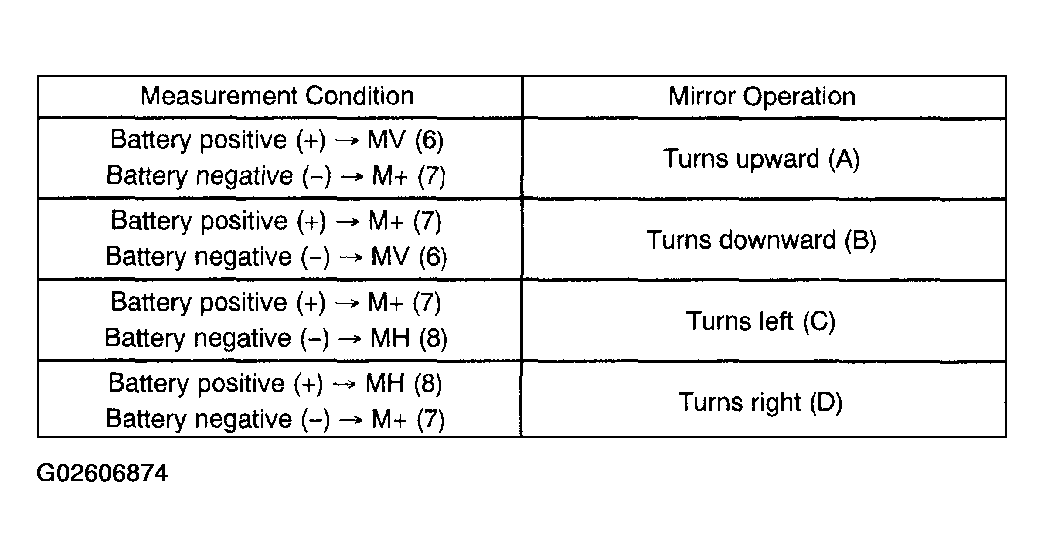

Fig 3: Outer Rear View Mirror Assy LH Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the result is not as specified, replace the mirror assy.

1. Disconnect the mirror connector.
2. Apply battery voltage and inspect operation of the mirror face, as shown in Fig 5 and Fig 4 .

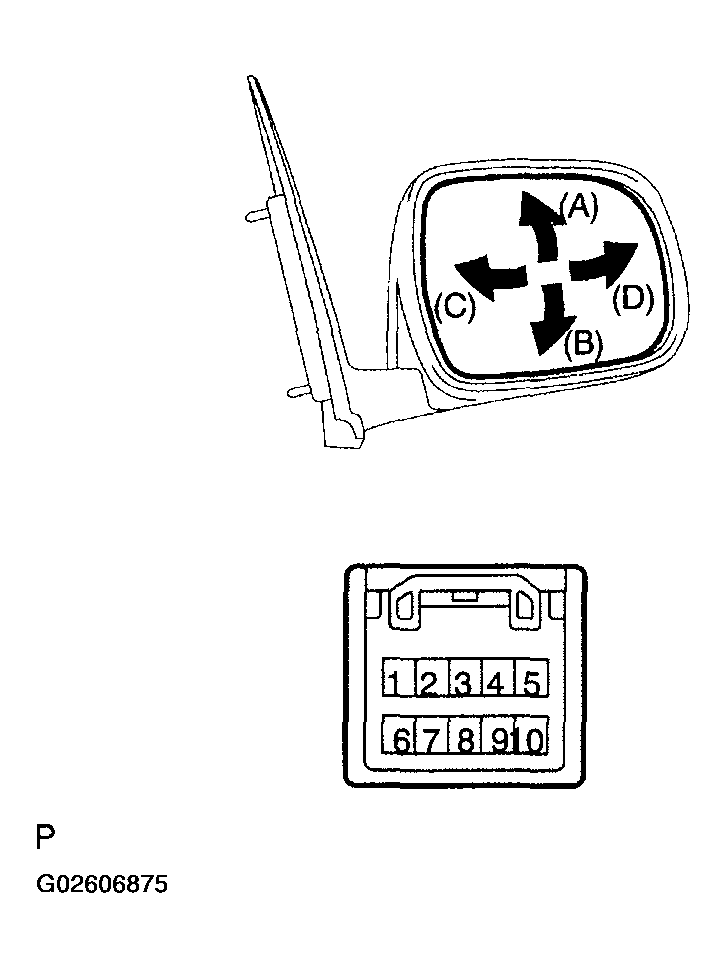

   Fig 4: Applying Voltage And Inspecting Operation Of Mirror Face (RH)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard (RH):

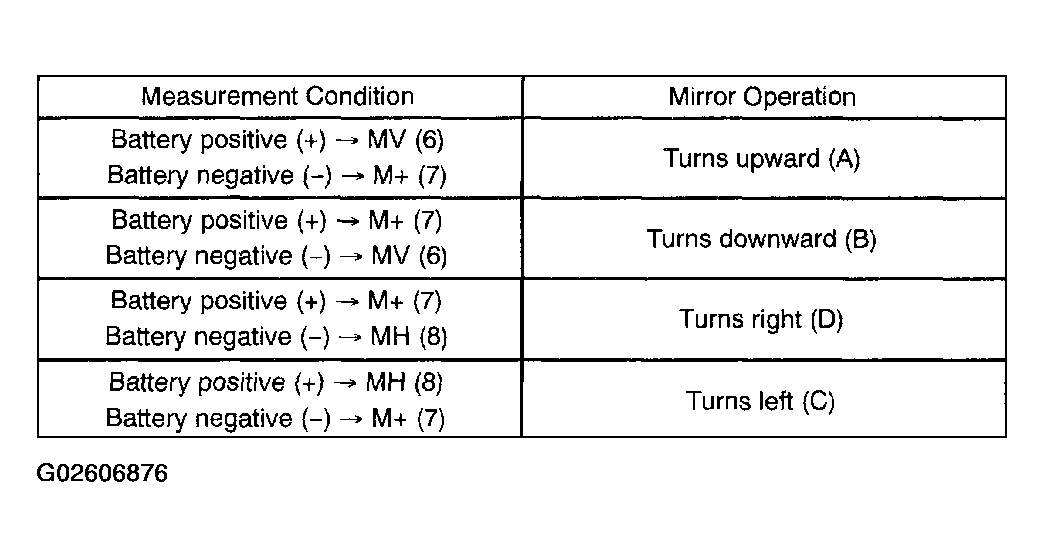

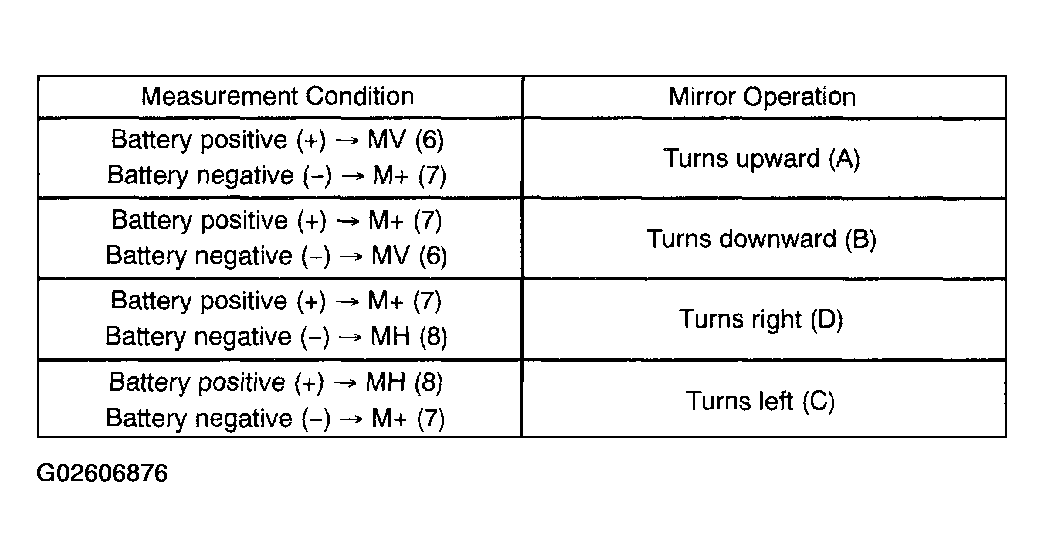

   Fig 5: Outer Rear View Mirror Assy RH Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   If the result is not as specified, replace the mirror assy.
