On-Vehicle Inspection

1. Check the operation.
   1. Using a speedometer tester, inspect the speedometer for acceptable indication error and check the operation of the odometer.

      Reference: km/h (Canada)

      SPEEDOMETER OPERATION CHECK



      Standard indication	Acceptable range
      20 km/h	17.5 - 21.5 km/h
      40 km/h	38.0 - 42.0 km/h
      60 km/h	58.0 - 63.0 km/h
      80 km/h	78.0 - 84.0 km/h
      100 km/h	98.5 - 104.5 km/h
      120 km/h	119.0 - 125.0 km/h
      140 km/h	139.0 - 146.0 km/h
      160 km/h	159.0 - 167.0 km/h

      Reference: MPH (U.S.)

      SPEEDOMETER OPERATION CHECK



      Standard indication	Acceptable range
      20 mph	20.0 - 23.0 mph
      40 mph	40.0 - 43.5 mph
      60 mph	60.0 - 64.0 mph
      80 mph	80.0 - 84.5 mph
      100 mph	100.0 - 105.0 mph

      NOTE: Tire wear and over or under inflation will affect the indication error.
   2. Check the deflection width of the speed meter indicator.

Reference: Below 0.5 km/h (0.3 mph)

1. Check for the signal.
   1. While driving the vehicle at the speed of 10 km/h, check the voltage between the terminal C10-36 of the combination meter assy and the body ground.

   Standard: Fluctuation between 10 to 14 V or less is repeated 7 times within 1 sec.

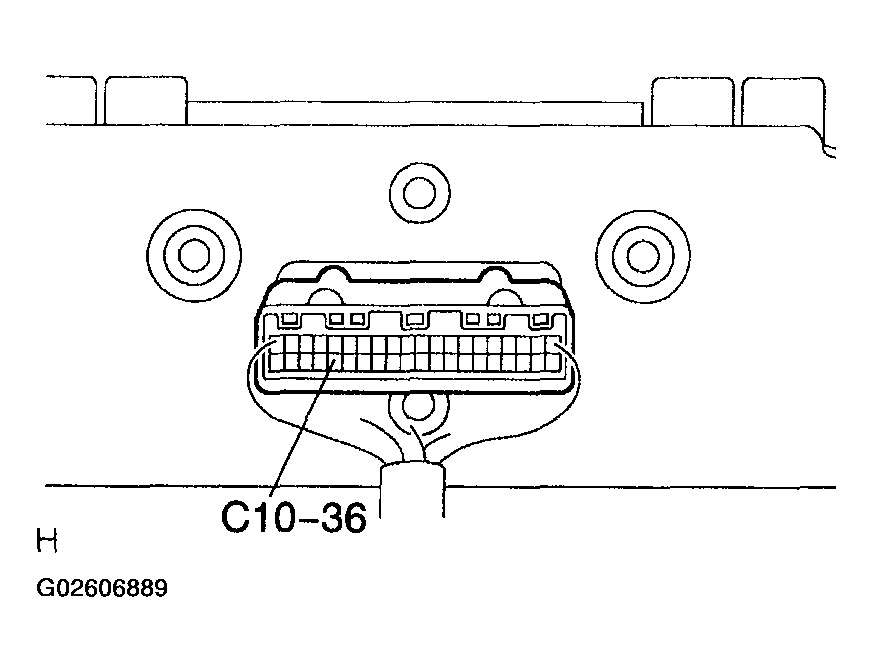

Fig 1: Checking Voltage Between Terminal C10-36

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check the operation
   1. Connect the tune-up test tachometer, and start the engine.
      NOTE:

      • Reversing the connection of the tachometer will damage the transistors and the insides of the diodes.
      • When removing or installing the tachometer, be careful not to drop or subject it to heavy shocks.
   2. Compare the result of the test with standard indication.

   DC 13.5 V, 25°C at (77°F)
