Testing Procedure

WARNING: This page is about a different car, the 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

For wiring diagram, see Fig 1. For testing procedure, see Fig 2.

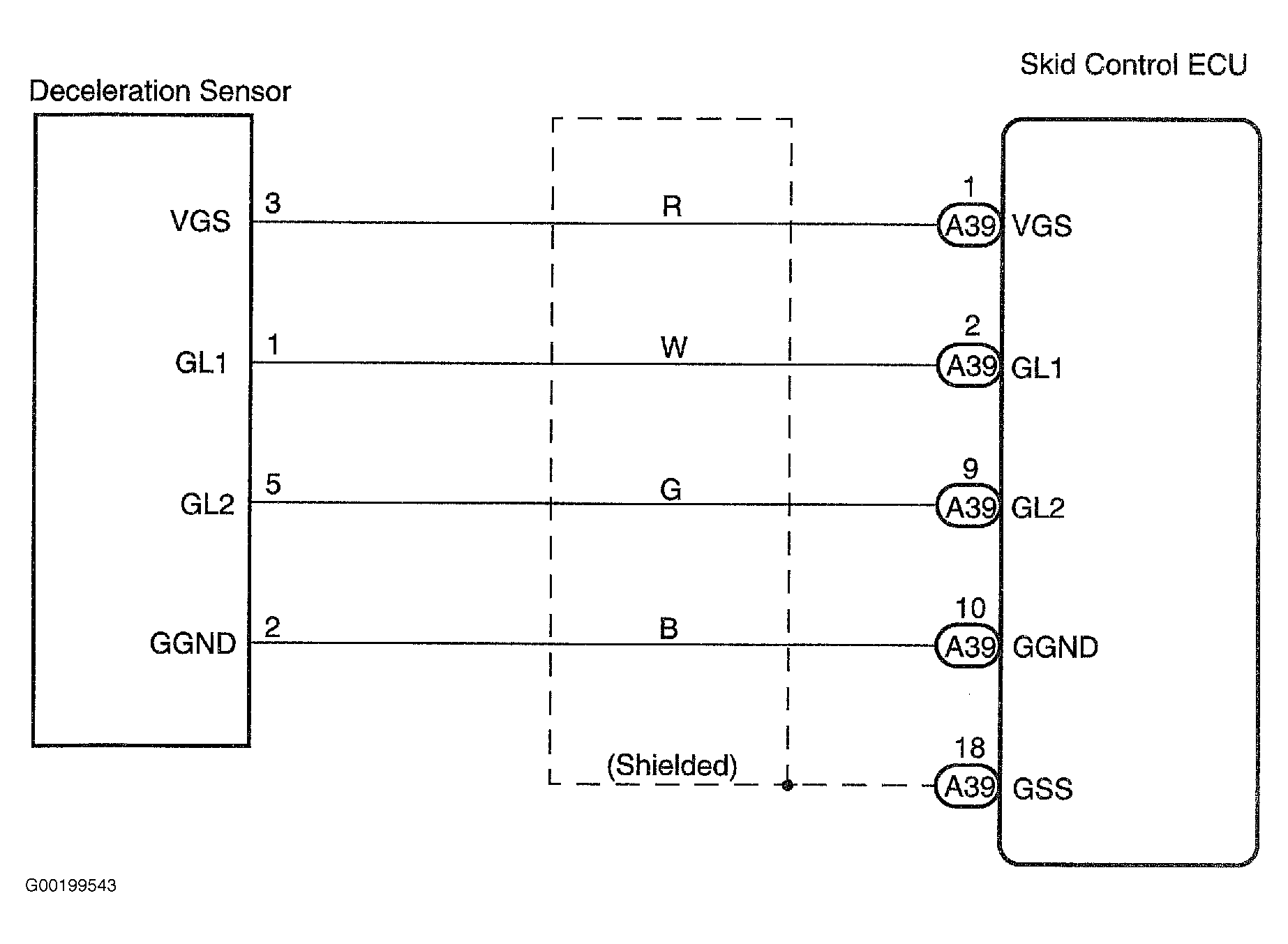

Fig 1: Wiring Diagram Deceleration Sensor Circuit
G00199543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

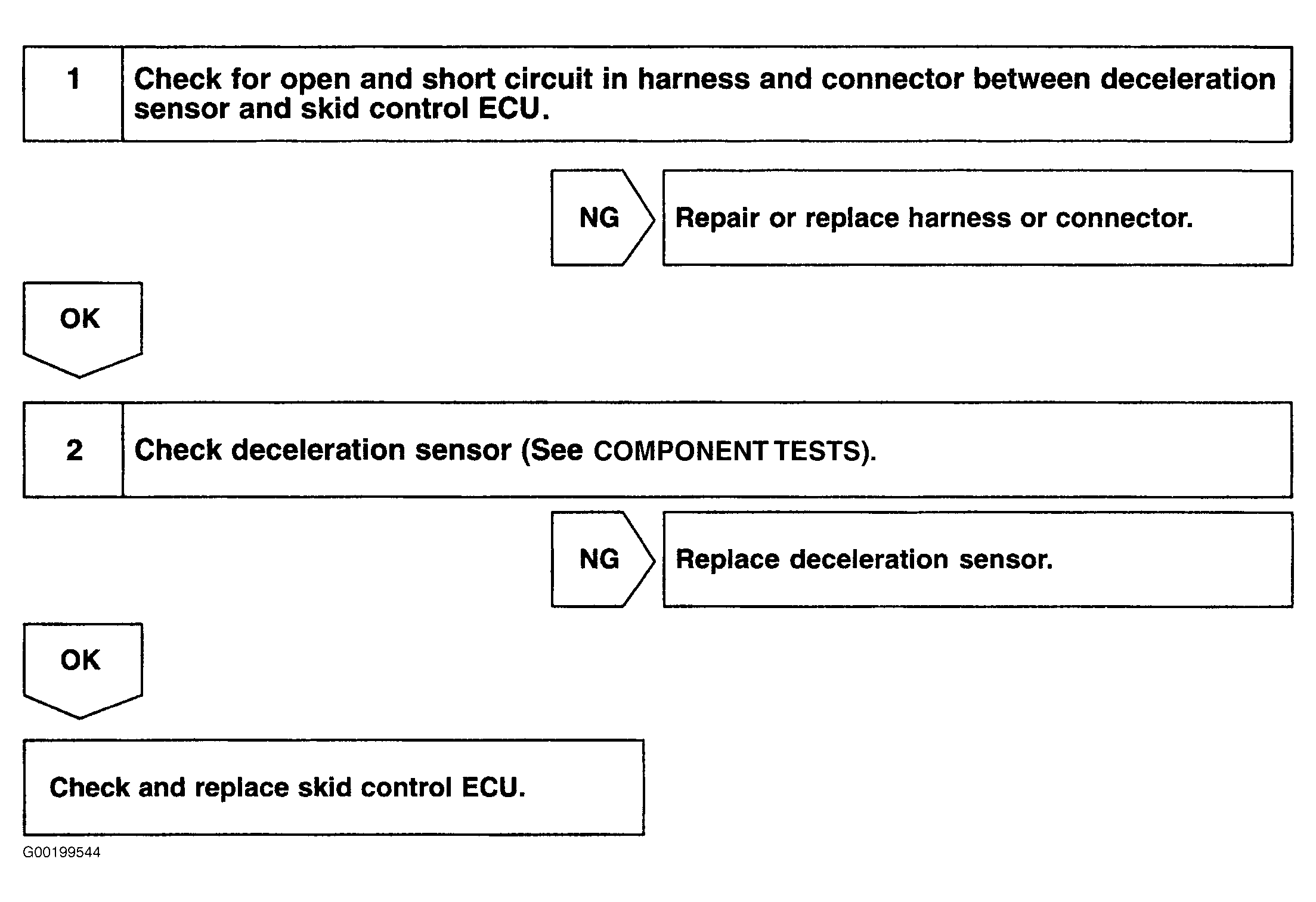

Fig 2: Testing Procedure Deceleration Sensor Circuit
G00199544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
