Connector End View (BE2)

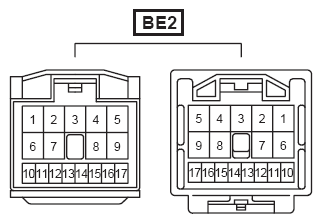

Fig 1: Connector End View (BE2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1: w/Electric Modulated Suspension System and/or Power Adjustable Pedals System

*1: w/o Electric Modulated Suspension System and Power Adjustable Pedals System

*3: 1CD Type Except MARK LEVINSON w/o LEXUS Navigation System

*4: 6CD Type Except MARK LEVINSON w/o LEXUS Navigation System, 1CD Type Except MARK LEVINSON w/LEXUS Navigation System
