Speed Sensor: Replacement

1. Disconnect the speed sensor connector.
2. Remove the bolt and speed sensor.

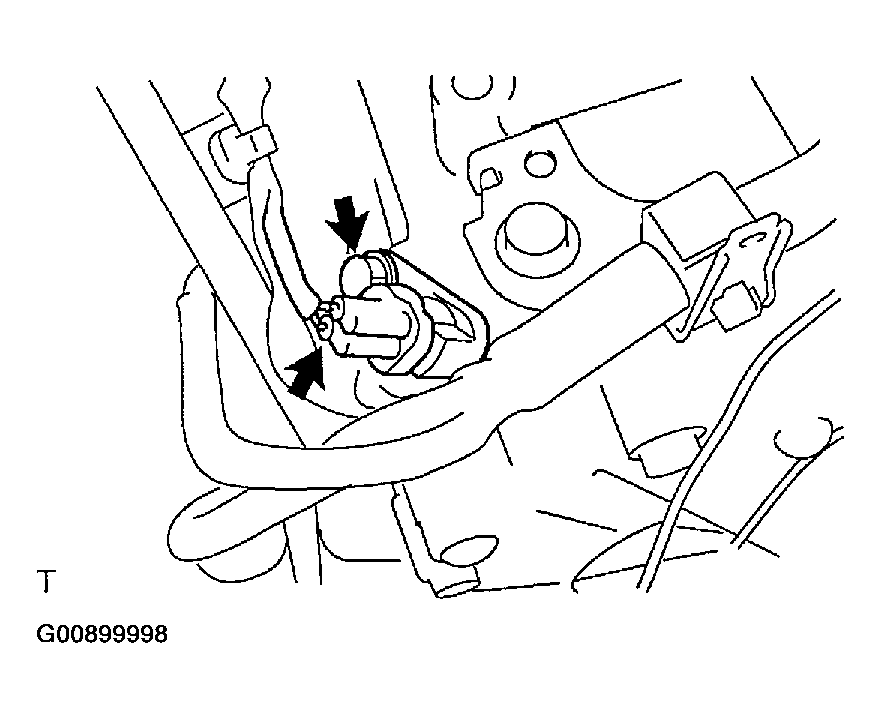

   Fig 1: Locating Speed Sensor For Remove

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the speed sensor connector.
2. Remove the bolt and speed sensor.

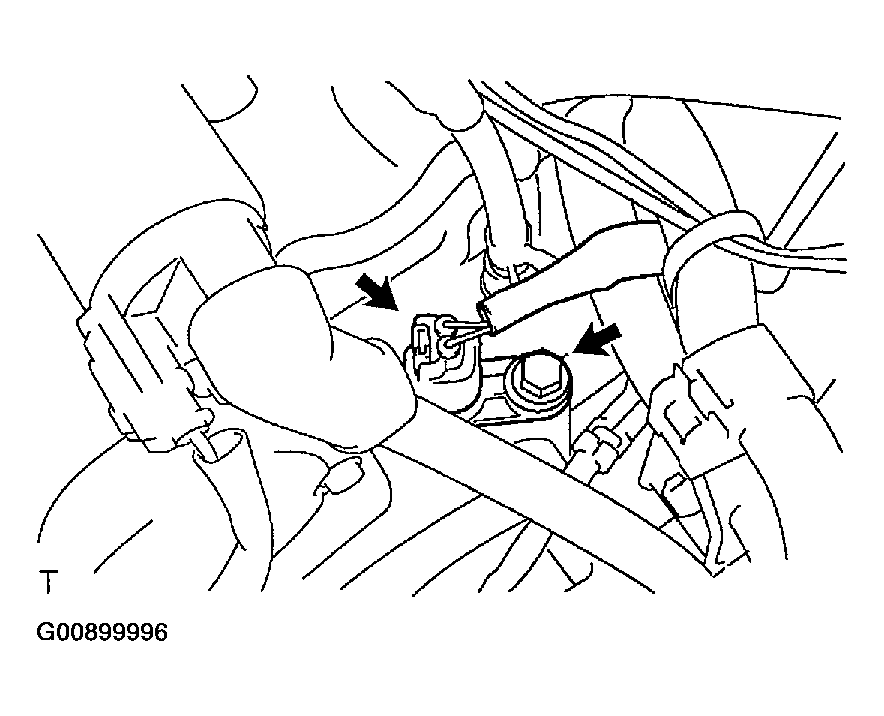

   Fig 2: Removing Speed Sensor (NC Sensor)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat O-ring with the ATF.
2. Install the speed sensor with the bolt.

   Torque: 11.3 N.m (115 kgf.cm, 8 ft.lbf)

   HINT:

   Make sure of the manufacturer's name.

3. Connect the speed sensor connector.
   Fig 3: Installing Speed Sensor (NC Sensor)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat O-ring with ATF.
2. Install the speed sensor with the bolt.

   Torque: 11.3 N.m (115 kgf.cm, 8 ft.lbf)

   HINT:

   Make sure of the manufacturer's name.

3. Connect the speed sensor connector.
   Fig 4: Installing Speed Sensor (NT Sensor)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 5.0 N.m (51 kgf.cm, 44 in. lbf)
