Checking Fluid Levels
CAUTION:
Do not overfill transaxle.
NOTE:
After extended driving at high speeds, in hot weather, in heavy traffic or pulling a trailer, wait until engine cools down (about 30 minutes) before checking fluid level.
- Start and run engine until it reaches normal operating temperature of 158-176°F (70-80°C).
- Park vehicle on level surface.
- With engine idling and brake pedal depressed, shift lever into all positions from "P" to "L" and return to "P" position.
- Pull out dipstick and wipe it clean.
- Place dipstick back into filler pipe.

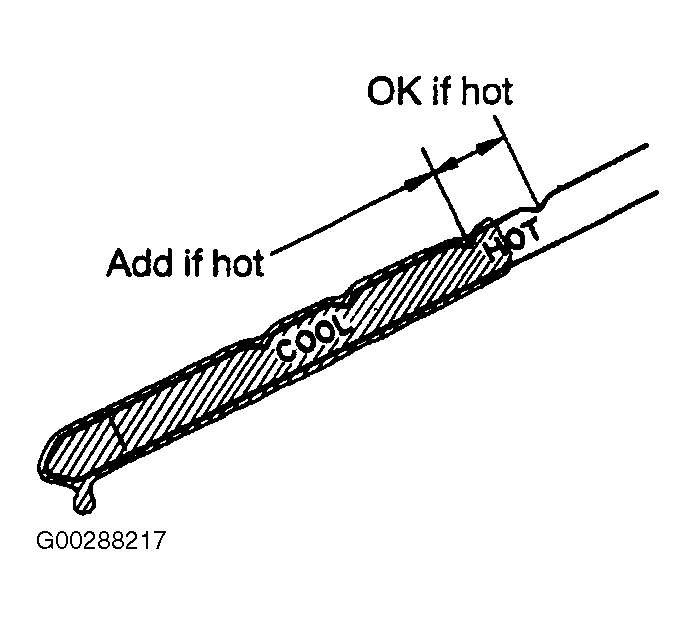

- Pull out dipstick and check that fluid level is in HOT range. See Fig 1. Add fluid if necessary. See RECOMMENDED FLUIDS :
- Check fluid condition. If fluid smells burned or is Black, replace it. See DRAINING & REFILLING .
- Road test vehicle and recheck fluid level to verify it is at proper level.
NOTE:
If engine does not run or fluid has been replaced from a dry fill starting point, use COOL range on dipstick as a rough reference.
