ATF Temperature Sensor And Solenoid Connector Wire: Installation

Coat a NEW "O" ring with ATF and place on solenoid wire connector. See Fig 3. Install the solenoid connector wire and bolt. Tighten bolt to specification. See TORQUE SPECIFICATIONS . Connect the solenoid connector wire connector.
Coat a new "O" ring with ATF and install it on ATF temperature sensor. Install ATF temperature sensor with lock plate and bolt. See Fig 1. Tighten bolt to specification. See TORQUE SPECIFICATIONS .
Connect shift solenoid valve connectors.
Place magnets in oil pan. See Figure. Install oil pan and a NEW gasket. Apply seal packing or equivalent to bolts (Manufacture recommends THREE BOND 2430). Hand tighten bolts. Within 10 minutes of application of seal packing, tighten bolts to specification. See TORQUE SPECIFICATIONS .
Install a NEW gasket and drain plug. Tighten drain plug to specification. See TORQUE SPECIFICATIONS .
Fill transaxle with ATF and check ATF level. See DRAINING & REFILLING .
Install engine undercover No. 1.
Reset memory.

Fig 1: Locating Shift Solenoid Connectors, Wire Harness & ATF Temperature Sensor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

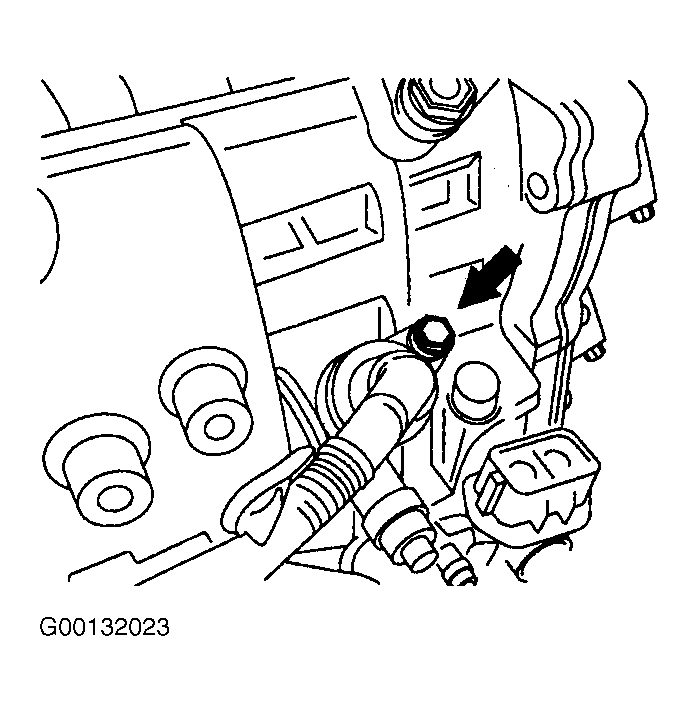

Fig 2: Removing & Installing Solenoid Connector Wire Bolt

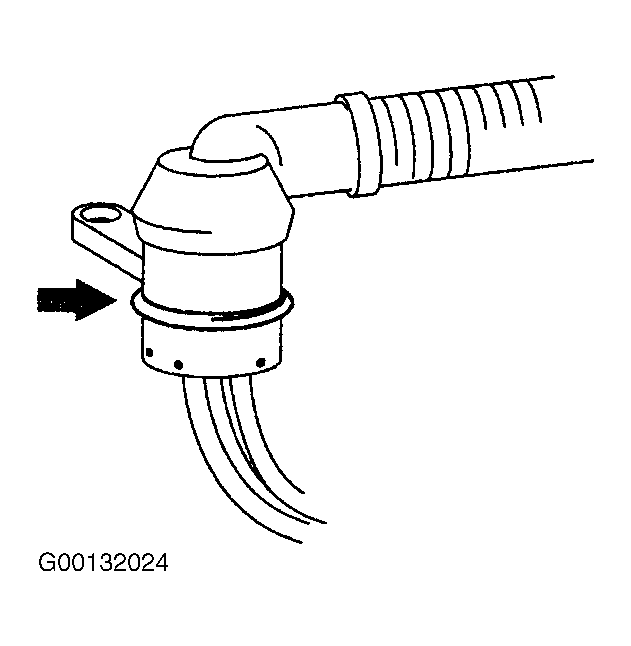

Fig 3: Removing & Installing Solenoid Connector Wire "O" Ring
