Crankshaft Position Sensor: Removal

  1. REMOVE GENERATOR (See  GENERATOR  )
  2. DISCONNECT CRANKSHAFT POSITION SENSOR CONNECTOR
    1. Disconnect the sensor connector.
    2. Remove the bolt holding the connector bracket to the water pump.
  3. REMOVE CRANKSHAFT POSITION SENSOR

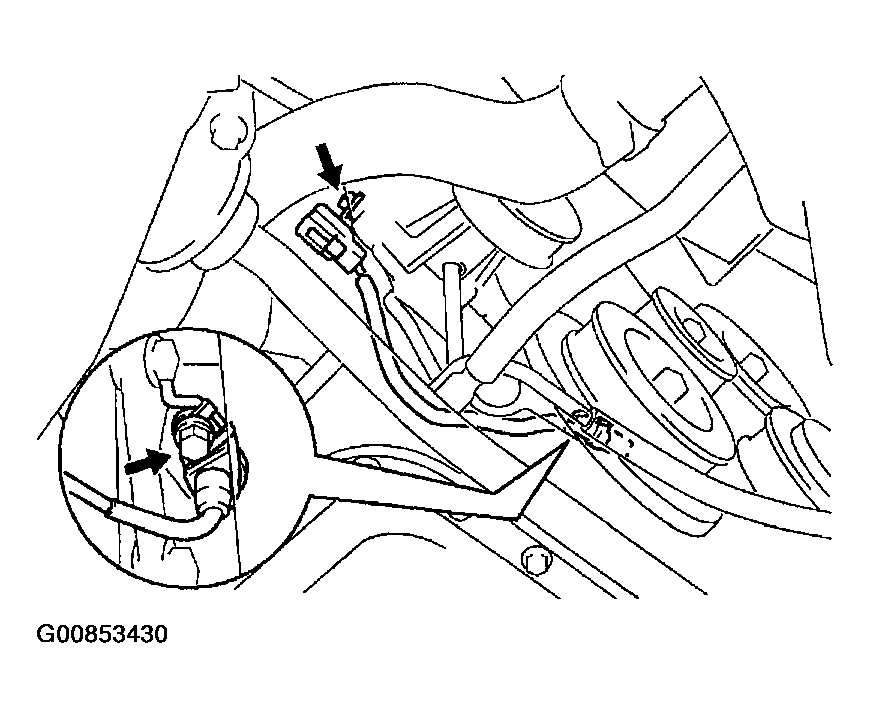

    Fig 1: Removing Crankshaft Position Sensor
    G00853430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the bolt and crankshaft position sensor.

      Torque: 9.0 N.m (90 kgf.Cm, 80 in.lbf)

    2. Remove the connector bracket from the connector.
