Inspection Procedure

Check transmission shift switch.
PREPARATION:
1. Remove the steering wheel pad.
2. Disconnect the transmission shift switch connector.
CHECK:

Check continuity between each terminal of transmission shift switch connector.

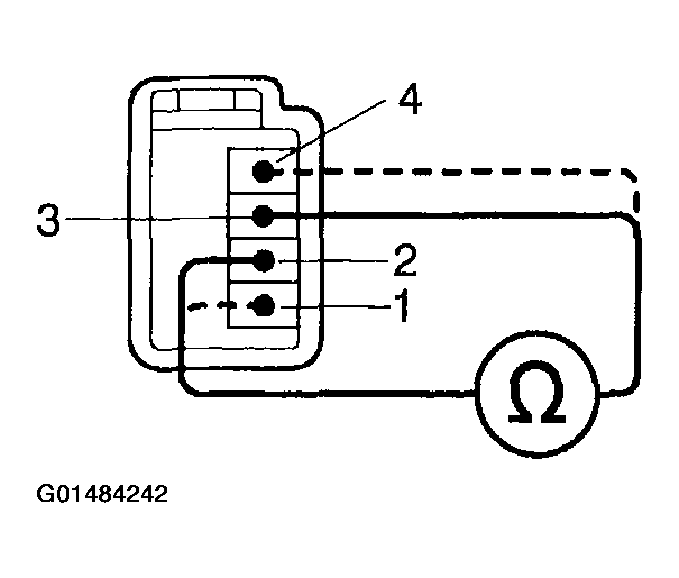

Fig 1: Checking Transmission Shift Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK:

Fig 2: Transmission Shift Switch Continuity
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: Replace the steering wheel.
2. OK: Go to Next Step
Check voltage between each of terminals SFTU, SFTD and E1 of ECM.
PREPARATION:
1. Turn ignition switch ON.
2. Remove the ECM with connectors still connected.
CHECK:

Check voltage between each terminals of SFTU or SFTD and E1 of ECM.

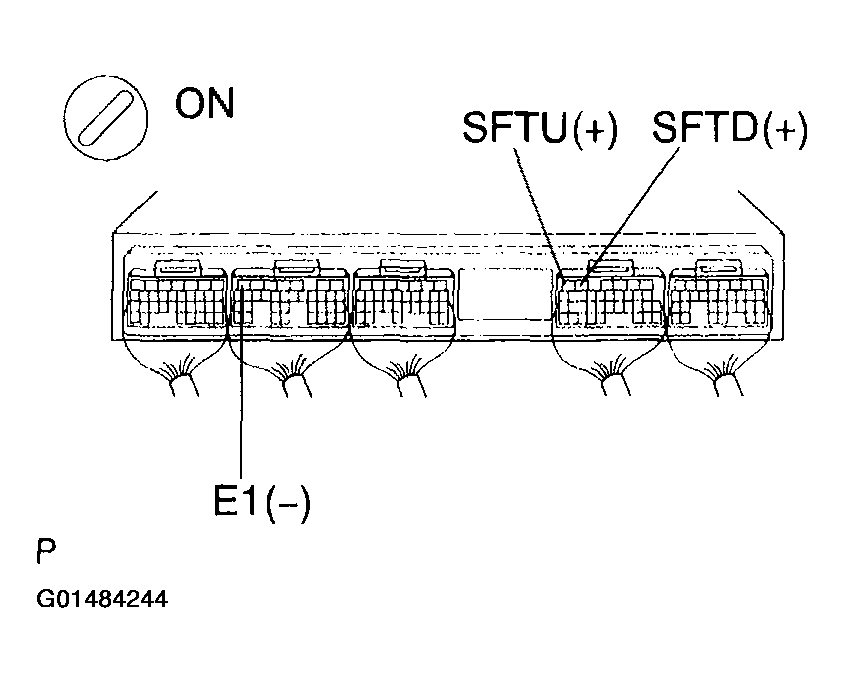

Fig 3: Identifying Terminals SFTU, SFTD & E1 Of ECM
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK:

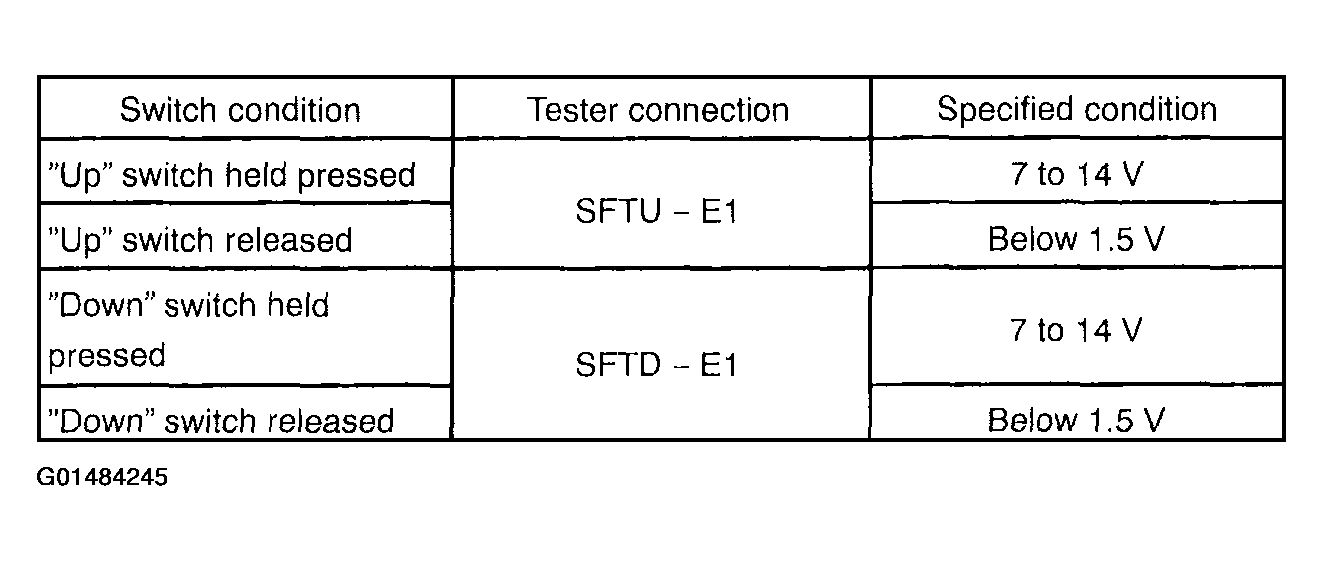

Fig 4: Terminals SFTU, SFTD & E1 Of ECM Voltage Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. OK: Proceed to next circuit inspection shown in problem symptoms table (See PROBLEM SYMPTOMS TABLE ).
2. NG: Go to next step.
  Repair or replace harness or connector (See HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE ).
