Chapter 1: Electronic Circuit Matrix Chart

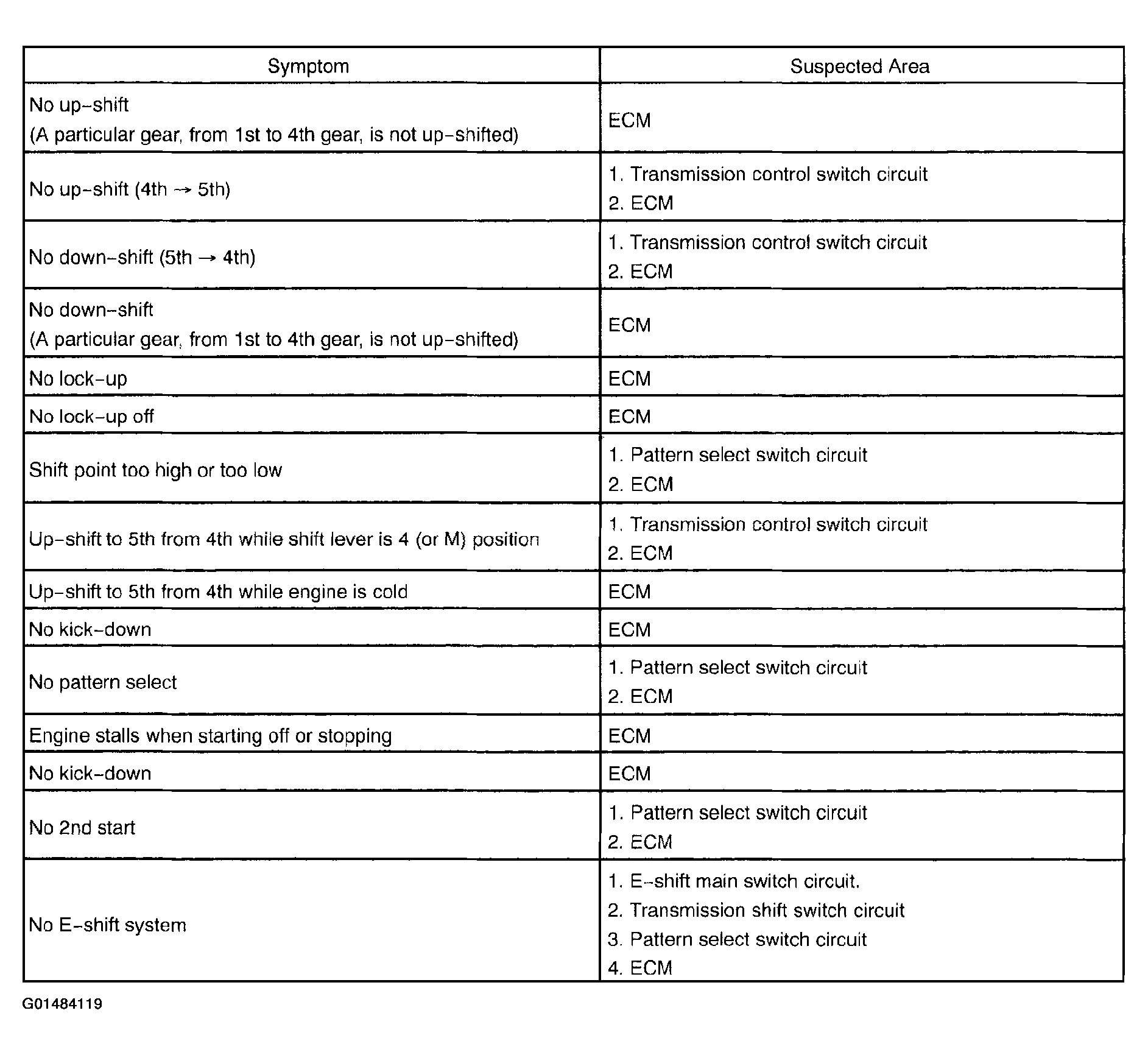

Fig 1: Chapter 1: Electronic Circuit Matrix Chart
G01484119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
