Chapter 2: On-Vehicle Repair

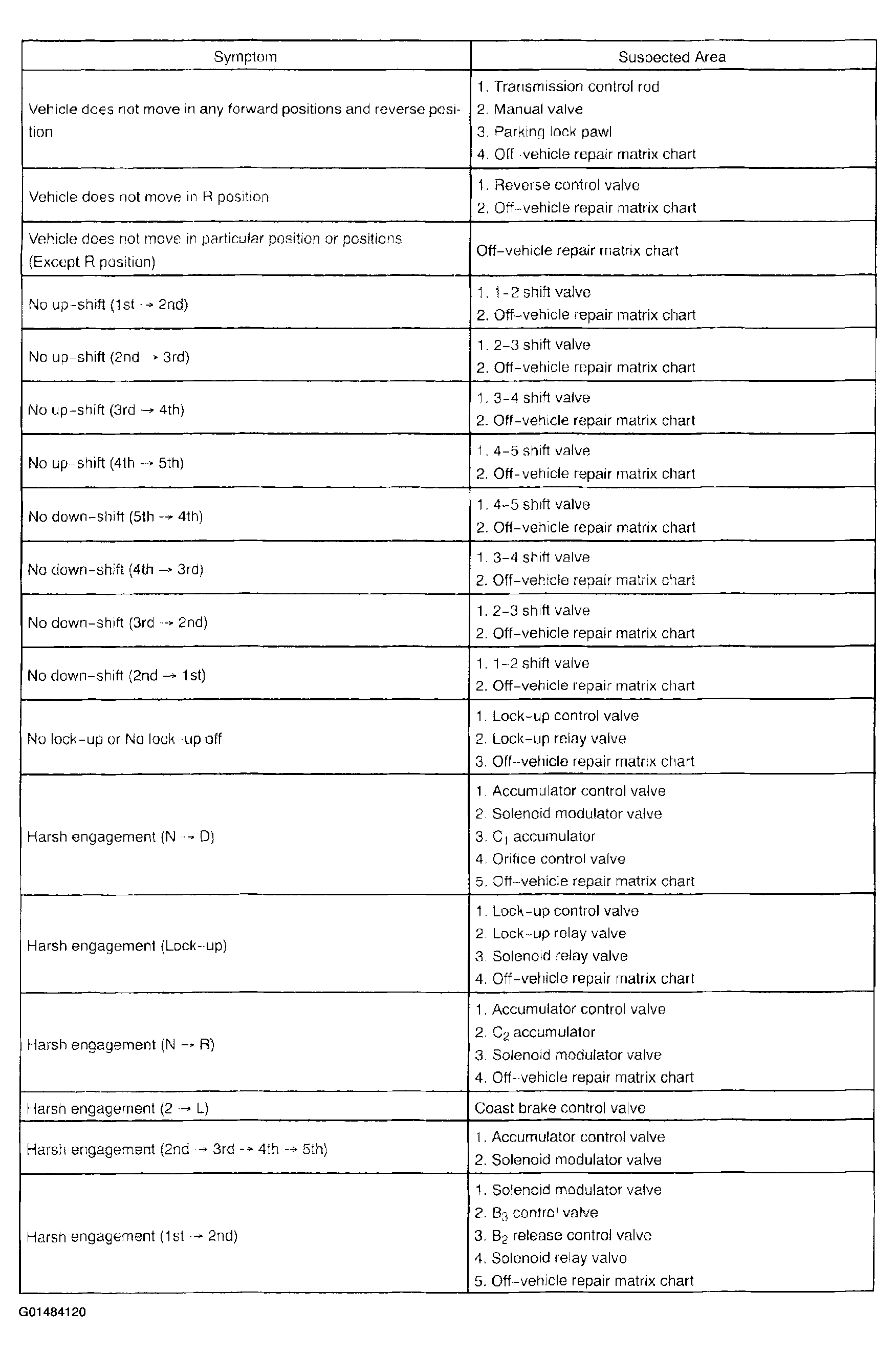

Fig 1: Chapter 2: On-Vehicle Repair Chart (1 Of 2)
G01484120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

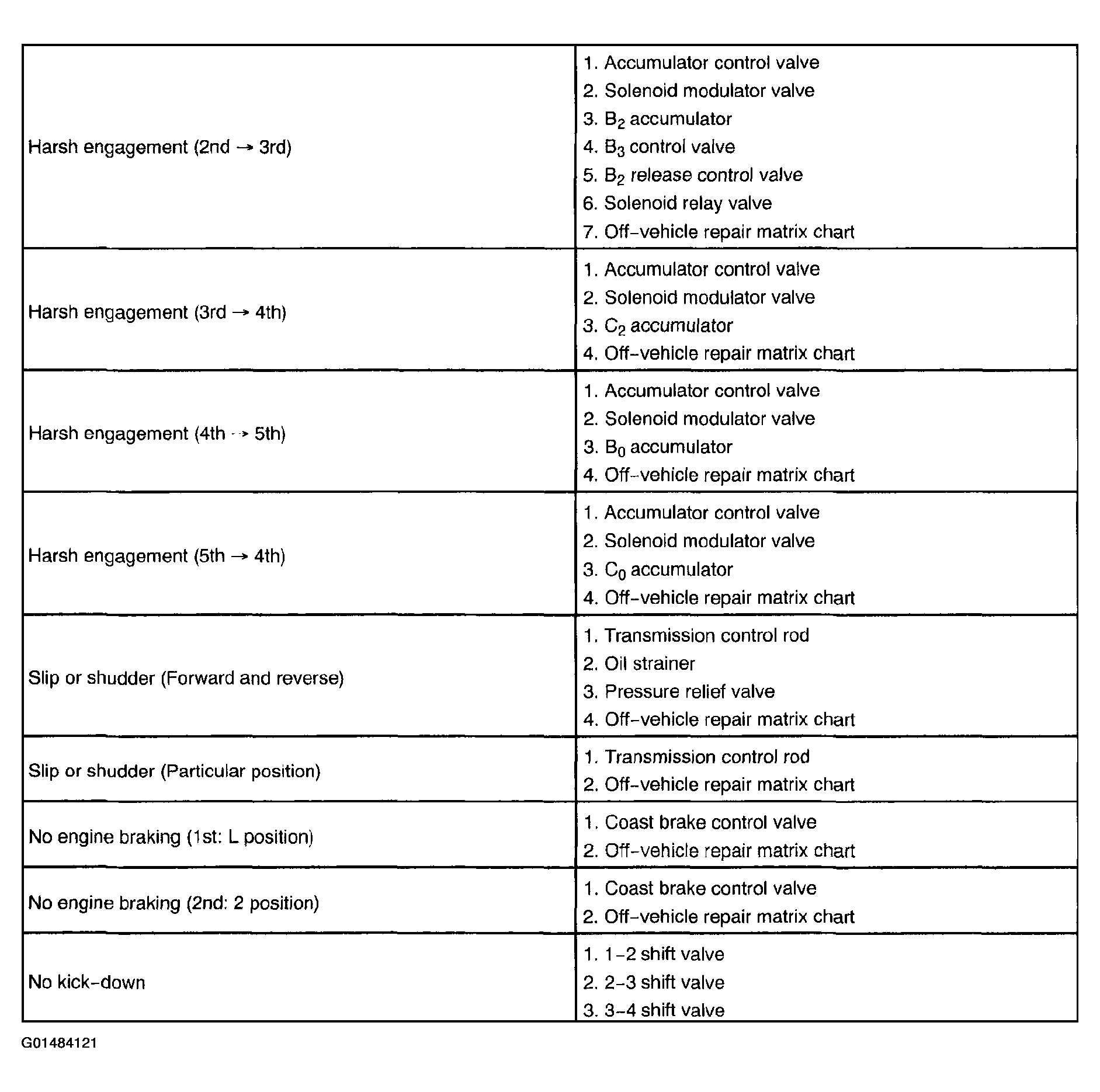

Fig 2: Chapter 2: On-Vehicle Repair Chart (2 Of 2)
G01484121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
